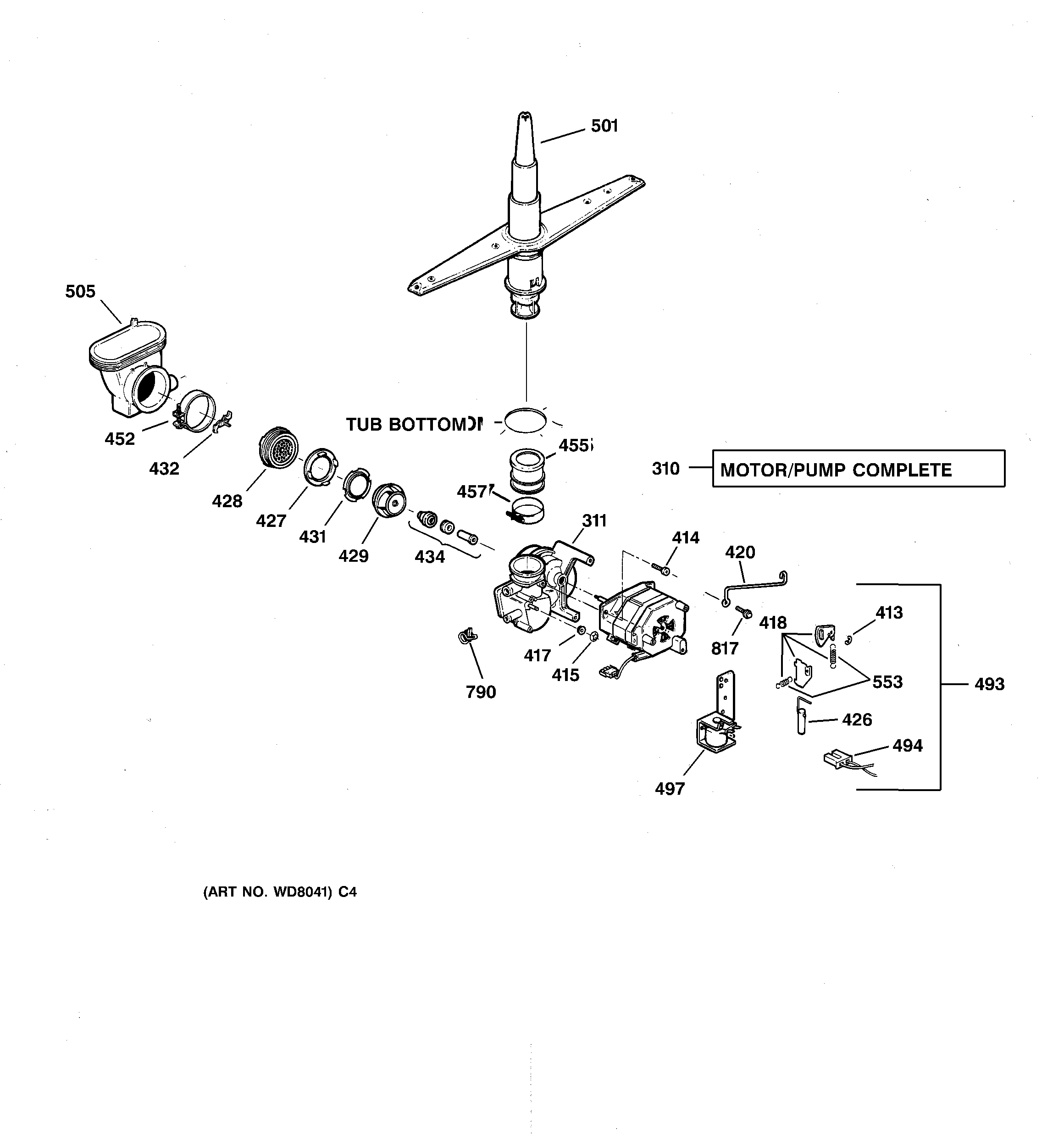

GSD3735D01WW MOTOR-PUMP MECHANISM

GSD3735D01WW MOTOR-PUMP MECHANISM

Written by

in

GSD3735D01WW MOTOR-PUMP MECHANISM

Products

PositionProduct
310WD26X10013 GE Dishwasher Motor and Pump Assembly
311WD19X10020 GE Dishwasher Pump Housing
413WD3X487D GE Dishwasher Retainer Package
414WD2X444 GE Dishwasher Mechanical Screw
415WR2X7054 GE Refrigerator Push-On Nut
417WD8X181 GE Dishwasher Pump Gasket
418GEN WD35X0192
420GEN WD01X1482
426ARMATURE&LNK
427GEN WD12X0354
428GEN WD12X10018
429GEN WD19X10014
431GEN WD01X1341
432GEN WD01X10018
434GEN WD19X10002
452WD1X1392 GE Dishwasher Sump Clamp
455WD18X214 GE Dishwasher Pump to Wash Arm Rubber Connector
457WD1X1376 GE Dishwasher Clamp
493WD21X10060 GE Dishwasher Drain Solenoid Kit and Bracket
494WD1X1459 GE Dishwasher Insulation Housing
497BRACKET & SOLENOID
501WD22X155 GE Dishwasher Spray Arm with Hub & Tower
505WD18X213 GE Dishwasher Inlet Sump Housing
553WD3X721 GE Dishwasher Spring Set
790WD01X10065 GE Dishwasher Hose Clamp
790WH1X2036 GE UNIX Clamp
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
