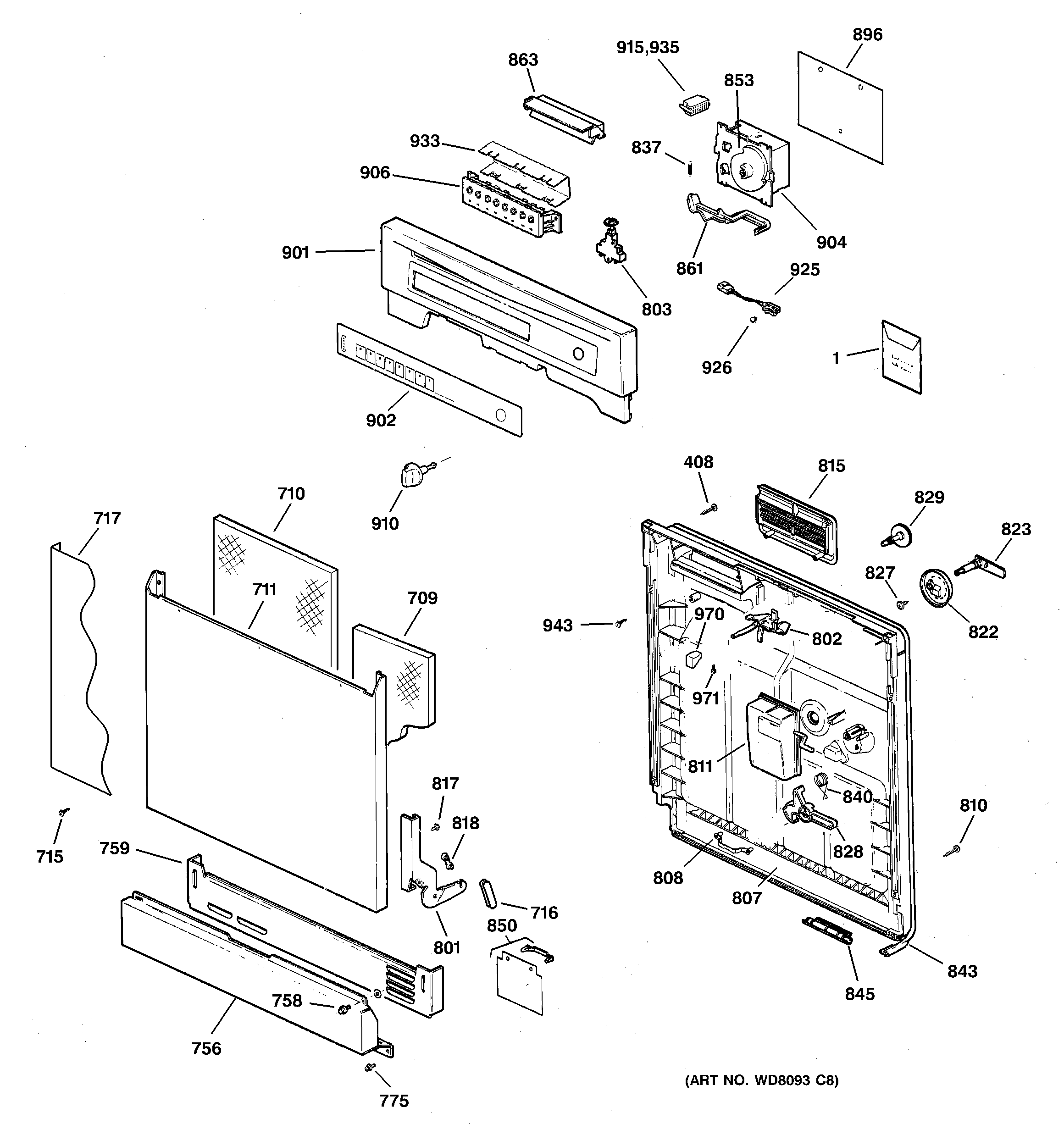

GSD4060J00SS ESCUTCHEON & DOOR ASSEMBLY

GSD4060J00SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD4060J00SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30215
1GEN 49-55000
1PM SHEET MINI MANUAL
408GEN WD02X0296
709GEN WD01X10084
710GEN WD01X10083
711WD31X10024 GE Dishwasher Black Front Panel
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10155
756PANEL ACCESS ASM
758GEN WD02X10056
759WD27X10068 GE Dishwasher Toe Panel Kit
775WD2X5166 GE Dishwasher Screw
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
802WD13X10003 GE Dishwasher Latch Assembly
803GEN WD06X10003
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X0338
853GEN WD16X10008
861WD12X324 GE Dishwasher Lever
863VENT ASM
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X10303
901GEN WD34X10937
902GEN WD34X10938
904WD21X10200 GE Dishwasher Timer
906GEN WD21X10176
910GEN WD09X10022
915GEN WD01X1432
925GEN WD06X10004
926GEN WD01X10069
933WD12X10154 GE Dishwasher Switch Cover
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
971GEN WZ02X0045
