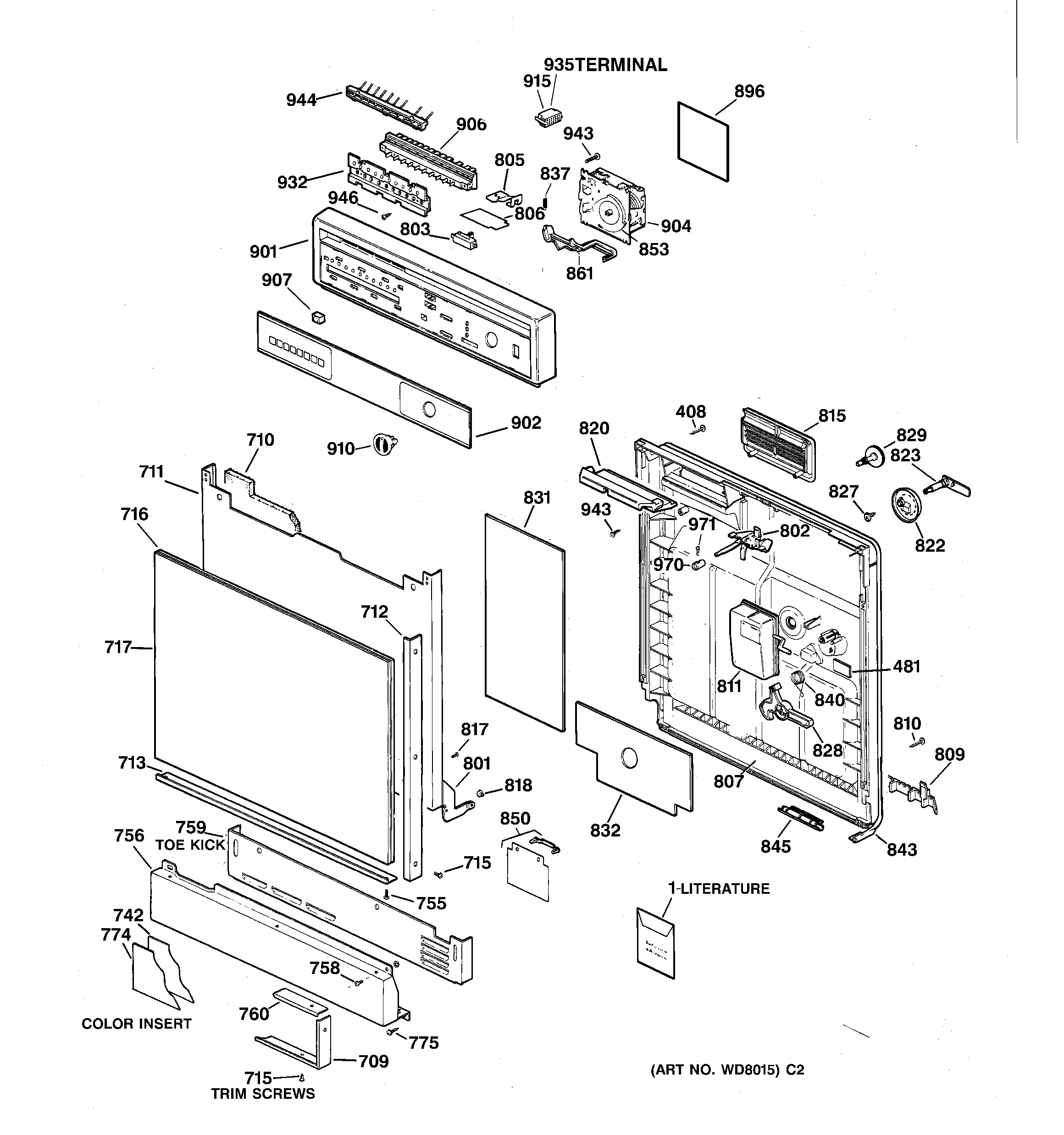

GSD4130Y73WW ESCUTCHEON & DOOR ASSEMBLY

GSD4130Y73WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD4130Y73WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30106
1GEN 49-5789
1GEN 31-3071
408GEN WD02X0296
481GEN WD01X1348
709GEN WD34X0974
710GEN WD01X10001
711GEN WD31X0313
712GEN WD34X0959
713GEN WD34X0964
715WD2X433 GE Dishwasher Trim Screw
716INSULATOR DOOR PNL INSRT
717GEN WD27X0497
742INSULATOR SERV PNL INSRT
755WD2X430 GE Dishwasher Screw
756PANEL ACCESS SCR WH
758WD2X323D GE Dishwasher Screw Package
759TOEKICK ASM WH
760GEN WD34X0969
774GEN WD27X0520
775SCREW 10-16X5/8 HXP WH
775WD2X5166 GE Dishwasher Screw
801ARM HINGE COMPLETE – RH
801GEN ARM HINGE COMPLETE – LH
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807GEN WD31X0303
809GEN WD31X0312
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
831GEN WD01X1468
832GEN WD01X1469
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
845WD08X10015 GE Dishwasher Gasket Insert
850GEN WD12X10001
853GEN WD16X0322
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901ESCUTCHEON INSERT ASM
901GEN WD34X1228
902GEN WD34X1362
904GEN WD21X0797
906GEN WD21X0800
907GEN WD09X0350
910GEN WD09X0359
915GEN WD01X1433
915GEN WD01X1432
932GEN WD12X0434
935GEN WD01X1434
943WZ5X219D GE Screw Package
944GEN WD06X0249
946GEN WD02X0437
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
