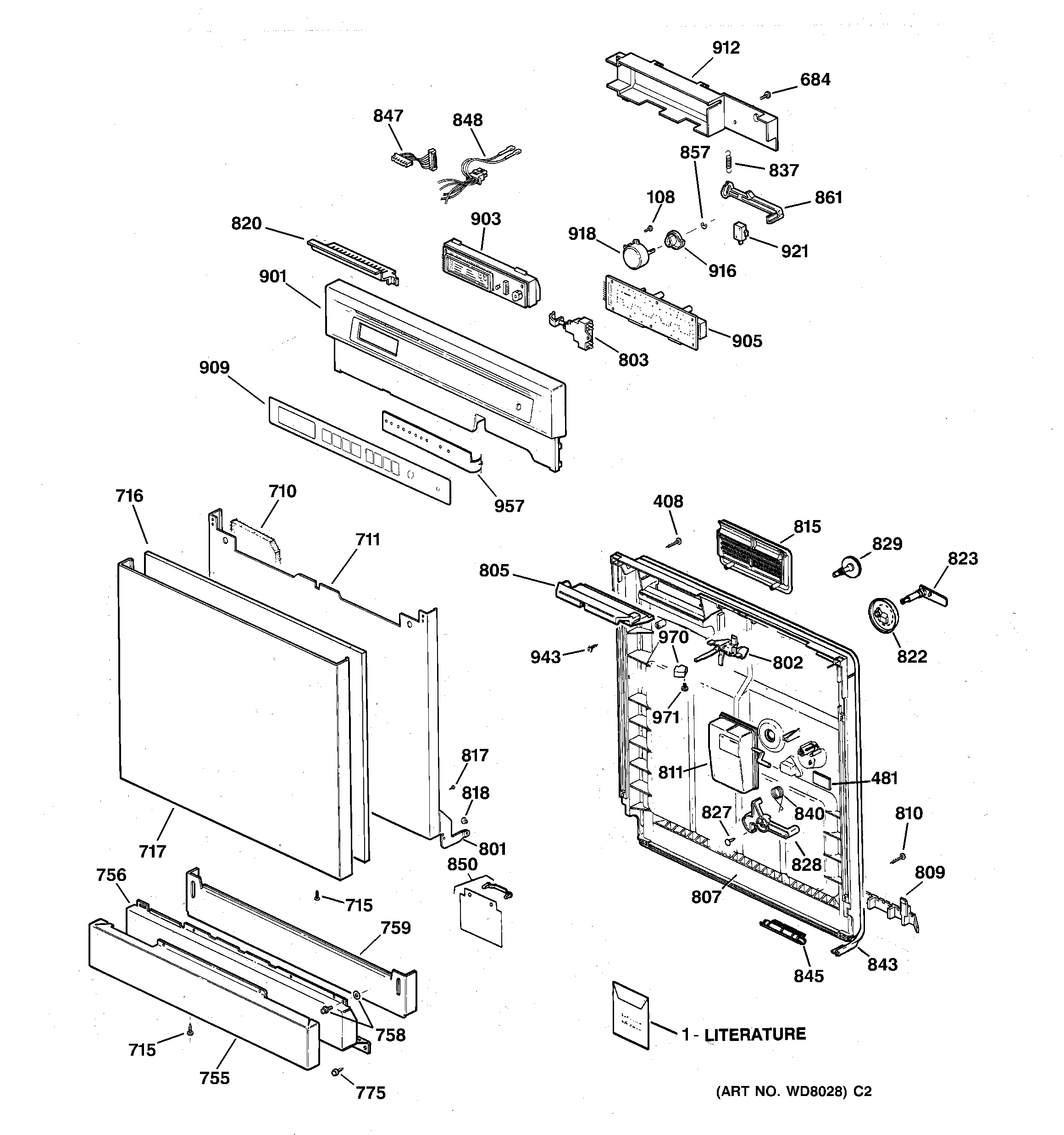

GSD4230X73WW ESCUTCHEON & DOOR ASSEMBLY

GSD4230X73WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD4230X73WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5791
1GEN 31-3069
1GEN 31-30106
108WR1X1718 GE Screw
408GEN WD02X0296
481GEN WD01X1348
684SCREW
710GEN WD01X10001
711GEN WD31X0313
715WD2X433 GE Dishwasher Trim Screw
716GEN WD01X1481
717GEN WD27X0557
755GEN WD27X0558
756PANEL ACCESS SCR WH
758WD2X323D GE Dishwasher Screw Package
759TOEKICK ASM WH
775SCREW 10-16X5/8 HXP WH
775WD2X5166 GE Dishwasher Screw
801GEN ARM HINGE COMPLETE – LH
801ARM HINGE COMPLETE – RH
802GEN WD13X0069
803WD06X10002 GE Dishwasher Intermittent Switch
805GEN WD01X1489
807GEN WD31X0303
809GEN WD31X0312
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
820WD1X1490 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828GEN WD16X0318
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
845WD08X10015 GE Dishwasher Gasket Insert
848GEN WD12X0444
850GEN WD12X10001
857GEN WD12X0192
861WD12X436 GE Dishwasher Timer Lever
901ESCUTCHEON ASM. P/S
903GEN WD21X0779
905GEN WD21X0771
909GEN WD34X1196
912GEN WD12X0437
916GEN WD16X0319
918WD26X80 GE Dishwasher Motor
921WD21X767 GE Dishwasher Sensor Switch
943WZ5X219D GE Screw Package
957GEN WD21X0768
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
