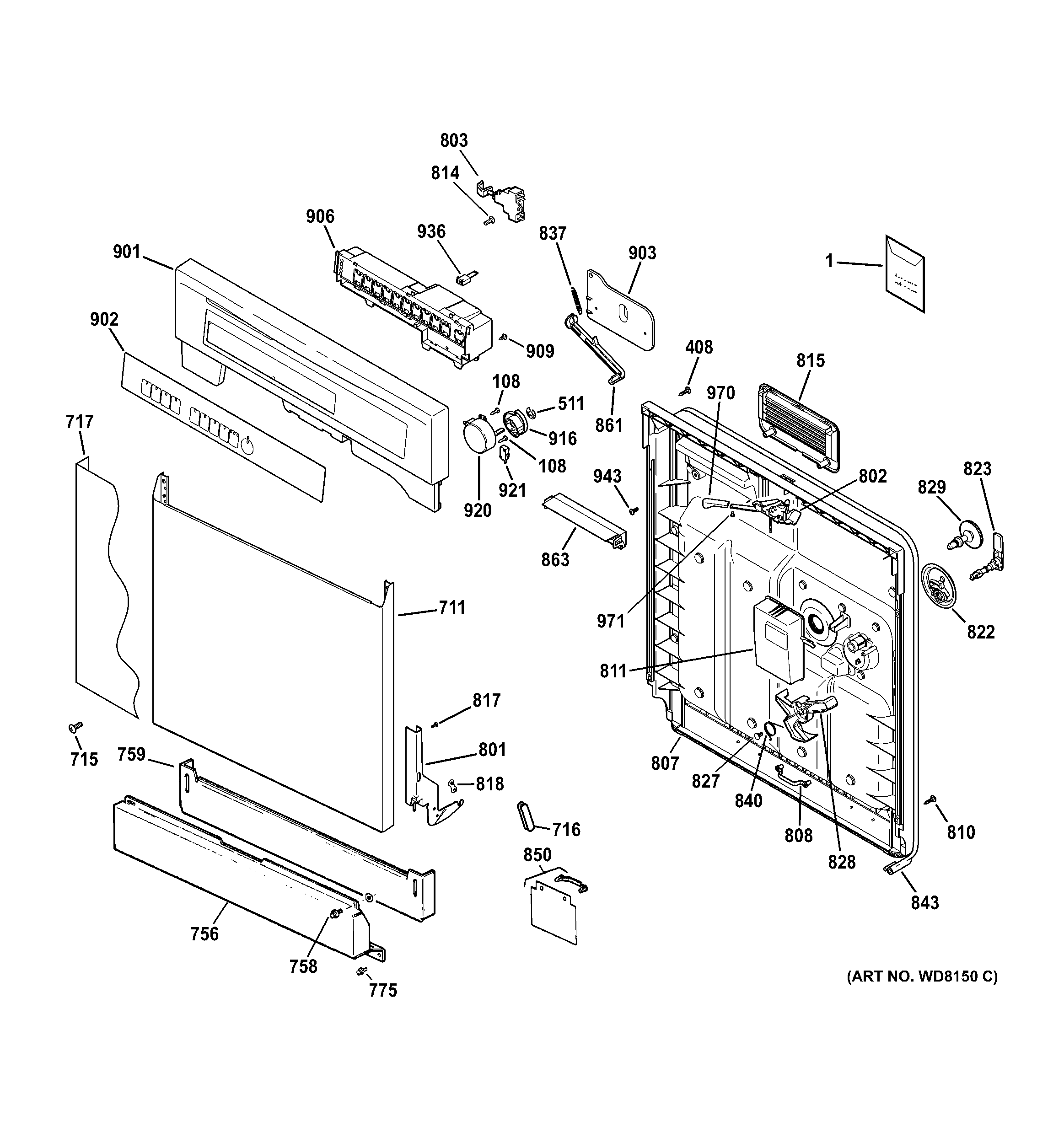

GSD4860J01SS ESCUTCHEON & DOOR ASSEMBLY

GSD4860J01SS ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD4860J01SS ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30576
1GEN 31-30515
1GEN 31-30455
1GEN 49-5962
1GEN 49-5983
108WR1X1718 GE Screw
408GEN WD02X0296
511WD2X438 GE Dishwasher E-Ring
711WD31X10026 GE Dishwasher Long Front Panel
711WD31X10025 GE Dishwasher Front Panel
711WD31X10024 GE Dishwasher Black Front Panel
711GEN WD31X10022
715WD2X433 GE Dishwasher Trim Screw
715WD2X434 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10078
717GEN WD27X10155
717WD27X10255 GE Dishwasher Long Front Cover
717WD27X10254 GE Dishwasher Long Front Cover
756WD27X10225 GE Dishwasher Finished Access Panel
756WD27X10223 GE Dishwasher Access Panel Finished Black
756WD27X10222 GE Dishwasher Finished Access Panel CC
758WD02X10054 GE Dishwasher Screw 8-32
758GEN WD02X10056
759WD27X10068 GE Dishwasher Toe Panel Kit
759WD27X10066 GE Dishwasher Toe Panel Kit
759WD27X10072 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775GEN WD02X10127
801GEN WD14X10007
801WD14X10029 GE Dishwasher Left Hand Arm Hinge
801WD14X10030 GE Dishwasher Right Hand Arm Hinge
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
814GEN WD02X10104
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
861WD12X436 GE Dishwasher Timer Lever
863VENT ASM
901GEN WD34X11023
901GEN WD34X11022
901GEN WD34X10997
901GEN WD34X10996
901GEN WD34X11020
901GEN WD34X11019
902GEN WD34X11018
902GEN WD34X11021
902GEN WD34X10819
903WD12X10182 GE Dishwasher Cover Detergent TRIP MEC
906WD21X22296 GE Dishwasher Kit WD21X10254 †’ Dishwasher Kit
909GEN WD02X10125
916GEN WD16X0319
920WD26X80 GE Dishwasher Motor
921WD21X767 GE Dishwasher Sensor Switch
936PLUG ASM MODEL SELECTOR
943WZ5X219D GE Screw Package
970WD9X351 GE Latch Knob
970WD9X352 GE Dishwasher HN Latch Knob
970WD09X10020 GE Dishwasher Knob Latch Handle
971GEN WZ02X0045
