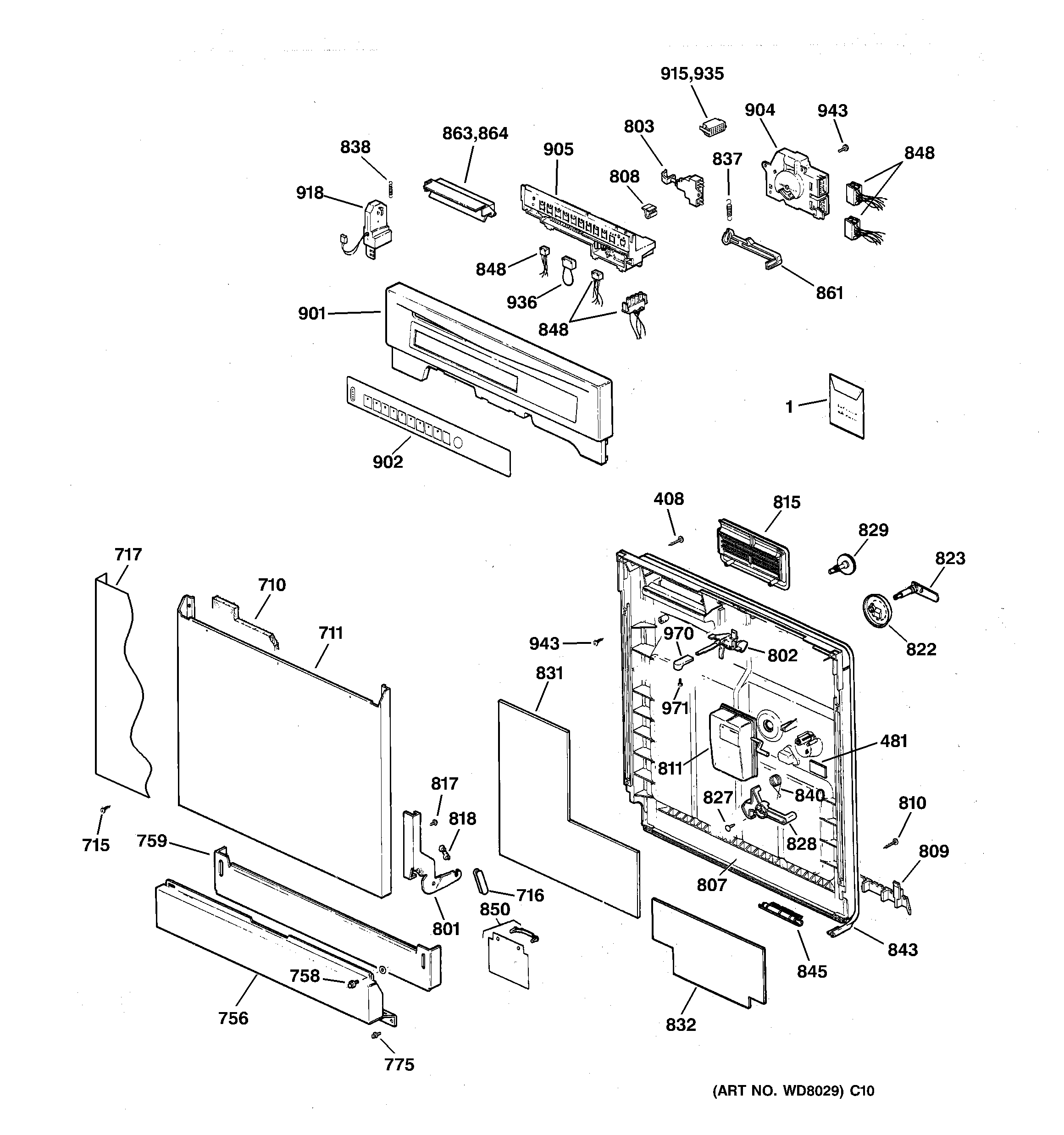

GSD5112F01AA ESCUTCHEON & DOOR ASSEMBLY

GSD5112F01AA ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD5112F01AA ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5875
1GEN 31-30329
1GEN 31-30513
408GEN WD02X0296
481GEN WD01X10016
710GEN WD01X10019
711GEN WD31X10007
715WD2X434 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10048
756GEN WD27X10031
758WD02X10054 GE Dishwasher Screw 8-32
759TOEKICK ASM AD
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10007
801GEN WD14X10008
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808WR2X4039 GE Refrigerator Clamp
809GEN WD31X0312
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
831GEN WD01X10025
832GEN WD01X1469
837GEN WD03X0749
838GEN WD03X0776
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
848GEN WD21X10025
850GEN WD12X0338
861GEN WD12X10019
863VENT ASM
864GEN WD12X10021
901GEN WD34X10031
901GEN WD34X10342
902GEN WD34X10344
904GEN WD21X10018
905GEN WD21X10061
915GEN WD01X1433
915GEN WD01X1432
918GEN WD21X10022
935GEN WD01X1434
936HARNESS
943WZ5X219D GE Screw Package
970GEN WD09X0348
971GEN WZ02X0045
