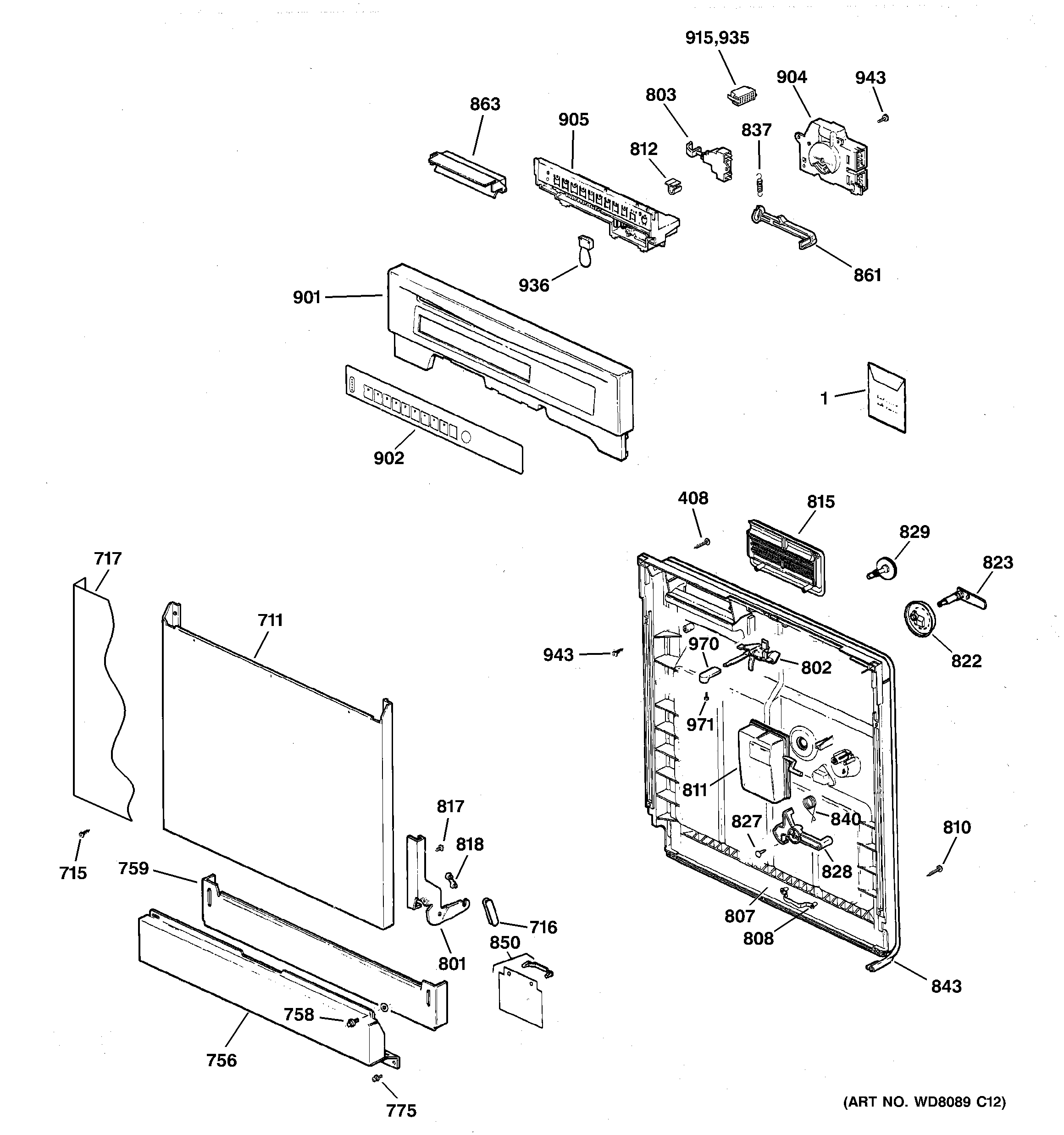

GSD5300G03WW ESCUTCHEON & DOOR ASSEMBLY

GSD5300G03WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD5300G03WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5922
1GEN 31-30394
1GEN 31-30515
408GEN WD02X0296
711WD31X10025 GE Dishwasher Front Panel
715WD2X433 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717WD27X10254 GE Dishwasher Long Front Cover
756WD27X10225 GE Dishwasher Finished Access Panel
758WD02X10054 GE Dishwasher Screw 8-32
759WD27X10066 GE Dishwasher Toe Panel Kit
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD2X5166 GE Dishwasher Screw
801GEN WD14X10008
801GEN WD14X10007
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808GEN WD01X10110
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
812WR2X4039 GE Refrigerator Clamp
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
850GEN WD12X0338
861GEN WD12X10019
863VENT ASM
901GEN WD34X10786
901ESCUTCHEON WH
902GEN WD34X10785
904GEN WD21X10101
905GEN WD21X10100
915GEN WD01X1433
915GEN WD01X1432
935GEN WD01X1434
936GEN WD21X10158
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
