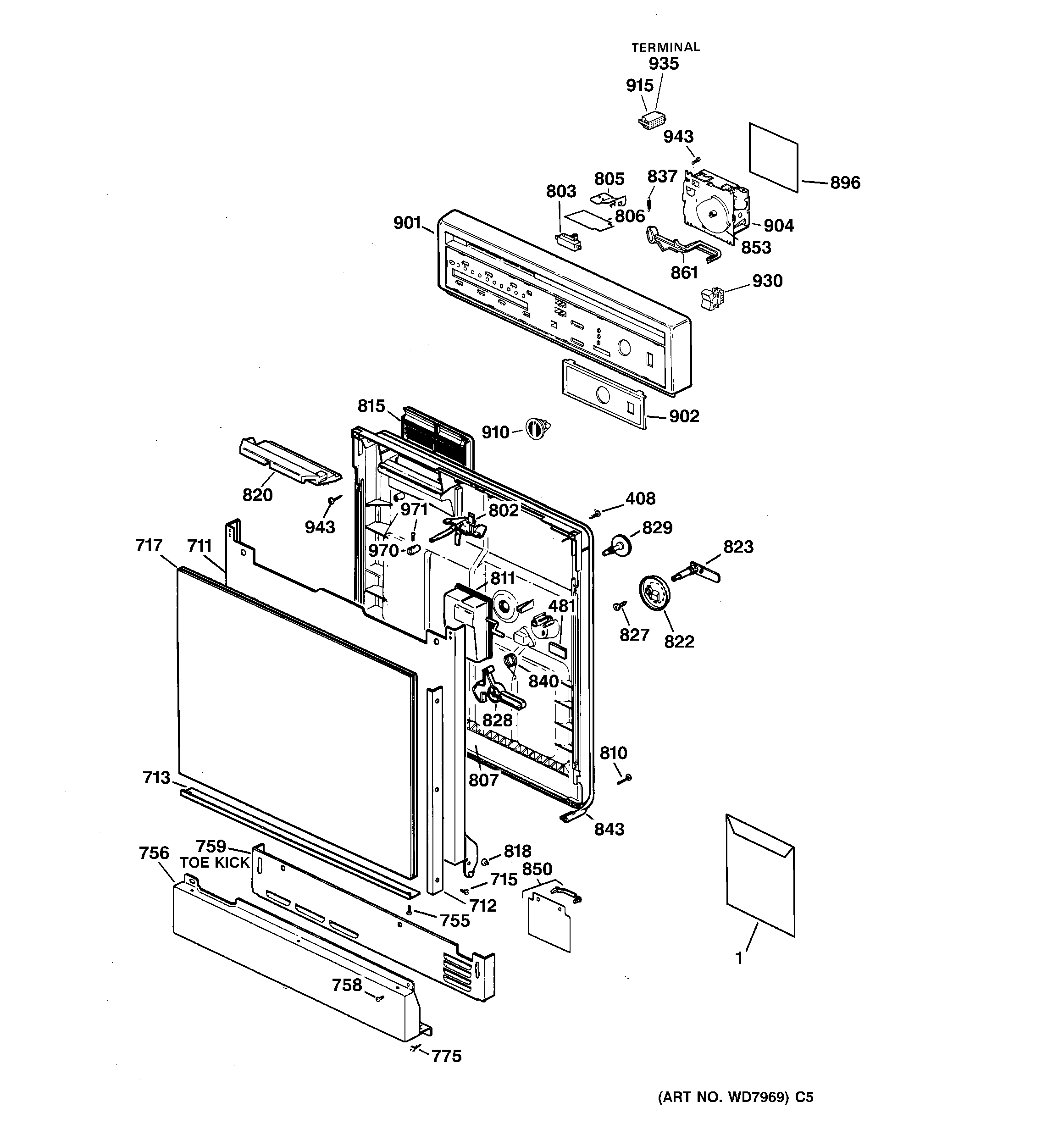

GSD530X-72WW ESCUTCHEON & DOOR ASSEMBLY

GSD530X-72WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD530X-72WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30101
1GEN 31-3045
1GEN 49-5780
408GEN WD02X0296
481GEN WD01X1348
711GEN WD31X0304
712GEN WD34X0962
713GEN WD34X0967
715WD2X433 GE Dishwasher Trim Screw
717GEN WD27X0497
755WD2X430 GE Dishwasher Screw
756PANEL ACCESS SCR WH
758WD2X323D GE Dishwasher Screw Package
759GEN WD27X0542
775SCREW 10-16X5/8 HXP WH
775WD2X5166 GE Dishwasher Screw
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807GEN WD31X0303
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
850GEN WD12X0338
853GEN WD16X0308
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
896GEN WD01X1476
901GEN WD34X1214
902GEN WD34X1215
904WD21X776 GE Dishwasher Timer
910WD9X353 GE Dishwasher Timer Knob
915GEN WD01X1432
930SWITCH ROCKER
935GEN WD01X1434
943WZ5X219D GE Screw Package
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
