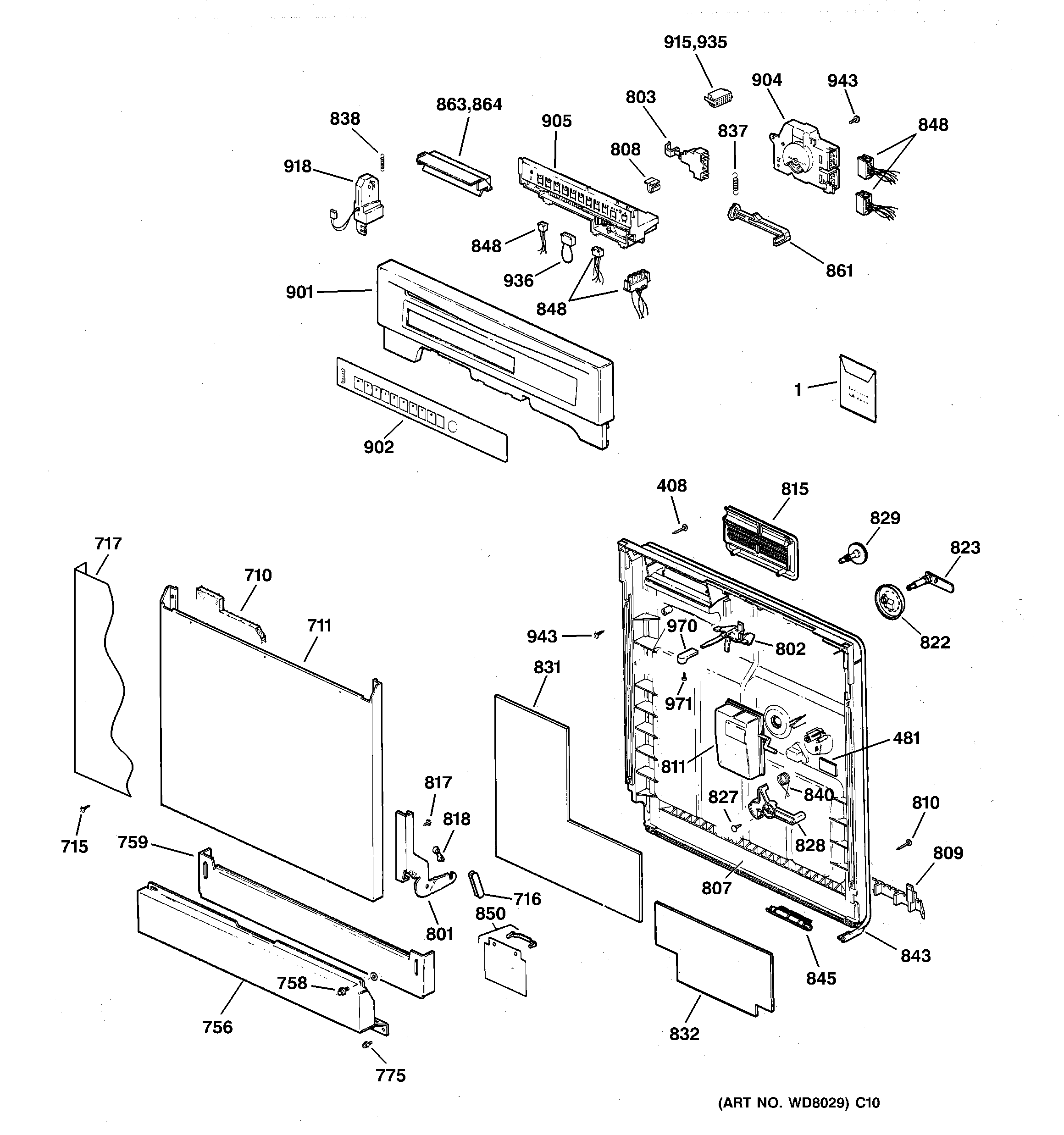

GSD5930D00WW ESCUTCHEON & DOOR ASSEMBLY

GSD5930D00WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD5930D00WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 31-30506
1GEN 31-30344
1GEN 49-5892
1GEN 31-30310
1GEN 49-5864
408GEN WD02X0296
481GEN WD01X10016
710GEN WD01X10019
711WD31X10024 GE Dishwasher Black Front Panel
711WD31X10026 GE Dishwasher Long Front Panel
711GEN WD31X10007
711WD31X10025 GE Dishwasher Front Panel
715WD2X434 GE Dishwasher Trim Screw
716WD14X10009 GE Dishwasher Hinge Link Arm
717GEN WD27X10052
717WD27X10255 GE Dishwasher Long Front Cover
717GEN WD27X10048
717WD27X10254 GE Dishwasher Long Front Cover
756GEN WD27X10051
756WD27X10223 GE Dishwasher Access Panel Finished Black
756WD27X10225 GE Dishwasher Finished Access Panel
756GEN WD27X10031
758WD02X10054 GE Dishwasher Screw 8-32
758GEN WD02X10056
759TOEKICK ASM AD
759GEN WD34X10287
759GEN WD27X10018
759GEN WD27X10020
775WD2X5166 GE Dishwasher Screw
775WD02X10126 GE Dishwasher Screw 10-16 HXW 3/8"
775WD02X10057 GE Dishwasher Screw 10-16 x 1
801GEN WD14X10008
801GEN WD14X10007
802WD13X10003 GE Dishwasher Latch Assembly
803WD06X10002 GE Dishwasher Intermittent Switch
807WD31X10004 GE Door Inner Panel
808WR2X4039 GE Refrigerator Clamp
809GEN WD31X0312
810WD02X10106 GE Dishwasher Screw 8-18 AB TR 7/8"
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD02X10141 GE Dishwasher Screw 10-32 TT Hex
817WD1X550 GE Dishwasher Screw
818GEN WD12X10025
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
831GEN WD01X10025
832GEN WD01X1469
837GEN WD03X0749
838GEN WD03X0776
840WD3X764 GE Dishwasher Detergent Door Spring
843WD08X10057 GE Dishwasher Door Gasket
845WD08X10015 GE Dishwasher Gasket Insert
848GEN WD21X10025
850GEN WD12X0338
861GEN WD12X10019
863VENT ASM
864GEN WD12X10021
901GEN WD34X10284
901GEN WD34X10286
901GEN WD34X10280
901GEN WD34X10283
901GEN WD34X10279
902GEN WD34X10278
902GEN WD34X10285
902GEN WD34X10282
902GEN WD34X10281
904GEN WD21X10018
905GEN WD21X10082
915GEN WD01X1433
915GEN WD01X1432
918GEN WD21X10022
935GEN WD01X1434
936GEN WD21X10067
943WZ5X219D GE Screw Package
970WD09X10020 GE Dishwasher Knob Latch Handle
970GEN WD09X0348
970WD9X352 GE Dishwasher HN Latch Knob
970WD9X351 GE Latch Knob
971GEN WZ02X0045
