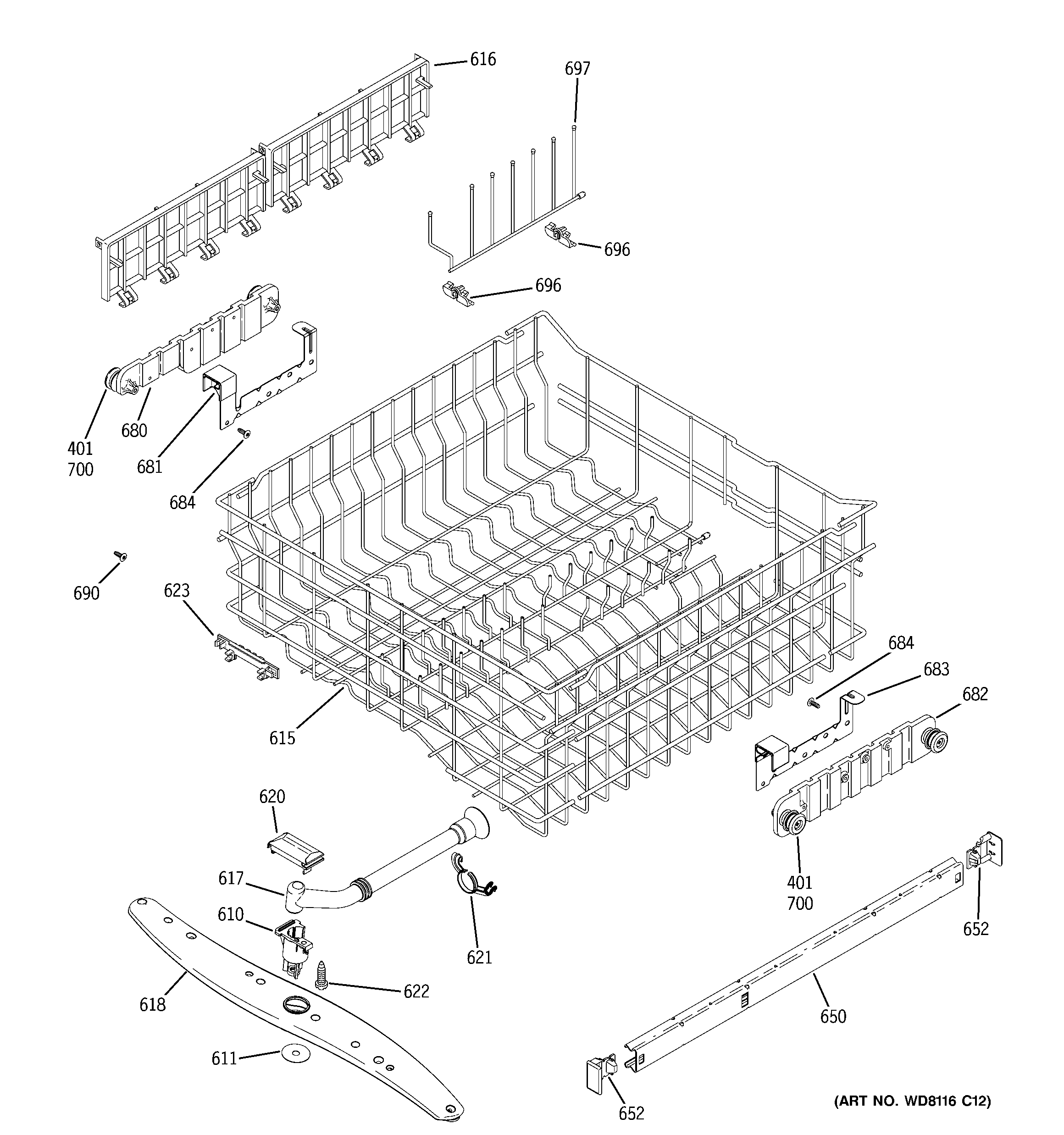

GSD6900J15WW UPPER RACK ASSEMBLY

GSD6900J15WW UPPER RACK ASSEMBLY

Written by

in

GSD6900J15WW UPPER RACK ASSEMBLY

Products

PositionProduct
401WD3X767 GE Dishwasher Washer
610WD12X10352 GE Support Spray Arm
611WD02X10169 GE Dishwasher Middle Spray Arm Bearing/Screw B-16 Hxw 1/2
615GEN WD28X10154
616GEN WD28X10176
617WD12X10147 GE Dishwasher Mid Spray Conduit
618WD22X10046 GE Dishwasher Middle Spray Arm Assembly
620WD21X10391 GE Breakwater Left Switch
621GEN WD12X10054
622WD02X10067 GE Dishwasher Stainless Steel Screw 8-16 HXW
623GEN WD12X10062
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
680GEN WD12X10149
681GEN WD01X10231
682GEN WD12X10150
683GEN WD01X10232
684WD02X10111 GE Dishwasher Stainless Steel 8-18 B Porcelain Screw 1/2
690GEN WD02X10113
696GEN WD28X10063
697GEN WD28X10139
700WD35X20994 GE Dishwasher Upper Dish Rack Kit
