GSD725S-40BA 1

GSD725S-40BA 1

Written by

in

GSD725S-40BA 1

Products

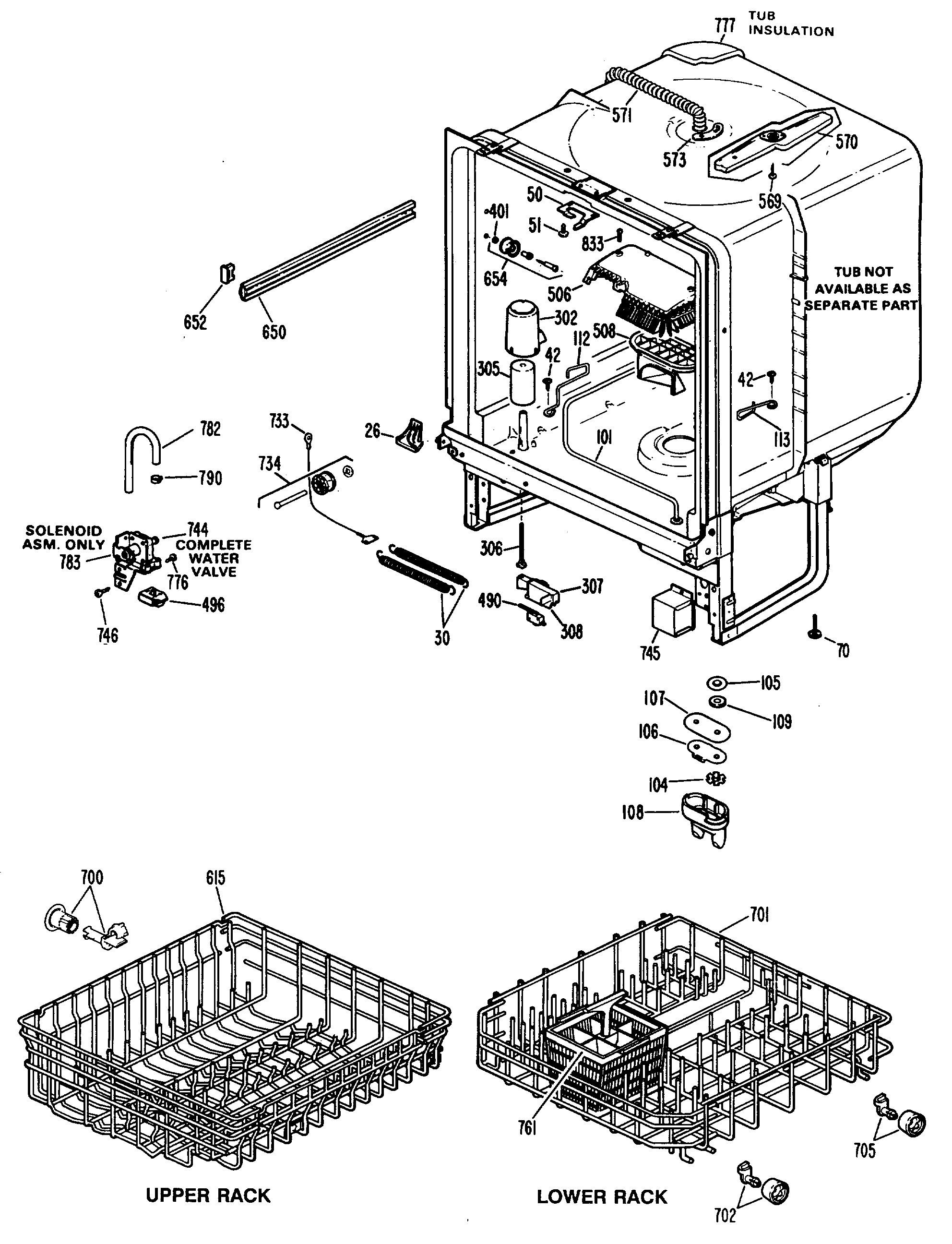

PositionProduct
25INSULATION
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
26WD8X227 GE Dishwasher Right Hand Corner Seal
30GEN WD01X1354
30GEN WD01X1333
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
50WD13X67 GE Dishwasher Latch Keeper
51GEN WZ02X0492
70WD2X320 GE Dishwasher Leveling Leg
101WD05X26780 GE Dishwasher Heating Element Assembly
104GEN WD01X1289
105GEN WD01X1168
106GEN WD01X1350
107GEN WD01X1351
108GEN WD01X1352
109GEN WD08X0225
112GEN WD01X1431
113GEN WD01X1430
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
401WD3X767 GE Dishwasher Washer
490WD21X479 GE Dishwasher Switch
496GEN WD12X0349
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
569GEN WD01X1297
570WD28X10103 GE Spray Arm Assembly
571GEN WD24X0214
573GEN WD01X1007
615WD28X31818 GE Dishwasher Rack Service Kit
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701RACK LOWER & ROLLER TM
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
733WD7X14 GE Dishwasher Door Cable Assembly
734GEN WD35X0183
744WD15X93 GE Dishwasher Water Inlet Fill Valve
745JUNCTION BOX COVER
746WD2X248 GE Dishwasher Screw
761SILVERWARE BASKET
782WD18X202 GE Dishwasher Fill Hose
808WD2X295 GE Refrigerator Screw
2329WH1X2036 GE UNIX Clamp
