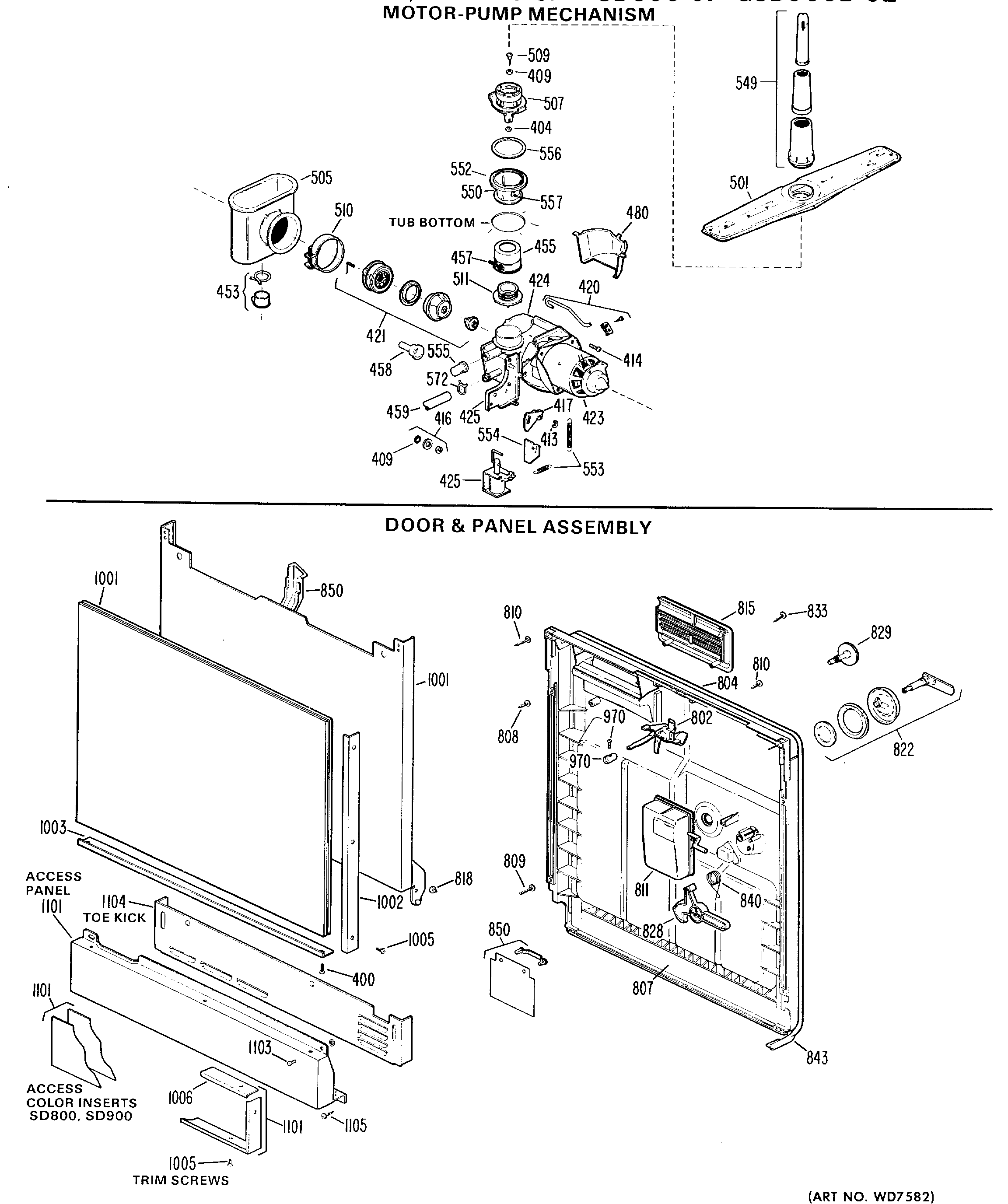

GSD800-01 DOOR & PANEL ASSEMBLY

GSD800-01 DOOR & PANEL ASSEMBLY

Written by

in

GSD800-01 DOOR & PANEL ASSEMBLY

Products

PositionProduct
400WZ4X44D GE Screw Package
404WD3X767 GE Dishwasher Washer
409GEN WD03X0766
413WD3X487D GE Dishwasher Retainer Package
414GEN WD02X5183
416WD8X181 GE Dishwasher Pump Gasket
417GEN WD12X0201
420GEN WD01X1330
421GEN WD17X0057
423WD26X10013 GE Dishwasher Motor and Pump Assembly
424GEN WD19X0042
425GEN WD12X0350
425WD21X802 GE Dishwasher Drain Solenoid
425GEN WD01X1282
453PUMP CONNECTOR
455GEN WD18X0193
457WD1X1376 GE Dishwasher Clamp
458GEN WD12X0106
459GEN WD24X0132
480GEN WD12X0339
501GEN WD22X0123
505WD12X418 GE Dishwasher Sump Cap
507GEN WD22X0221
509GEN WD03X0765
510WD1X1392 GE Dishwasher Sump Clamp
511SPRAY ARM SUPPORT NUT
549GEN WD22X0124
550GEN WD22X0122
552WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
553WD3X721 GE Dishwasher Spring Set
554GEN WD01X1283
557CHECK VALVE
572WH1X2036 GE UNIX Clamp
802GEN WD13X0066
804GEN WD01X1340
807GEN WD31X0297
809GEN WD02X0296
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818GEN WD12X0231
822WD16X297 GE Dishwasher Detachable Cup Cover
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
833WD2X295 GE Refrigerator Screw
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
850HARNESS CONDUIT
850GEN WD12X0338
970GEN WD09X5162
970GEN WZ02X0045
1001GEN WD31X0300
1001INSERT DOOR PANEL BK/HA
1001GEN WD27X0497
1002GEN WD34X0492
1003GEN WD34X0552
1005GEN WD01X1313
1006TRIM TOP SERV PANEL
1101GEN WD27X0502
1101GEN WD27X0503
1103WD2X322 GE Dishwasher Screw 8-18 x 7/8
1104GEN WD27X0504
1105SCREW 10-16X5/8
