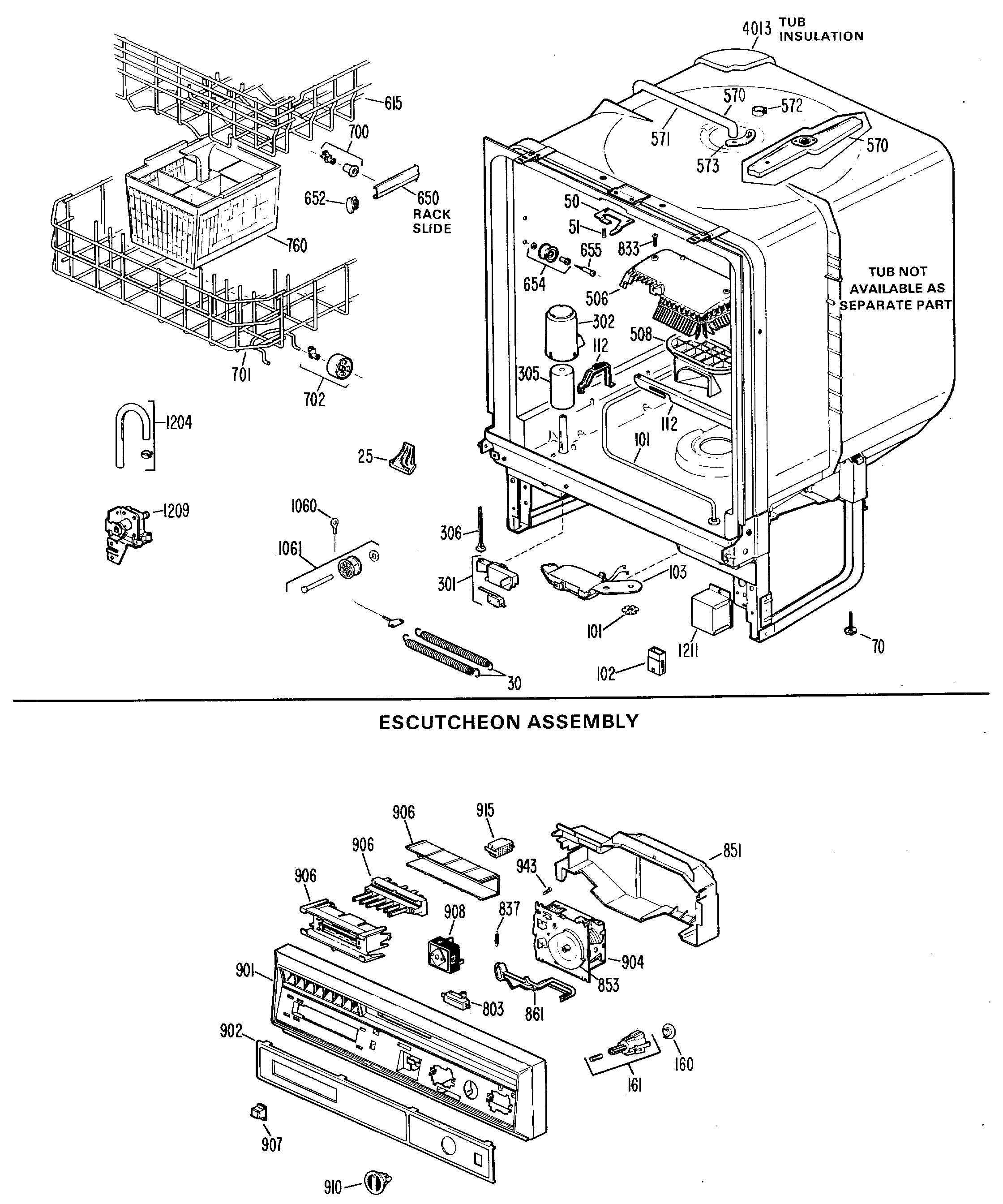

GSD900D-02 ESCUTCHEON ASSEMBLY

GSD900D-02 ESCUTCHEON ASSEMBLY

Written by

in

GSD900D-02 ESCUTCHEON ASSEMBLY

Products

PositionProduct
25WD8X227 GE Dishwasher Right Hand Corner Seal
25WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
30GEN WD01X1333
39WD2X248 GE Dishwasher Screw
40WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
50WD13X67 GE Dishwasher Latch Keeper
51GEN WZ06X0127
70GEN WD02X0230
101GEN WD01X1289
101GEN WD01X1168
101GEN WD05X0060
102GEN WD12X0351
103GEN WD21X0522
112FRONT HEATER SUPPORT
112REAR HEATER SUPPORT
160GEN WD12X0341
160GEN WD21X0515
301WD21X479 GE Dishwasher Switch
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
426ARMATURE&LNK
452WD1X1392 GE Dishwasher Sump Clamp
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
570GEN WD02X5181
570WD28X10103 GE Spray Arm Assembly
571HOSE POWER SHOWER
572WH1X2036 GE UNIX Clamp
573GEN WD01X1007
650WD30X98 GE Dishwasher Slide Assembly
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
655WD12X332 GE Dishwasher Rack Roller
700GEN WD12X0118
701GEN WD28X0248
702WD12X271 GE Dishwasher Roller
702WD35X21038 GE Dishwasher Upper Rack Wheel Kit
760SILVERWARE BASKET
772SUPPORT SHELF
773WD28X31820 GE Dishwasher Upper Final Rack Assembly
803GEN WD06X0207
833WD2X295 GE Refrigerator Screw
837GEN WD03X0749
851GEN WD12X0327
861WD12X324 GE Dishwasher Lever
901GEN WD34X0581
902GEN WD34X0580
904GEN WD21X0517
906RETAINER PB SWITCH
906GEN WD21X0519
906GEN WD12X0340
907GEN WD09X0206
908GEN WD21X0437
910GEN WD09X0212
915GEN WD01X1258
943WZ5X219D GE Screw Package
1060WD7X14 GE Dishwasher Door Cable Assembly
1061GEN WD12X0336
1204WD18X202 GE Dishwasher Fill Hose
1209WD15X93 GE Dishwasher Water Inlet Fill Valve
1211GEN WZ05X0235
1211JUNCTION BOX COVER
4013INSULATION
