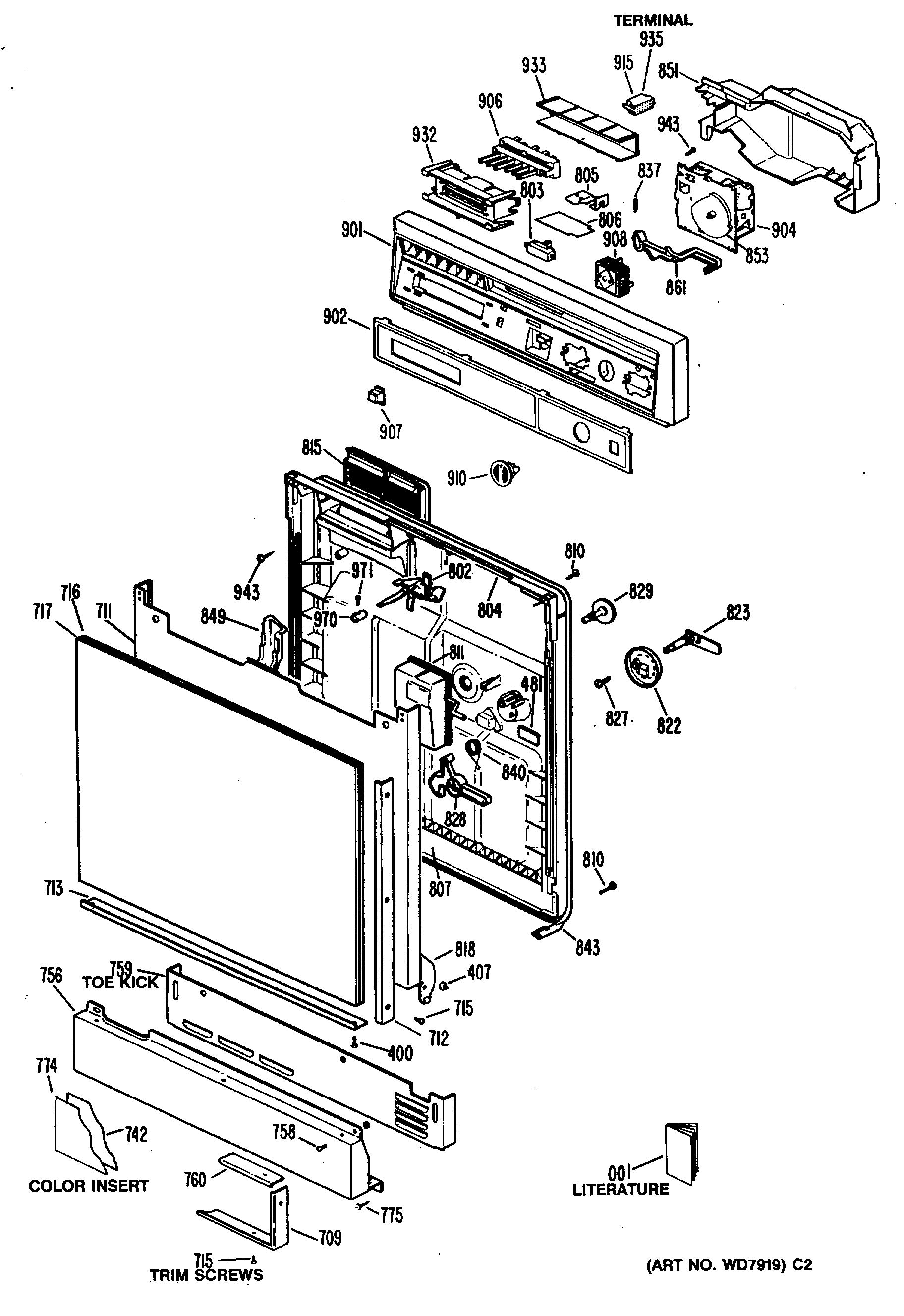

PositionProduct
1GEN 31-3588
1GEN 49-5493
1GEN 31-3503
407GEN WD03M0062
414WZ4X44D GE Screw Package
481GEN WD01X1348
709TRIM SIDE & BOT SERV PNL
711GEN WD27M0251
712TRIM SIDE DOOR
713GEN WD34M0407
715GEN WD01X1313
716INSULATOR DOOR PNL INSRT
717INSERT DOOR PANEL BK/HA
742INSULATOR SERV PNL INSRT
756PANEL ACCESS
758WD2X323D GE Dishwasher Screw Package
759GEN WD27M0252
760GEN WD34X0691
765GEN WD02M0121
774INSERT SERV PANEL BK/HA
775SCREW 10-16X5/8
802GEN WD13X0066
803WD21X10261 GE Dishwasher Interlock Switch
804GEN WD02M0161
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807WD31X10004 GE Door Inner Panel
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
818GEN WD14M0004
818GEN WD14M0003
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843GEN WD08M0014
849GEN WD12M0067
851GEN WD12X0389
853GEN WD16X0308
861WD12X324 GE Dishwasher Lever
901GEN WD34X0826
902GEN WD34X0807
904GEN WD21X0672
906GEN WD21X0675
907GEN WD09X0206
908GEN WD21X0516
910GEN WD09X0257
915GEN WD01X1258
932RETAINER PB SWITCH
933COVER PB SWITCH
935GEN WH12X0603
943WZ5X219D GE Screw Package
970GEN WD09X0260
971GEN WZ02X0045
