GSD970P-30 1

GSD970P-30 1

Written by

in

GSD970P-30 1

Products

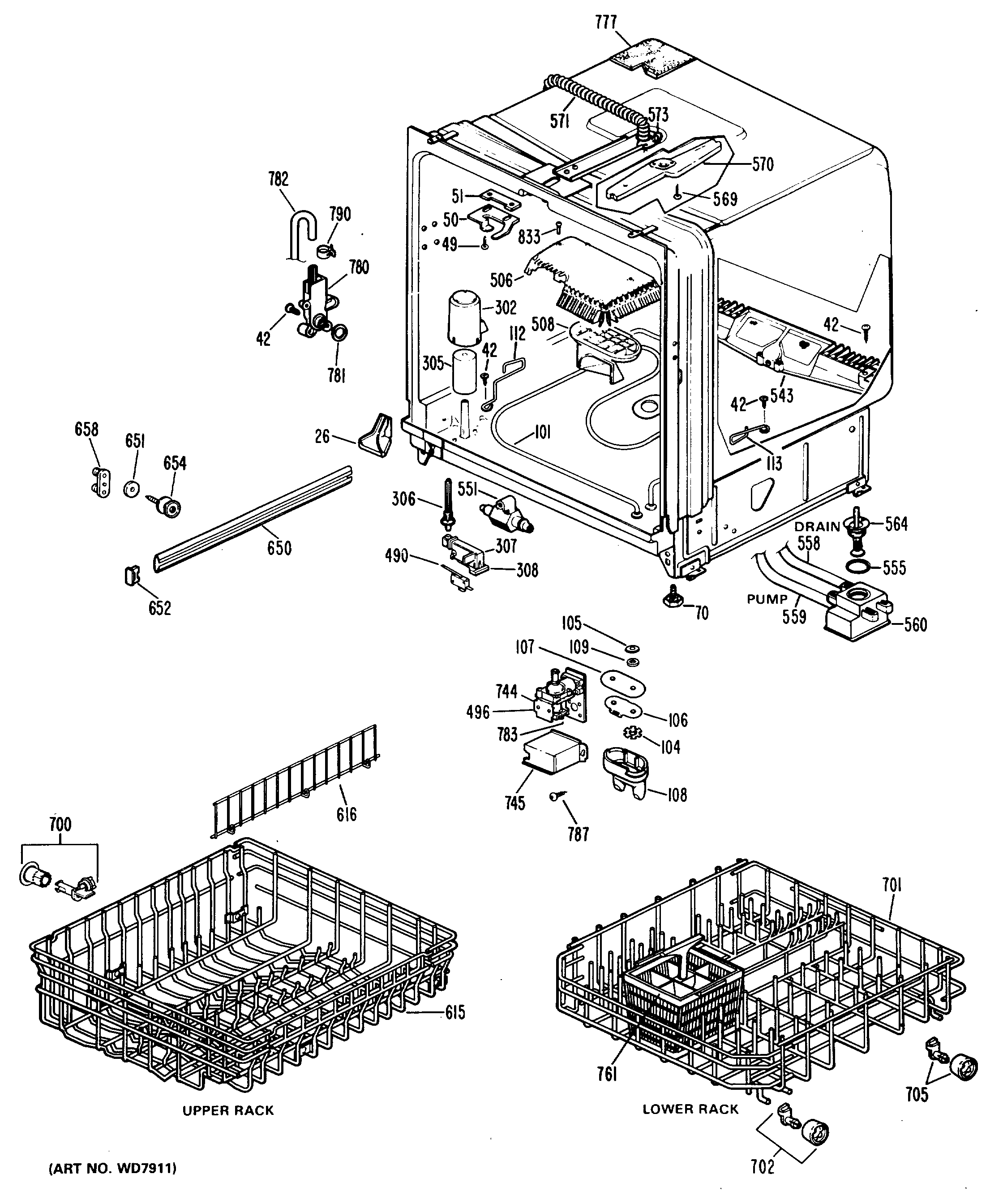

PositionProduct
26WD8X227 GE Dishwasher Right Hand Corner Seal
26WD8X228 GE Dishwasher Left Hand Tub Baffle Corner Gasket
42WD02X22736 GE Dishwasher Stainless Steel SCR10 16 AB HXW 3/4
49GEN WD03X0441
50KEEPER LATCH
51GEN WD13X0048
70GEN WD02X0280
101WD05X26780 GE Dishwasher Heating Element Assembly
104GEN WD01X1289
105GEN WD01X1168
106GEN WD01X1350
107GEN WD01X1351
108GEN WD01X1352
109GEN WD08X0225
112GEN WD01X1431
113GEN WD01X1430
302WD12X445 GE Dishwasher Float Dome
305WD12X334 GE Dishwasher Float
306WD12X335 GE Dishwasher Float Stem
307WD12X10023 GE Dishwasher Bracket
308GEN WD12X0377
490WD21X479 GE Dishwasher Switch
496GEN WD12X0349
506WD12X417 GE Dishwasher Cover
508WD12X418 GE Dishwasher Sump Cap
543FILTER FRAME ASM
551GEN WD12X0299
555GEN WD08X0219
558GEN WD24X0217
559GEN WD24X0198
560GEN WD24X0196
564WD24X10018 GE Assembly Piston and Nut
569GEN WD01X1297
570WD28X10103 GE Spray Arm Assembly
571HOSE POWER SHOWER
573GEN WD01X1007
615GEN WD28X0282
650WD30X98 GE Dishwasher Slide Assembly
651GEN WD01X1435
652WD12X10304 GE Dishwasher Rack Slide Endcap (White)
654WD12X332 GE Dishwasher Rack Roller
658GEN WD01X1436
700WD12X10327 GE Dishwasher Rack and Roller Studs 4 Pack
701RACK LOWER & ROLLER TM
702WD12X271 GE Dishwasher Roller
705WD35X21038 GE Dishwasher Upper Rack Wheel Kit
744WD15X93 GE Dishwasher Water Inlet Fill Valve
745JUNCTION BOX COVER
761SILVERWARE BASKET
777INSULATION
780GEN WD24X0191
781GEN WD08X0192
782GEN WD18X0211
787WD2X5166 GE Dishwasher Screw
790WH1X2036 GE UNIX Clamp
833WD2X295 GE Refrigerator Screw
