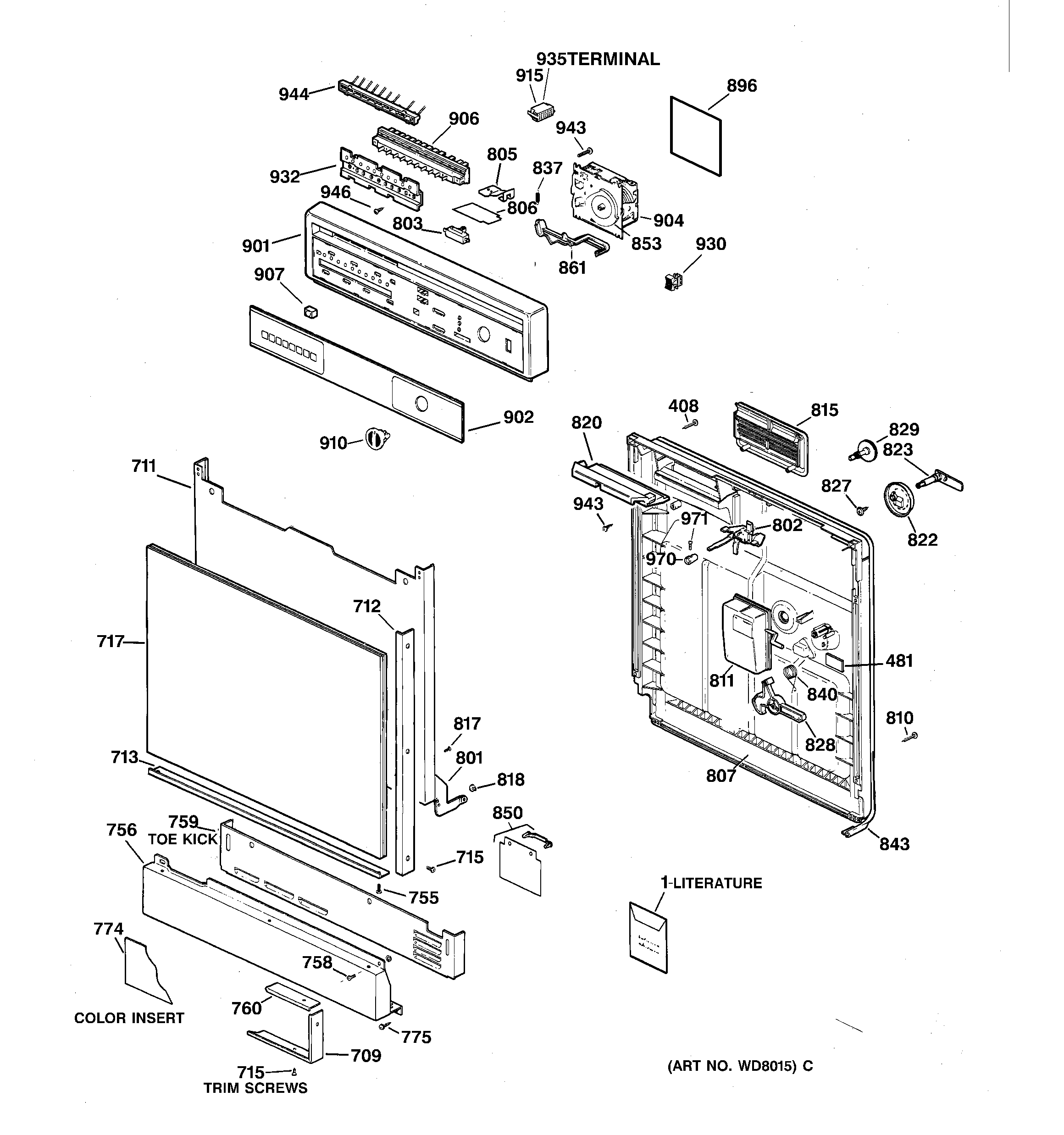

GSD980X-73WW ESCUTCHEON & DOOR ASSEMBLY

GSD980X-73WW ESCUTCHEON & DOOR ASSEMBLY

Written by

in

GSD980X-73WW ESCUTCHEON & DOOR ASSEMBLY

Products

PositionProduct
1GEN 49-5788
1GEN 31-3047
1GEN 31-30106
408GEN WD02X0296
481GEN WD01X1348
709GEN WD34X0977
711GEN WD31X0313
712GEN WD34X0962
713GEN WD34X0967
715WD2X433 GE Dishwasher Trim Screw
717GEN WD27X0497
755WD2X430 GE Dishwasher Screw
756PANEL ACCESS SCR WH
758WD2X323D GE Dishwasher Screw Package
759GEN WD27X0542
760GEN WD34X0972
774GEN WD27X0520
775WD2X5166 GE Dishwasher Screw
775SCREW 10-16X5/8 HXP WH
801ARM HINGE COMPLETE – RH
801GEN WD14X10001
802GEN WD13X0069
803WD21X10261 GE Dishwasher Interlock Switch
805WD1X1363 GE Dishwasher Leaf Switch
806WD12X22757 GE Dishwasher Switch Shield
807GEN WD31X0303
810WD2X322 GE Dishwasher Screw 8-18 x 7/8
811WD35X10346 GE Dishwasher Rinse Aid Tank Kit
815WD12X10026 GE Dishwasher Vent Assembly
817WD1X550 GE Dishwasher Screw
818GEN WD12X0231
820WD1X1467 GE Dishwasher Vent Pad
822WD16X297 GE Dishwasher Detachable Cup Cover
823WD16X313 GE Dishwasher Detergent Cup Shaft
827GEN WD02X0425
828WD16X10011 GE Dishwasher Detergent Dispenser Arm
829WD12X10284 GE Dishwasher Fill Cap
837GEN WD03X0749
840WD3X764 GE Dishwasher Detergent Door Spring
843DOOR GASKET WHITE
850GEN WD12X10001
853GEN WD16X10001
861WD12X324 GE Dishwasher Lever
896WD31X10141 GE Dishwasher Timer Cover
901GEN WD34X1228
902GEN WD34X1332
904GEN WD21X0793
906GEN WD21X0784
907GEN WD09X0350
910WD9X353 GE Dishwasher Timer Knob
915GEN WD01X1432
932GEN WD12X0434
935GEN WD01X1434
943WZ5X219D GE Screw Package
944GEN WD06X0236
946SCREW 6-22 X 13/32
970WD9X352 GE Dishwasher HN Latch Knob
971GEN WZ02X0045
