GSE20JEWHFBB FREEZER DOOR

GSE20JEWHFBB FREEZER DOOR

Written by

in

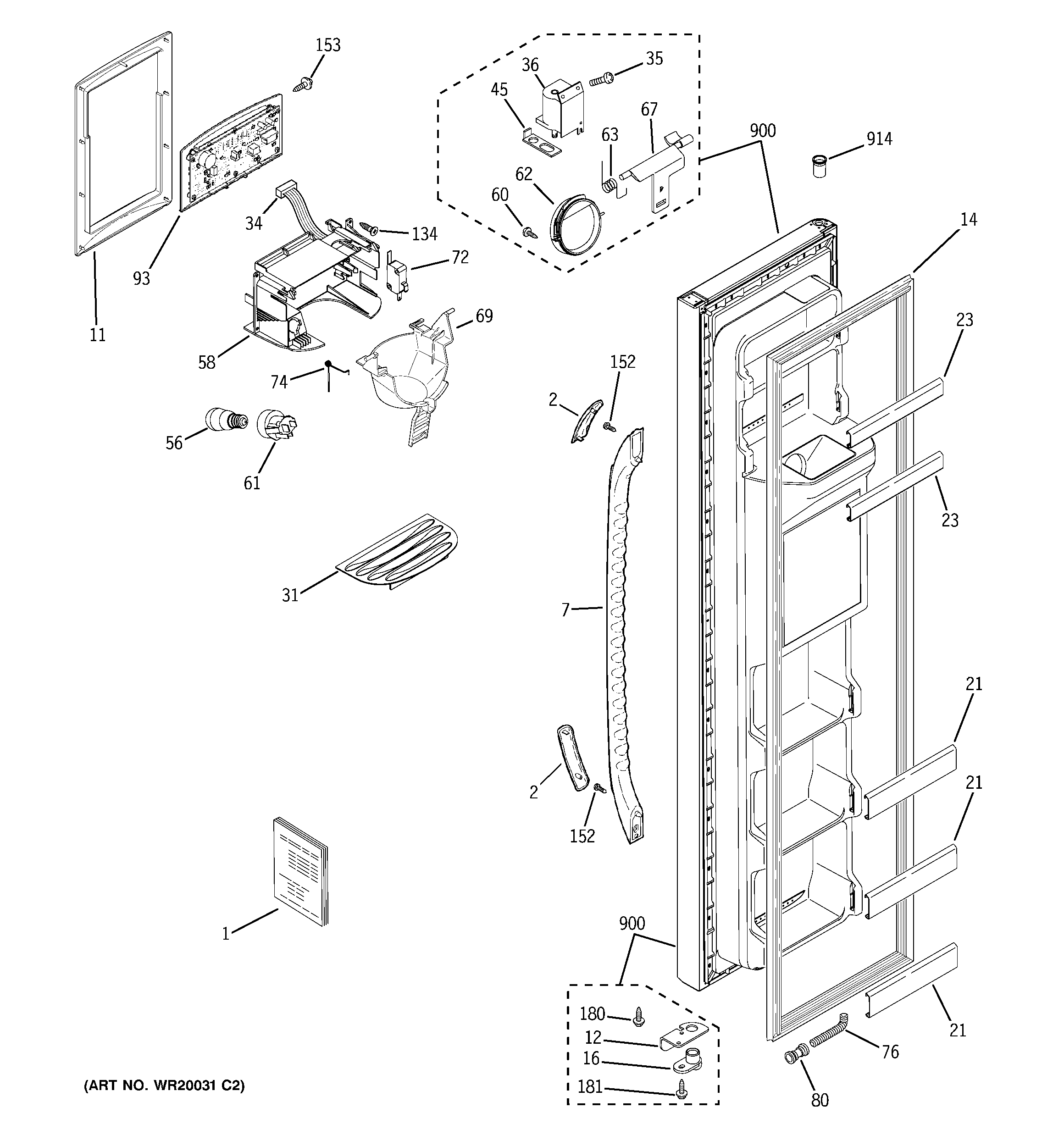

GSE20JEWHFBB FREEZER DOOR

Products

PositionProduct
1GEN 49-60513
1GEN 31-51716
2GEN WR12X10817
2GEN WR12X10816
7GEN WR12X10814
7HANDLE SXS DOOR WW
11RECESS TRIM
11WR38X23216 GE Refrigerator Trim Recess
12WR02X11466 GE Refrigerator Door Stop Plate
12GEN WR02X10576
14WR24X10302 GE Refrigerator Door Gasket
14WR24X23195 GE Refrigerator Door Gasket 20/22'
16GEN WR02X11478
21GEN WR17X12068
23GEN WR17X12074
31GEN WR17X10712
31GEN WR17X10745
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
69WR17X11264 GE Ice Funnel Assembly White
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10569
93GEN WR55X10568
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
152GEN WR01X10596
153WR1X1505D GE Refrigerator Screw Package of 12
180WR01X10605 GE Refrigerator Screw 6-22 PL IHXW 3/8 S
181SCR 10-32 F HXW 3/4 S
900DOOR ASM FOAM FZ
900DOOR ASM FOAM FZ
914GEN WR01X10200
