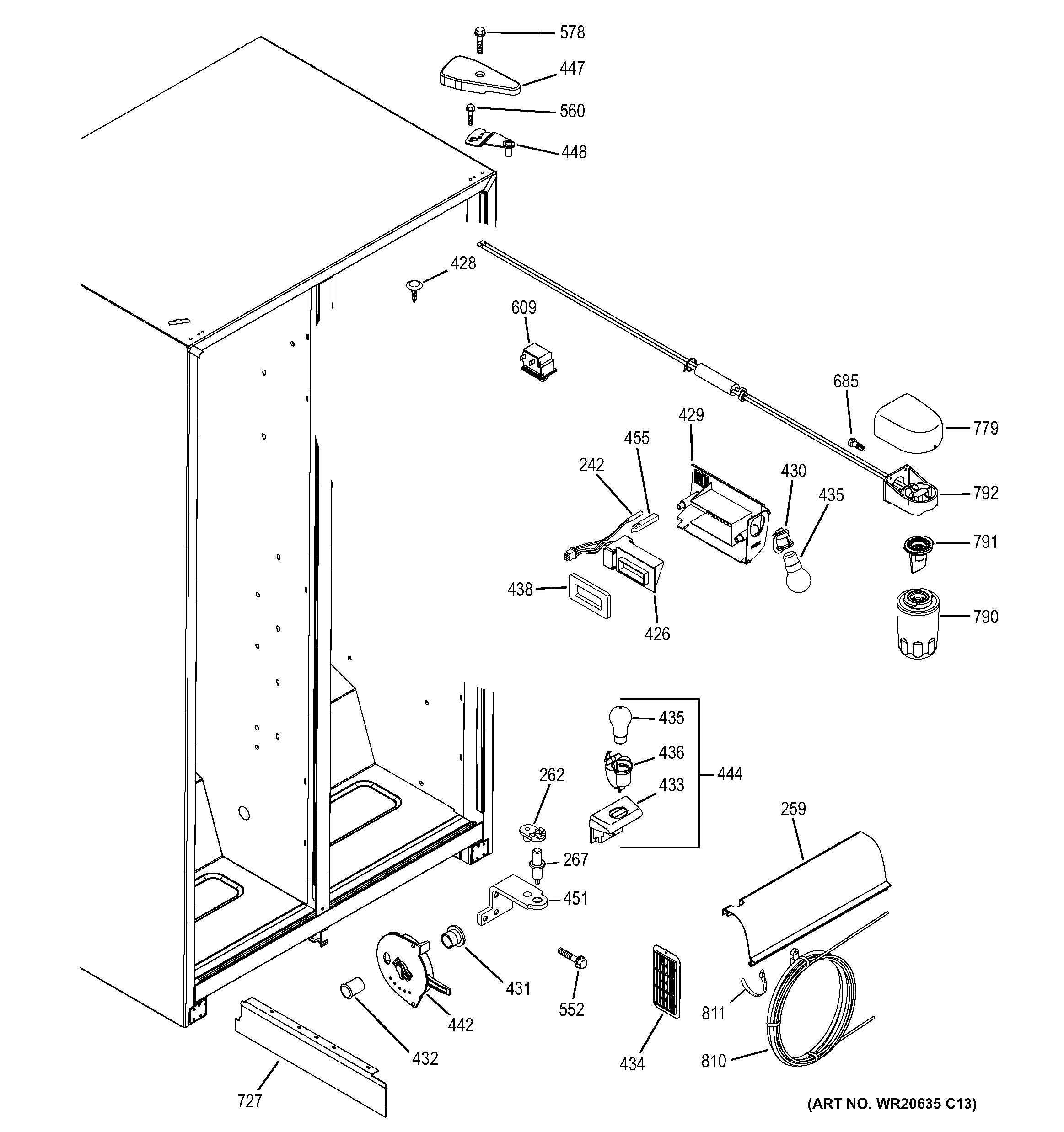

GSE22ESHB SS FRESH FOOD SECTION

GSE22ESHB SS FRESH FOOD SECTION

Written by

in

GSE22ESHB SS FRESH FOOD SECTION

Products

PositionProduct
242WR55X10025 GE Refrigerator Temperature Sensor
259SHIELD LIGHT LOWER
262WR02X11743 GE Refrigerator Hinge Cam Riser
267WR23X10496 GE Refrigerator Fan Heater Harness
426WR60X10215 GE Refrigerator Damper and Thermistor Assembly
428GEN WR02X7051
429WR13X10988 GE Refrigerator Damper Cover Assembly
430SOCKET LAMP
431WR2X9299 GE Refrigerator Air Duct Cap Mullion
432WR02X10561 GE Duct Mullion
433HOUSING LAMP SOCKET INT
434GEN WR17X10262
435RANGE ONLY 40W 120V APPL BULB
436WR02X10591 GE Light Socket and Terminal
438WR14X10047 GE Refrigerator Gasket Damper
442CONTROL MEAT PAN ASM
444HOUSING LIGHT LWR ASM
447COVER HINGE
448HINGE TOP & PIN ASM RH
451HINGE BTM & PIN ASM
455COVER SENSOR FF
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
609SWITCH LIGHT
685SCR 8-18 AB HXW 3/4 S
727GEN WR17X11409
779COVER WATER FILTER
790MWFP GE Replacement Water Filter Pureline for Refrigerator
791WR17X22070 GE Water Filter Bypass Plug
792WR02X45209 GE Manifold MWF
810WATER STORAGE COIL
811WR02X11607 GE Refrigerator Wire Tie
