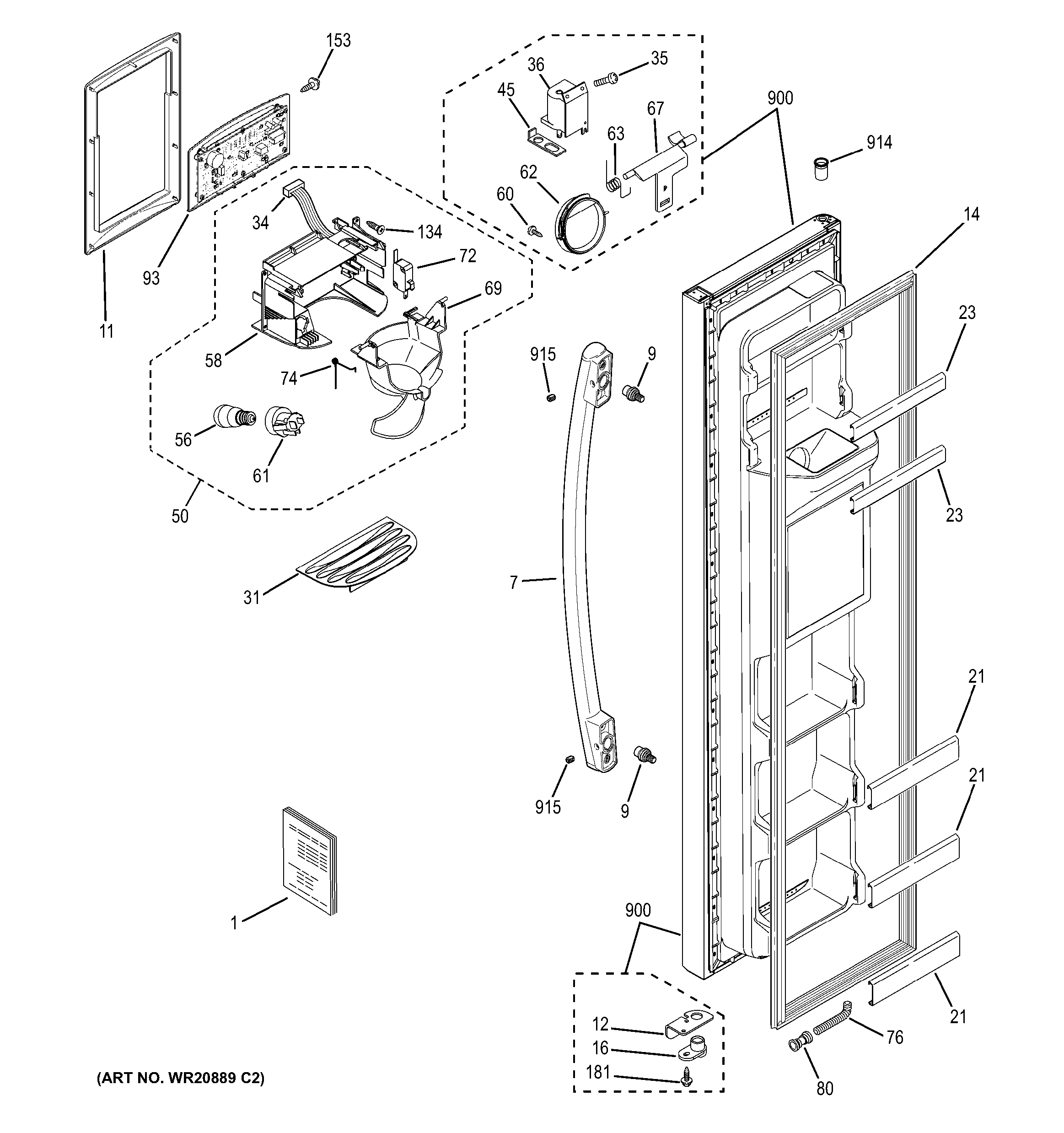

GSE22ESHC SS FREEZER DOOR

GSE22ESHC SS FREEZER DOOR

Written by

in

GSE22ESHC SS FREEZER DOOR

Products

PositionProduct
1PM GUIDE OWNERS
1PM MINI MANUAL WIRING
7WR12X21070 GE Refrigerator Door Handle
9FASTENER HANDLE
11TRIM RECESS DG
12PLATE DOOR STOP FZ
14WR24X23195 GE Refrigerator Door Gasket 20/22'
16GEN WR02X11478
21WR17X12069 GE Refrigerator Front Door Shelf
23FRONT DOOR SHELF FZ
31GRILL RECESS
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
50HOUSING RECESS ASM DISP
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69FUNNEL ICE DISP
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93COMBINED HMI ASM
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
153WR1X1505D GE Refrigerator Screw Package of 12
181SCR 10-32 F HXW 3/4 S
900DOOR FOAM ASM FZ SS 20/22'
914GEN WR01X10200
915WR01X20424 GE Refrigerator Screw
