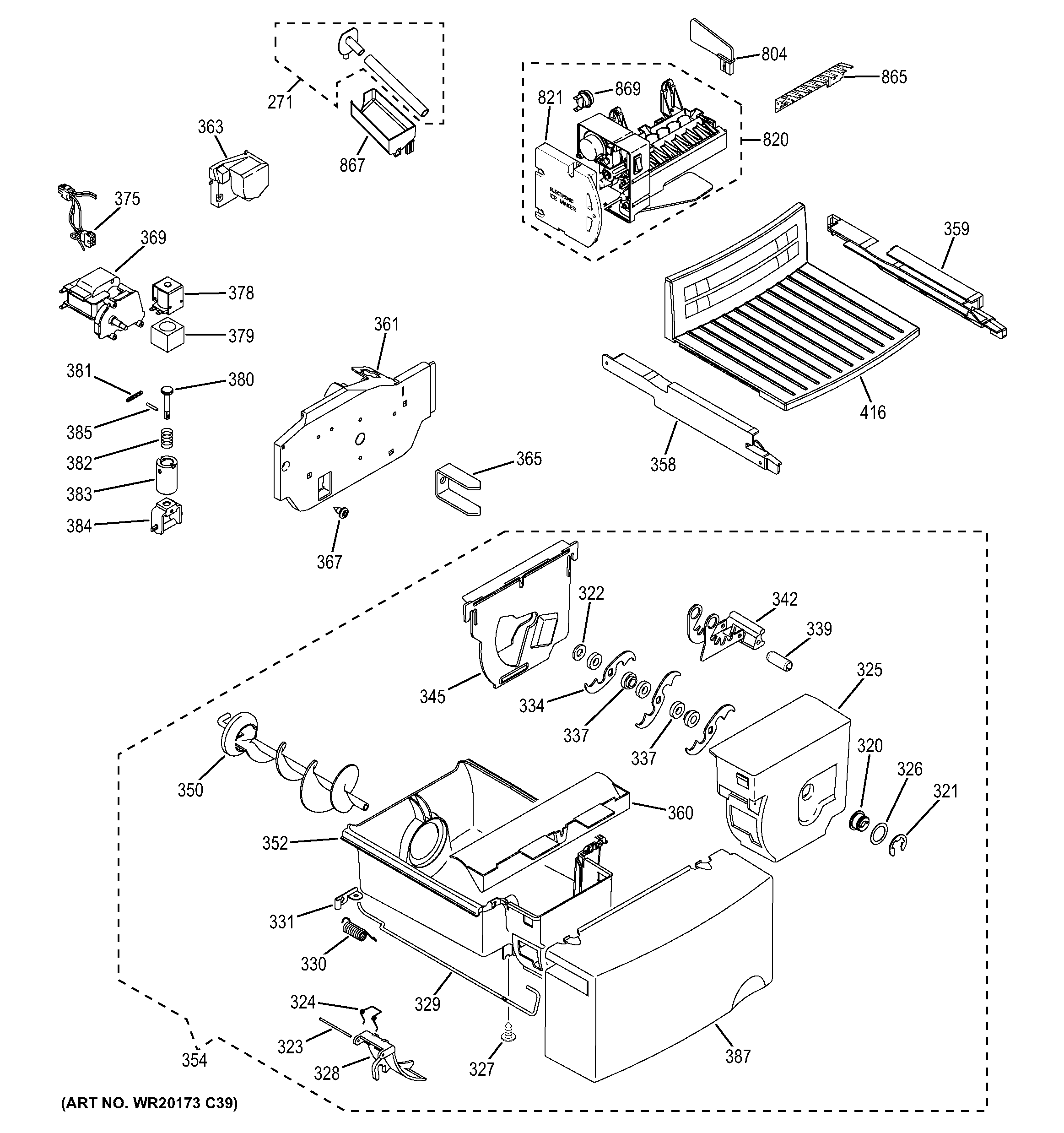

GSE22ESHC SS ICE MAKER & DISPENSER

GSE22ESHC SS ICE MAKER & DISPENSER

Written by

in

GSE22ESHC SS ICE MAKER & DISPENSER

Products

PositionProduct
271WR17X11168 GROMMET AND TUBE ASM
320WR01X10315 GE Refrigerator Auger Nut
321WR1X1367D GE Refrigerator Return Package 12
323WR2X4143 GE Refrigerator Pivot
324GEN WR02X4561
325WR17X11505 GE Refrigerator Housing Crusher
326GEN WR01X1366
327WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
328WR17X10703 GE Refrigerator Deflector
329WR17X11403 GE Refrigerator Wire Actuator Dispenser
330WR02X11768 GE Refrigerator Internal Spring Deflector
331WR02X10580 GE Refrigerator Retainer Spring
334WR17X11241 GE Refrigerator Blades Moving Dispenser
337WR2X4138 GE Refrigerator Spacer
339GEN WR02X4141
342WR02X10691 GE Refrigerator STATIONARY Blades Assembly
345WR17X11497 GE Refrigerator Ice Dispenser Crusher Cover
350BUCKET AUGER
352WR30X10017 GE Ice Bucket
354BUCKET & AUGER ASM
358WR72X10233 GE Refrigerator Drawer Glide
359WR72X10234 GE Refrigerator Right Hand Dispenser Glide Bucket
360WR17X11450 GE Refrigerator Diverter Overflow
361COVER MOTOR FRONT
363COVER, AUGER MOTOR REAR
365DRIVE AUGER DISP
367WD2X323D GE Dishwasher Screw Package
369WR60X10258 GE Refrigerator Icemaker Auger Motor
375HARNESS MOTOR DISP
380WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
382WR62X26536 GE Refrigerator Armature Kit
387COVER BUCKET DISP
416WR71X10961 GE Refrigerator Chiller Shelf
804WR29X10054 GE Refrigerator Ice Maker Guard Rail
865WR29X10083 GE Refrigerator Ice Maker Stripper
867WR29X10109 GE Refrigerator Water Fill Cup
869WR30X10093 GE Refrigerator Ice Maker
