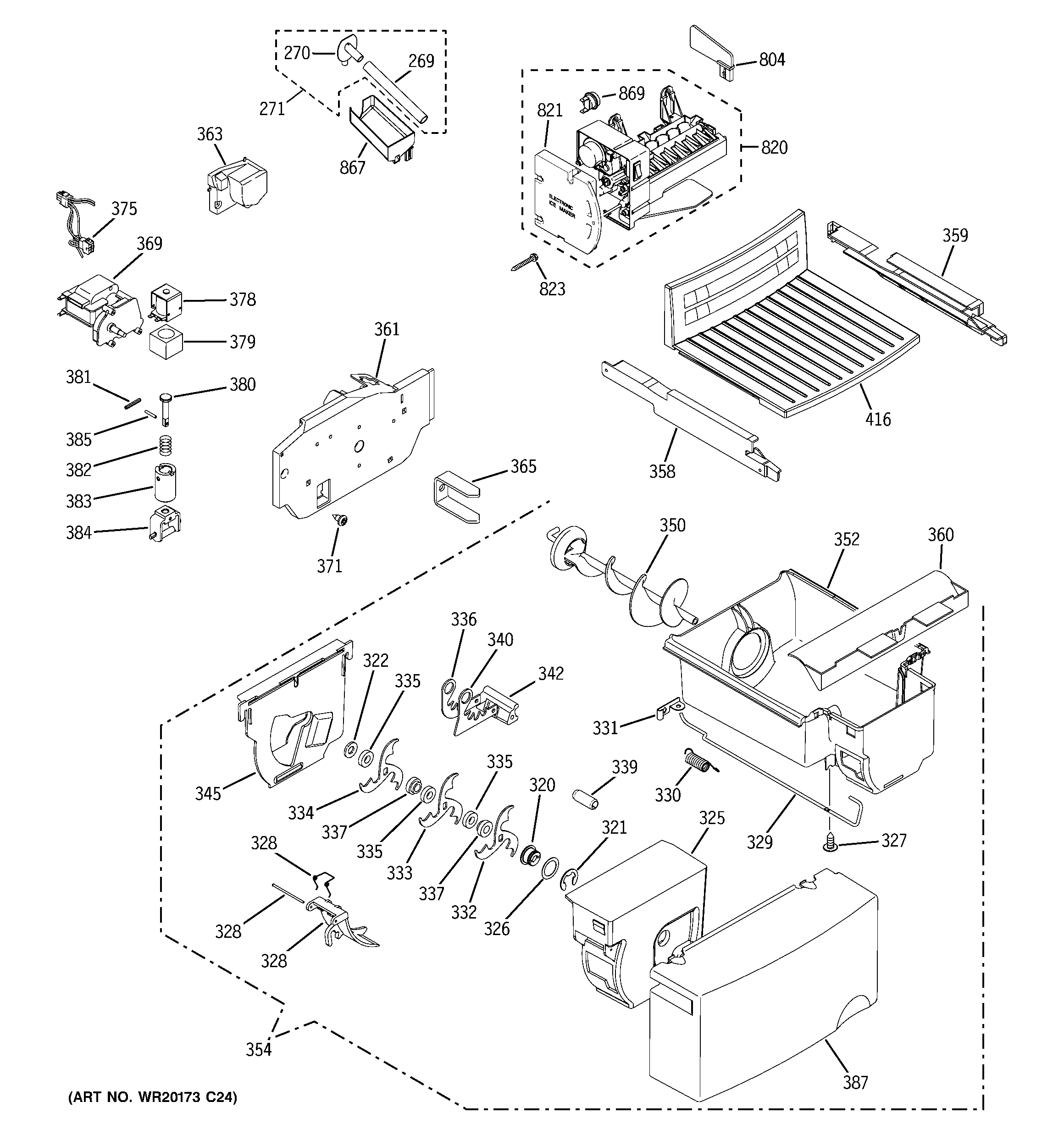

GSE22KEBCFBB ICE MAKER & DISPENSER

GSE22KEBCFBB ICE MAKER & DISPENSER

Written by

in

GSE22KEBCFBB ICE MAKER & DISPENSER

Products

PositionProduct
269WR17X11168 GROMMET AND TUBE ASM
271WR49X10182 GE Refrigerator Service Kit Water Line
320WR01X10315 GE Refrigerator Auger Nut
321WR1X1367D GE Refrigerator Return Package 12
322GEN WR02X11266
325WR17X11505 GE Refrigerator Housing Crusher
326GEN WR01X1366
327WR01X10607 GE Scraper 8-18 Ab Phr 1/2 S
328WR2X4143 GE Refrigerator Pivot
328GEN WR02X4561
329WR17X11403 GE Refrigerator Wire Actuator Dispenser
330WR02X11768 GE Refrigerator Internal Spring Deflector
331WR02X10580 GE Refrigerator Retainer Spring
335GEN WR02X4139
337WR2X4138 GE Refrigerator Spacer
339GEN WR02X4141
340WR17X2058 GE Refrigerator Dispenser Blade
342WR02X10691 GE Refrigerator STATIONARY Blades Assembly
345WR17X11497 GE Refrigerator Ice Dispenser Crusher Cover
350BUCKET AUGER
352WR30X10017 GE Ice Bucket
354BUCKET & AUGER ASM
358WR72X10233 GE Refrigerator Drawer Glide
359WR72X10234 GE Refrigerator Right Hand Dispenser Glide Bucket
360WR17X11450 GE Refrigerator Diverter Overflow
361COVER MOTOR FRONT
363COVER, AUGER MOTOR REAR
365DRIVE AUGER DISP
369WR60X10260 GE Refrigerator Motor Crusher Dispenser
371WR01X10619 GE Refrigerator Screw
375GEN WR23X10689
378WR62X10054 GE Refrigerator Solenoid & Arm Assembly
380WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
385WR62X26536 GE Refrigerator Armature Kit
387GEN WR17X12176
416GEN WR71X11008
804WR29X10054 GE Refrigerator Ice Maker Guard Rail
821WR29X10068 GE Refrigerator Cover Plate Electric TRNIC IM
867WR29X10109 GE Refrigerator Water Fill Cup
