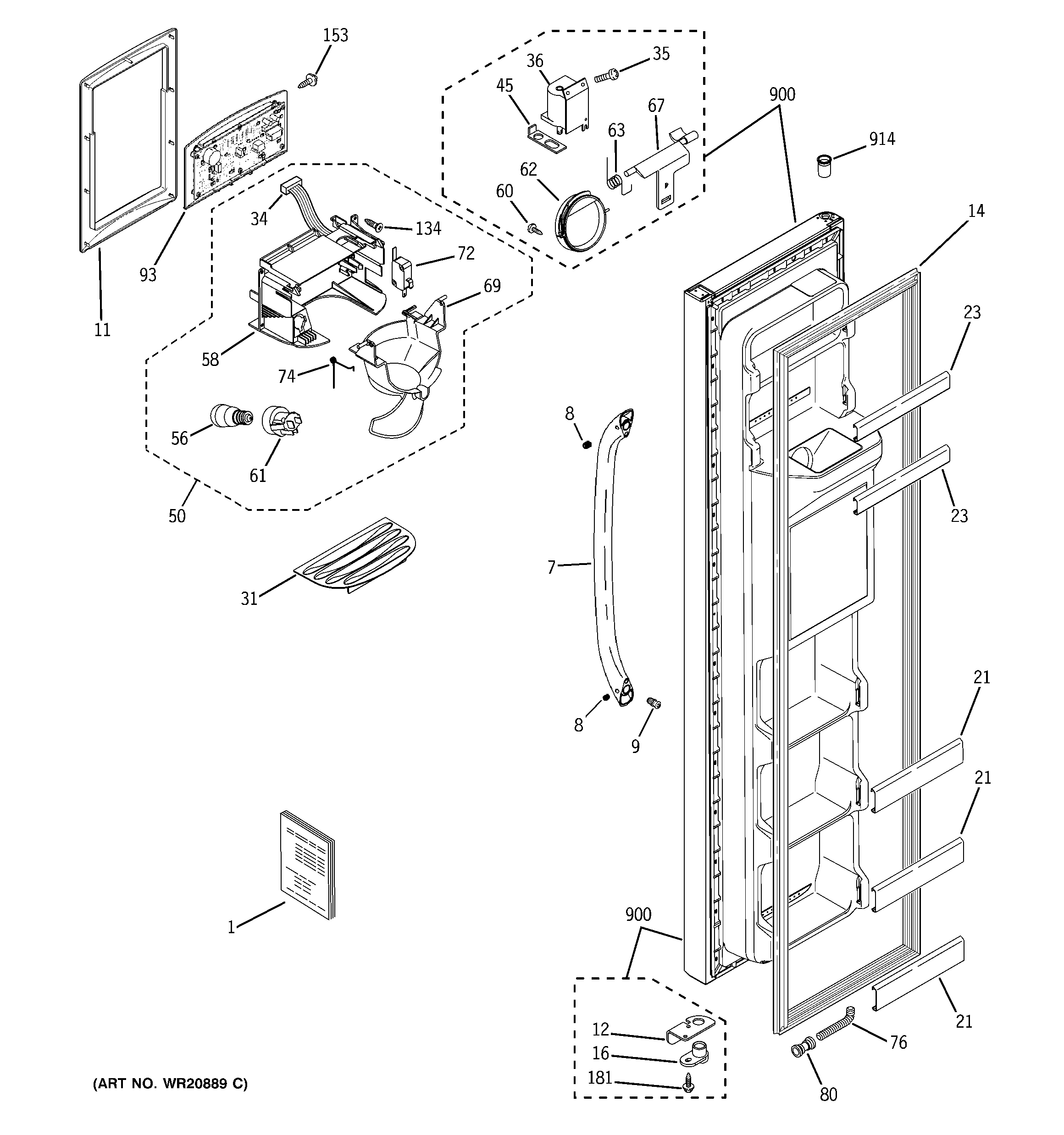

GSE22KEBCFWW FREEZER DOOR

GSE22KEBCFWW FREEZER DOOR

Written by

in

GSE22KEBCFWW FREEZER DOOR

Products

PositionProduct
1GEN 31-51790
1GEN 49-60513
1GEN WR01X10990
7GEN WR12X11045
7GEN WR12X11046
8GEN WR01X11056
9FASTENER HANDLE
11WR38X23216 GE Refrigerator Trim Recess
11RECESS TRIM
12WR02X11466 GE Refrigerator Door Stop Plate
12GEN WR02X10576
14WR24X10302 GE Refrigerator Door Gasket
14WR24X23195 GE Refrigerator Door Gasket 20/22'
16GEN WR02X11478
21WR17X12069 GE Refrigerator Front Door Shelf
23GEN WR17X12074
31GEN WR17X10712
31GEN WR17X10745
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11264 GE Ice Funnel Assembly White
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X10568
93GEN WR09X10148
93GEN WR09X10147
93GEN WR55X10569
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
153WR1X1505D GE Refrigerator Screw Package of 12
181WZ04X10001 GE Screw 10-32 GX HXWS 9/16"
181SCR 10-32 F HXW 3/4 S
900GEN WR78X12815
900GEN WR78X12818
914GEN WR01X10200
