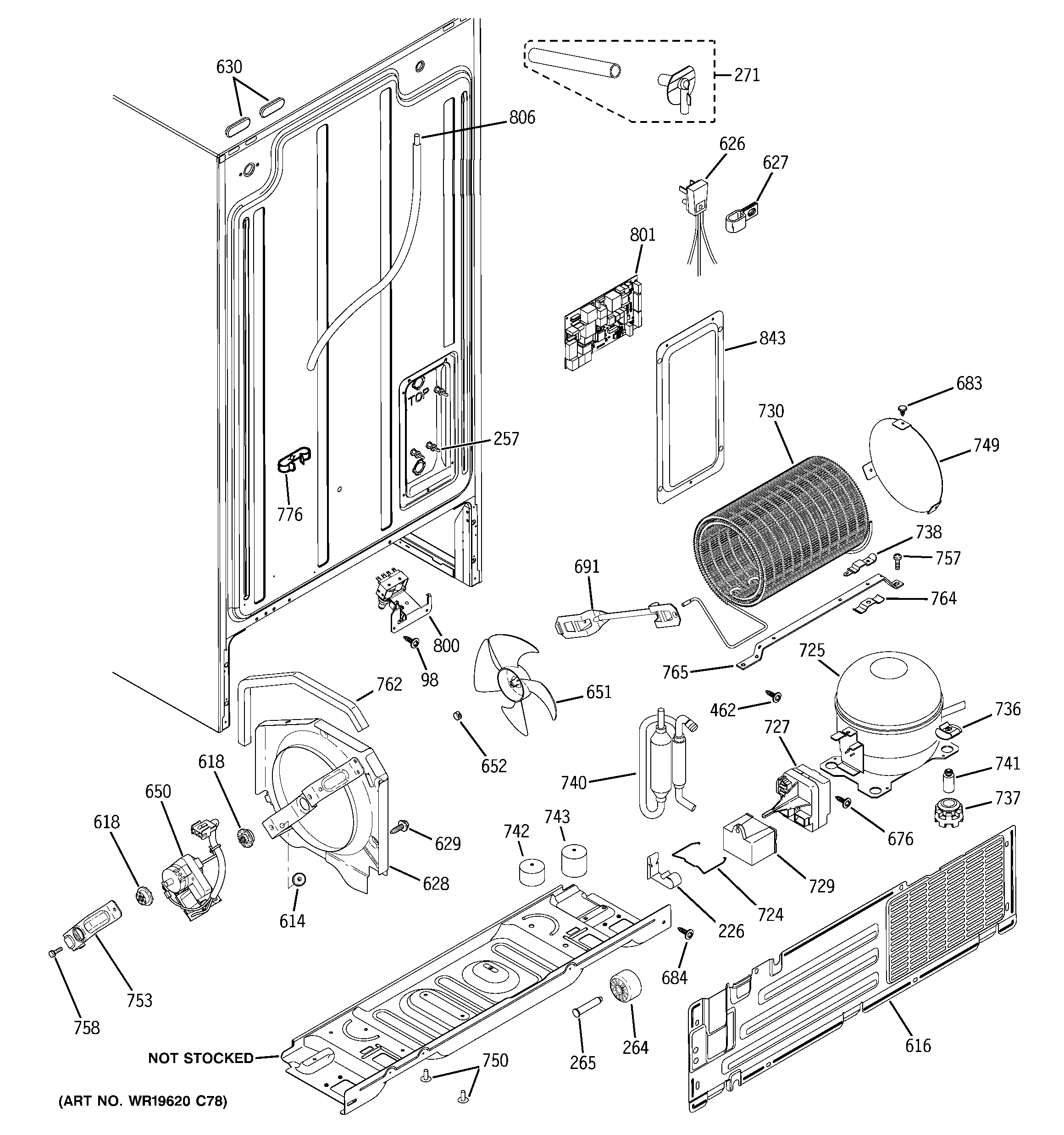

GSE22KEWPFWW SEALED SYSTEM & MOTHER BOARD

GSE22KEWPFWW SEALED SYSTEM & MOTHER BOARD

Written by

in

GSE22KEWPFWW SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
98SCR 8-36 T IHW 3/8 S N
226WR02X10558 GE Refrigerator Drain Tube Clip
257FASTENER BOARD
264WR02X10695 GE Refrigerator Wheel
265AXLE WHEEL
271WR17X11168 GROMMET AND TUBE ASM
271WR49X10182 GE Refrigerator Service Kit Water Line
462SCR 8-18 AB HXW 1/2 S
614BUMPER
616WR82X10108 GE Refrigerator Access Cover
618WR02X10520 GE Refrigerator Fan Motor Grommet
626GEN WR23X10478
628WR17X35527 GE Refrigerator Condenser Fan Shroud
629WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
630WR2X4097 GE Button Plug
630GEN WR02X8525
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
683WR02X10562 GE Push Fastener
684WR01X10635 GE Scr 8-32 Ca IHVW .625 S
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X10103 GE Refrigerator Compressor Replacement Kit R134A
727GEN WR17X11409
729GEN WR62X10014
730WR84X10022 GE Refrigerator Condenser Replacement Kit
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
743GEN WR02X10588
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X10065 GE Refrigerator Water Valve
801WR55X26733 GE Refrigerator Control Board
806WR17X11625 GE Refrigerator Plastic Tube
843COVER ENCLOSURE
