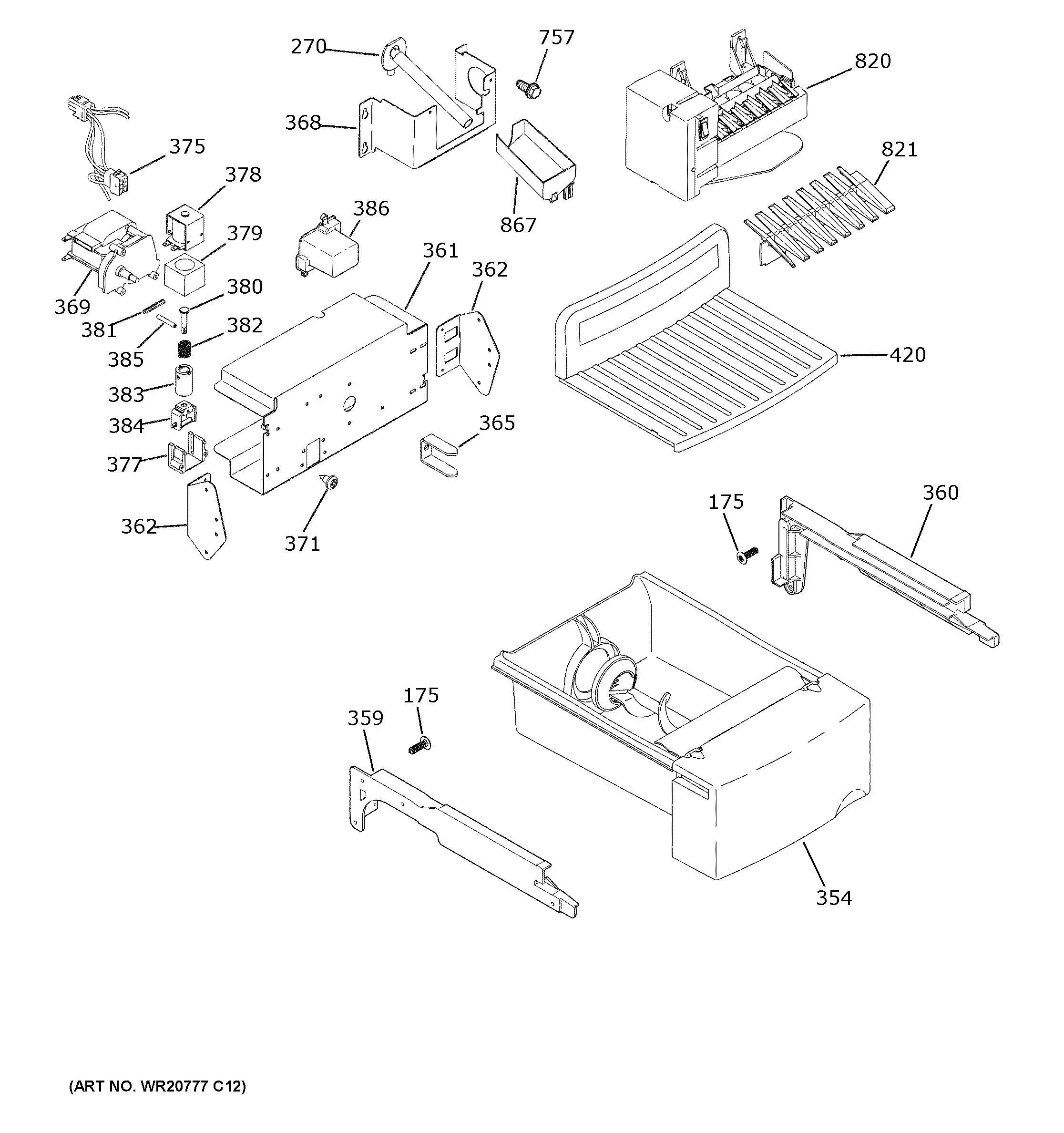

GSE23GGPECBB ICE MAKER & DISPENSER

GSE23GGPECBB ICE MAKER & DISPENSER

Written by

in

GSE23GGPECBB ICE MAKER & DISPENSER

Products

PositionProduct
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
270WR17X11168 GROMMET AND TUBE ASM
354WR29X43996 GE Ice Bucket
359WR72X10169 GE Refrigerator Glide Bracket Left Hand
360WR72X10170 GE Refrigerator Glide Bracket Right Hand
361WR17X24304 GE Refrigerator Motor and Solenoid Cover
362WR02X12057 GE Angle Bracket
365DRIVE AUGER DISP
368WR02X12061 GE Refrigerator IM Mounting Bracket
369WR49X43806 GE Auger Motor Service Kit
371WR01X10619 GE Refrigerator Screw
375WR23X39466 GE Auger Motor Harness
377WR2X7309 GE Refrigerator Solenoid Cushion
378WR62X39469 GE Crusher Solenoid
382WR62X26536 GE Refrigerator Armature Kit
385WR62X23154 GE Refrigerator Ice Dispenser Solenoid Kit
386WR02X11295 GE Refrigerator Auger Motor Boot
420WR71X38725 GE Chiller Shelf
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
820WR30X39277 GE Icemaker
821WR29X10083 GE Refrigerator Ice Maker Stripper
867WR29X10109 GE Refrigerator Water Fill Cup
