GSE23GGPECBB MACHINE COMPARTMENT

GSE23GGPECBB MACHINE COMPARTMENT

Written by

in

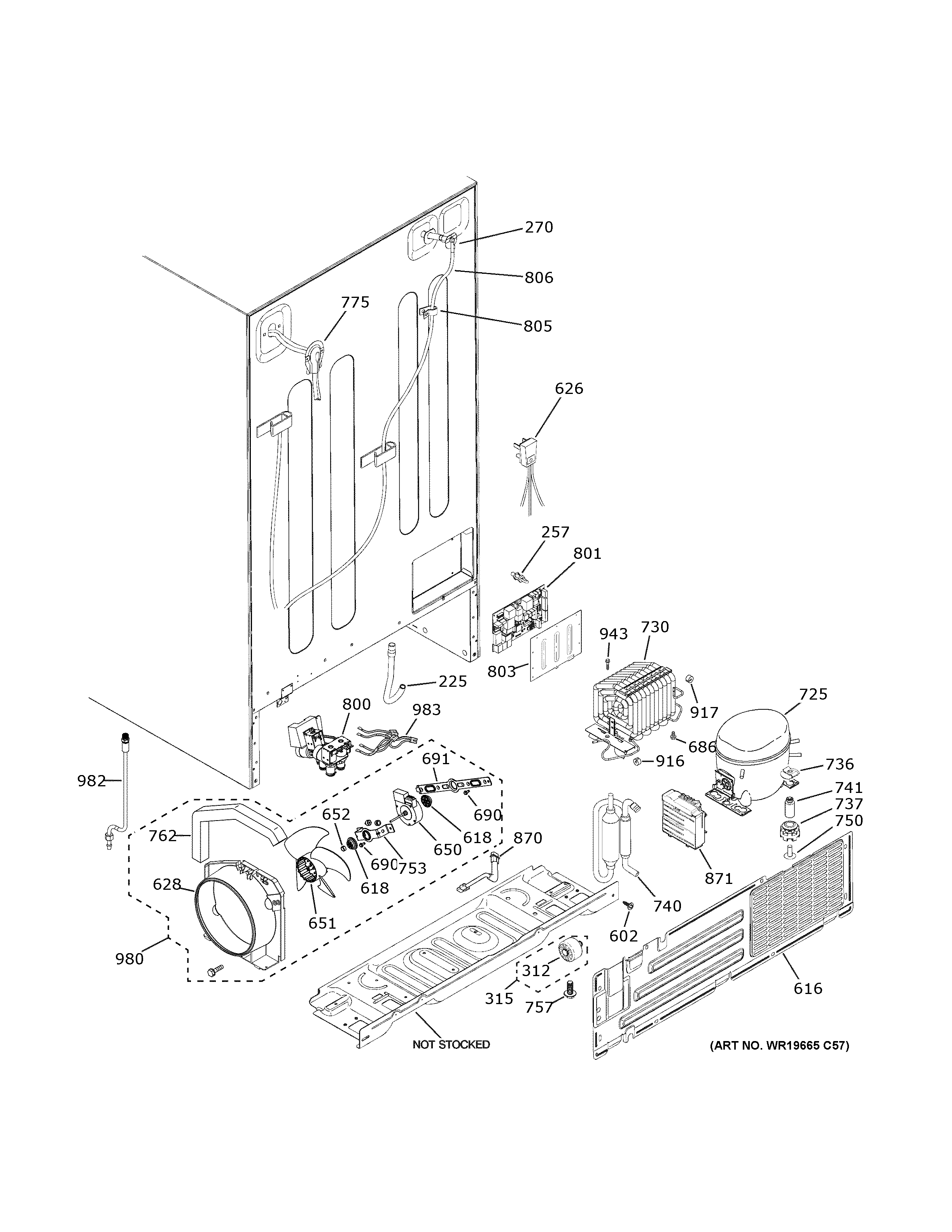

GSE23GGPECBB MACHINE COMPARTMENT

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
315WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
616WR82X10103 GE Refrigerator Access Cover
618WR02X12008 GE Refrigerator Evaporator Fan Grommet
626WR23X26686 GE Refrigerator Lower CAB Harness
628SHROUD CONDENSER
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725WR87X40486 GE Compressor Kit Variable Speed
730WR84X41045 GE Condenser
736CLIP
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR02X22869 GE Refrigerator Grommet
775WR17X13124 GE Refrigerator Water Line Cover
800ISOLATION VALVE AND JUMPER
801WR55X40446 GE Refrigerator SXS Main Board T
803WR02X12025 GE Main Board Enclosure
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
870HARNESS INVERTER COMM
871WR55X40286 GE Inverter
916WR02X13569 GE Refrigerator Sound Damper
917WR02X13573 GE Refrigerator Sound Damper
943SCR 10-16 B HXW 1/4 S
980WR60X29573 GE Refrigerator Condenser Fan & Housing
982WR02X13774 GE Refrigerator Tube Lead
983WR55X30923 GE Refrigerator Diode Harness Kit
