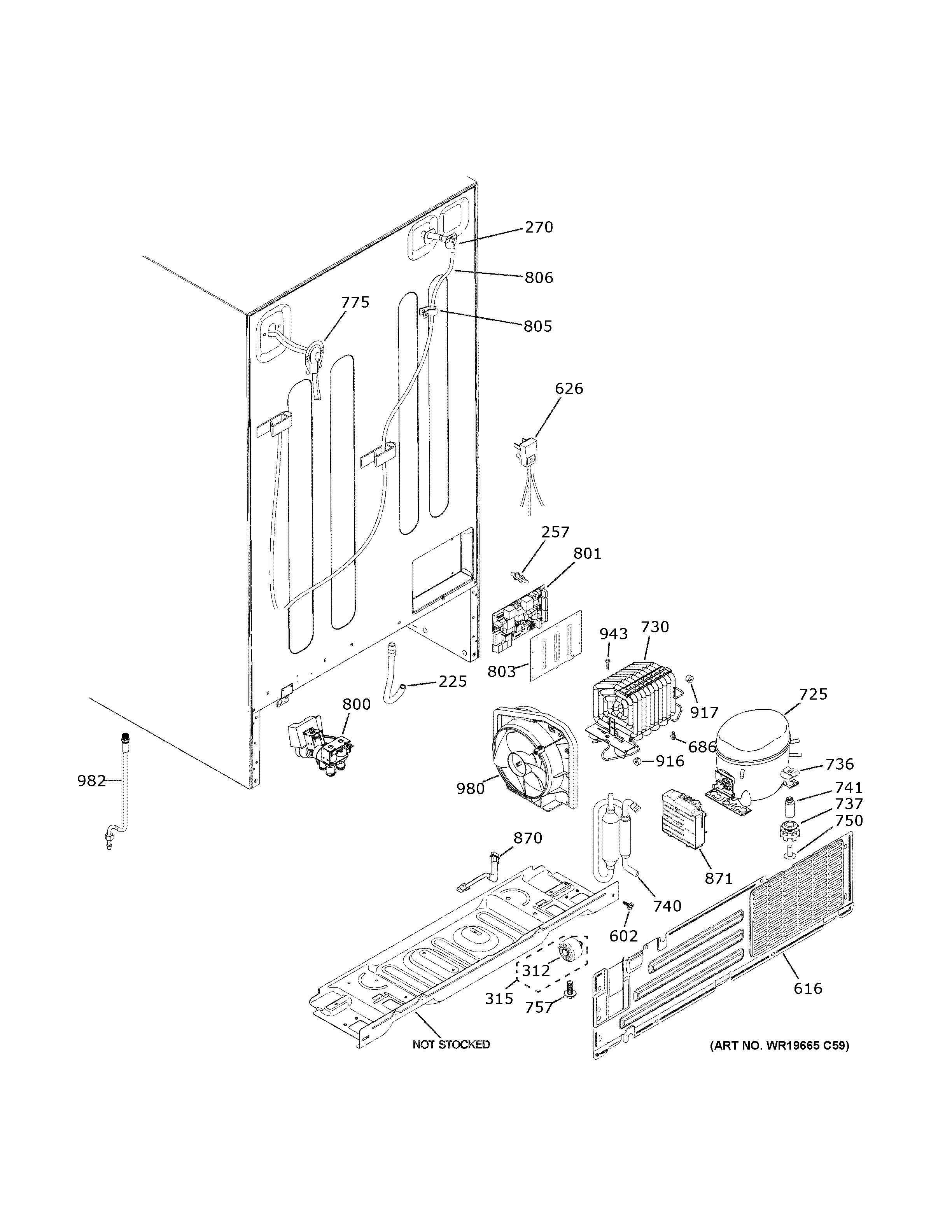

GSE23GGPFCBB MACHINE COMPARTMENT

GSE23GGPFCBB MACHINE COMPARTMENT

Written by

in

GSE23GGPFCBB MACHINE COMPARTMENT

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
315WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
616WR82X10103 GE Refrigerator Access Cover
626WR23X26686 GE Refrigerator Lower CAB Harness
686WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
725COMPRESSOR JIAXIPERA
730WR87X41927 GE Condenser 10-Pass
736CLIP
737WR02X40305 GE Grommet
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
775WR17X37725 GE Water Line Cover
800ISOLATION VALVE AND JUMPER
801WR55X40446 GE Refrigerator SXS Main Board T
803WR02X40325 GE Control Board Cover
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
870HARNESS INVERTER COMM
871INVERTER
916WR02X13569 GE Refrigerator Sound Damper
917WR02X13573 GE Refrigerator Sound Damper
943SCR 10-16 B HXW 1/4 S
980CONDENSER FAN ASSEMBLY
982WR02X13774 GE Refrigerator Tube Lead
