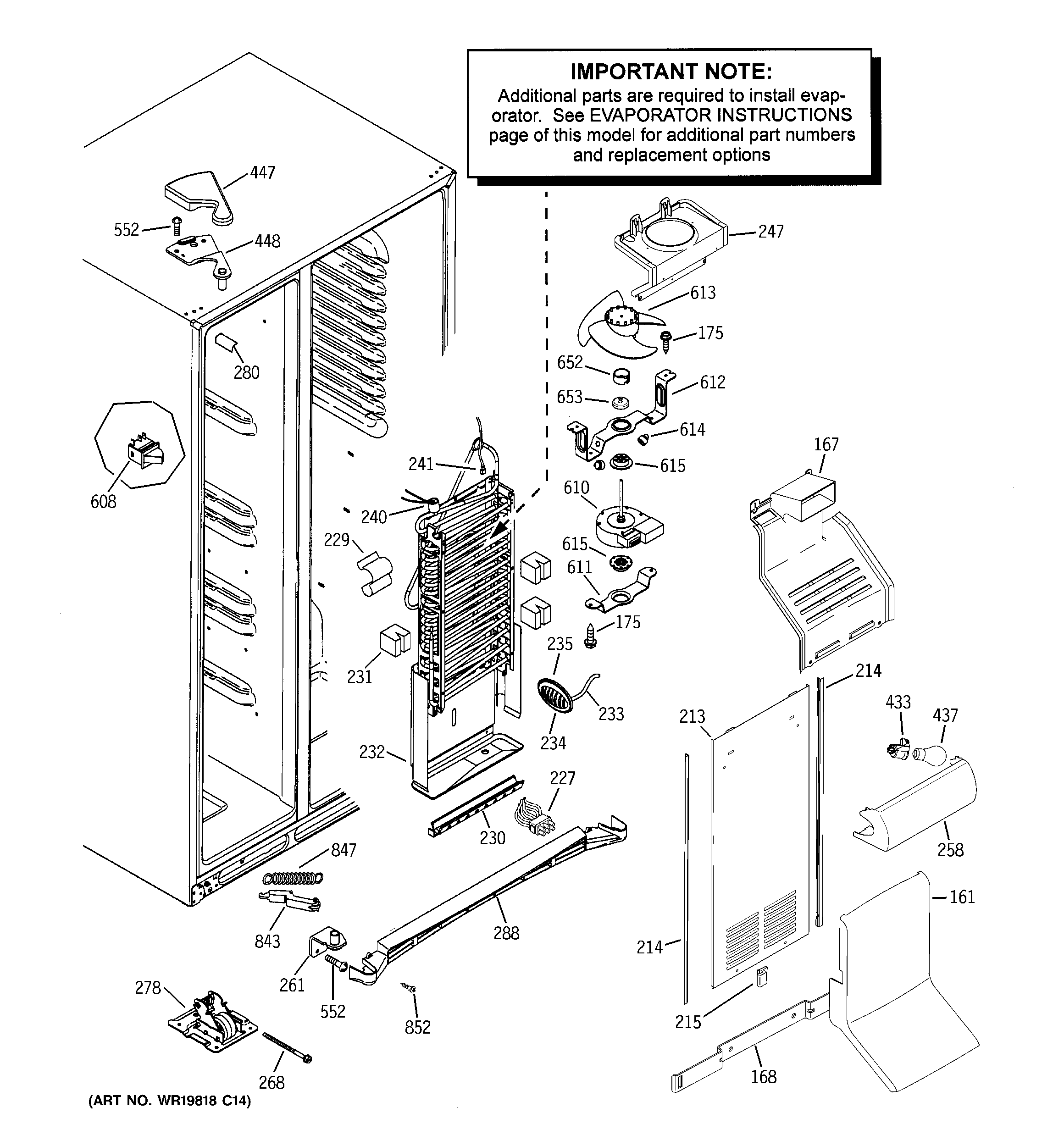

GSE23GSECCSS FREEZER SECTION

GSE23GSECCSS FREEZER SECTION

Written by

in

GSE23GSECCSS FREEZER SECTION

Products

PositionProduct
161WR17X11961 GE Refrigerator Lower Air Tower
167WR17X11958 GE Refrigerator Duct Assembly
168WR02X12060 GE Freezer Lower Tower Bracket
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
213WR17X12522 GE Refrigerator Evaporator Cover
214WR14X10196 GE Refrigerator Gasket Evaporator Cover
215WR01X10211 GE Refrigerator Upper Tower Bracket
227WR23X10617 GE Refrigerator AC Inter Harness
229GEN WR02X10552
230WR51X10101 GE Refrigerator Defrost Heater
231WR02X12056 GE Evaporator Seal Block
232WR17X11949 GE Refrigerator Trough Shield Assembly
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X11957 GE Refrigerator Evaporator Assembly Orifice
258WR17X11945 GE Refrigerator Light Shield
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X13791 GE Refrigerator Corner Cap
288WR74X10247 GE Refrigerator Grille Base
433WR2X9391 GE Socket and Terminal
437RANGE ONLY 40W 120V APPL BULB
447WR02X20434 GE Refrigerator Cover Hinge
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612WR02X10653 GE Refrigerator Orifice Fan Bracket
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843LEVER ASM FZ
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
