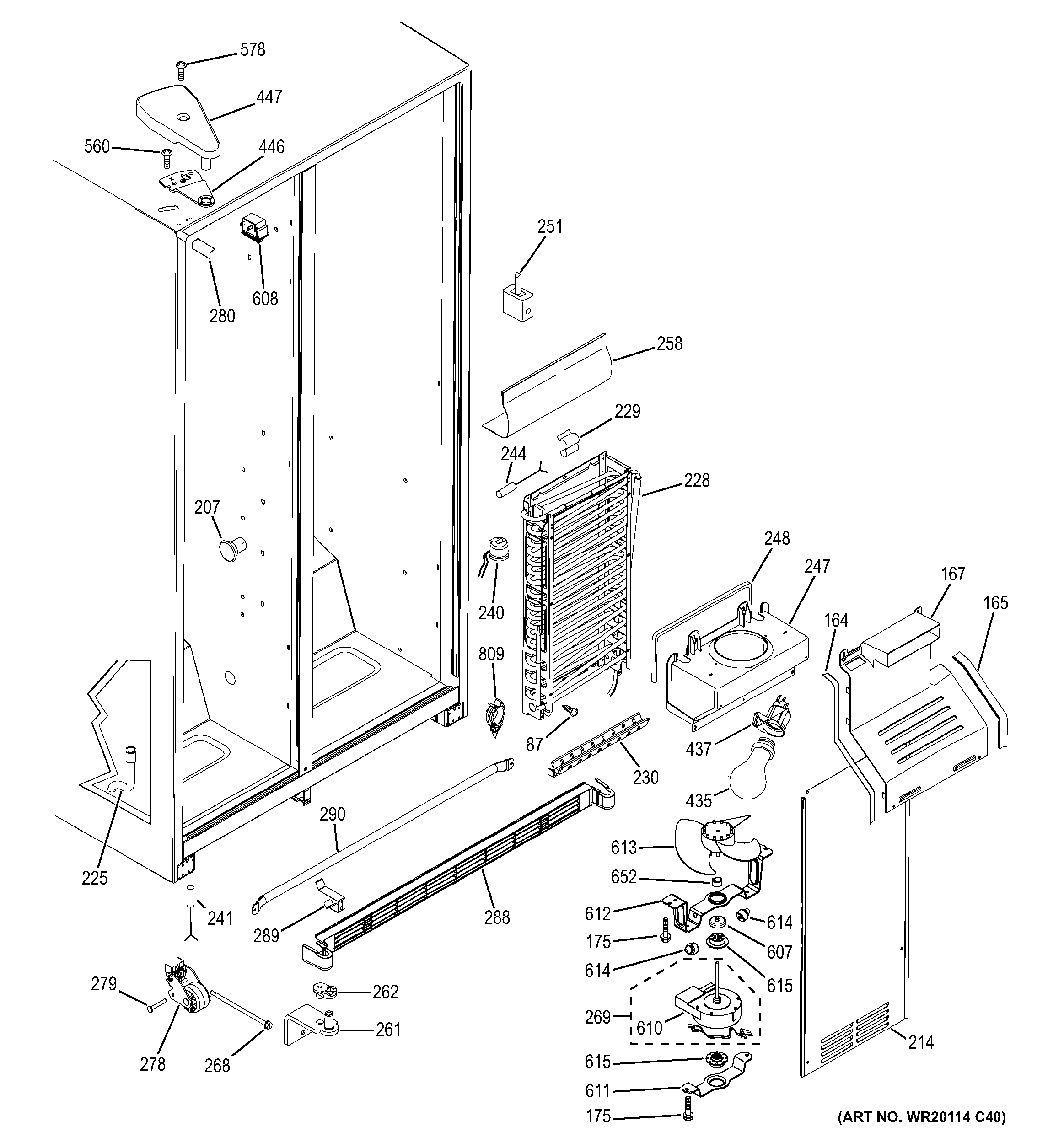

GSE25ETHD CC FREEZER SECTION

GSE25ETHD CC FREEZER SECTION

Written by

in

GSE25ETHD CC FREEZER SECTION

Products

PositionProduct
87WR01X10606 GE Refrigerator Screw 8-18 CA HX 1/2 S
164GEN WR14X10049
165GEN WR14X10048
167DUCT AIR FZ
175WZ04X10001 GE Screw 10-32 GX HXWS 9/16"
207GEN WR02X4676
214GEN WR17X11144
225GEN WR02X11476
228WR87X29147 GE Refrigerator 25' Evaporator
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
240WR50X10065 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
247ORIFICE EVAP FAN
248GEN WR14X10050
251GEN WR02X10632
258SHIELD LIGHT
261FZ HINGE BTM & PIN ASM
262WR02X11743 GE Refrigerator Hinge Cam Riser
268GEN WR01X10199
269WR23X10476 GE Refrigerator Fan Heater Harness
278WR02X12454 GE Refrigerator Mobility Front Assembly
279PIN PIVOT ASM
280WR02X10613 GE Corner Cap – Biscuit
288GRILLE BASE ASM BQ
289GEN WR02X10560
290WR17X11428 GE Refrigerator Curb Handling Bar
435RANGE ONLY 40W 120V APPL BULB
437SOCKET & TERMINAL
446HINGE TOP & PIN ASM LH
447CVR HNG BQ
560SCR 12-24 CA HX 7/8 S
578WR01X10379 GE Refrigerator Hinge Cover Screw
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X11622 GE Refrigerator Bottom Evaporator Fan Bracket
612GEN WR02X11124
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X11331 GE Refrigerator Grommet
652WR02X12149 GE Refrigerator Ring
8096 PIN CON AMP 1-480705-0
