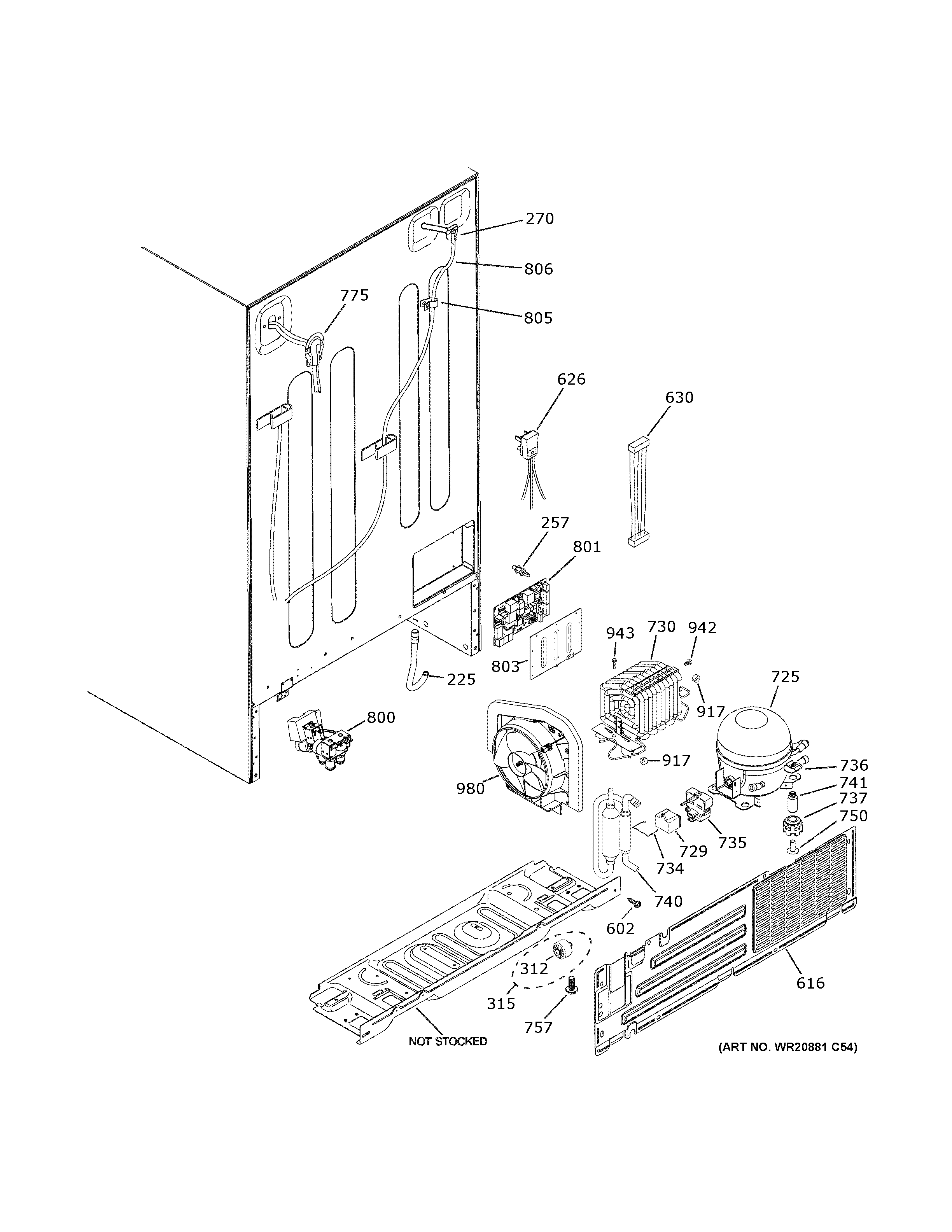

GSE25GYPHCFS MACHINE COMPARTMENT

GSE25GYPHCFS MACHINE COMPARTMENT

Written by

in

GSE25GYPHCFS MACHINE COMPARTMENT

Products

PositionProduct
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
312WR02X10695 GE Refrigerator Wheel
315WR02X11998 GE Refrigerator Mobility Wheel S Kit Assembly
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
616MACHINE COMPARTMENT COVER 36"
626WR23X29305 GE Refrigerator Lower CAB Harness
630WR23X10709 GE Refrigerator Harness Board Individual
725SINGLE SPEED COMPRESSOR KIT
729WR55X24064 GE Refrigerator Run Capacitor
730WR87X41927 GE Condenser 10-Pass
734WR02X26153 GE Refrigerator Clip Retainer
735WR08X31586 GE Refrigerator Overload PTCR Combo
736CLIP
737WR02X40305 GE Grommet
740WR87X30875 GE Refrigerator R600 Dryer with Red Cap
741WR1X1779 GE Refrigerator Stud Mounting Compressor
750WR1X1786 GE Refrigerator Screw
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
775WR17X37725 GE Water Line Cover
800WR57X36626 GE Water Valve Triple
801WR55X40445 GE Refrigerator Main Board SXS Stainless Steel
803WR02X40325 GE Control Board Cover
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
917WR02X13573 GE Refrigerator Sound Damper
943WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
980CONDENSER FAN ASSEMBLY
