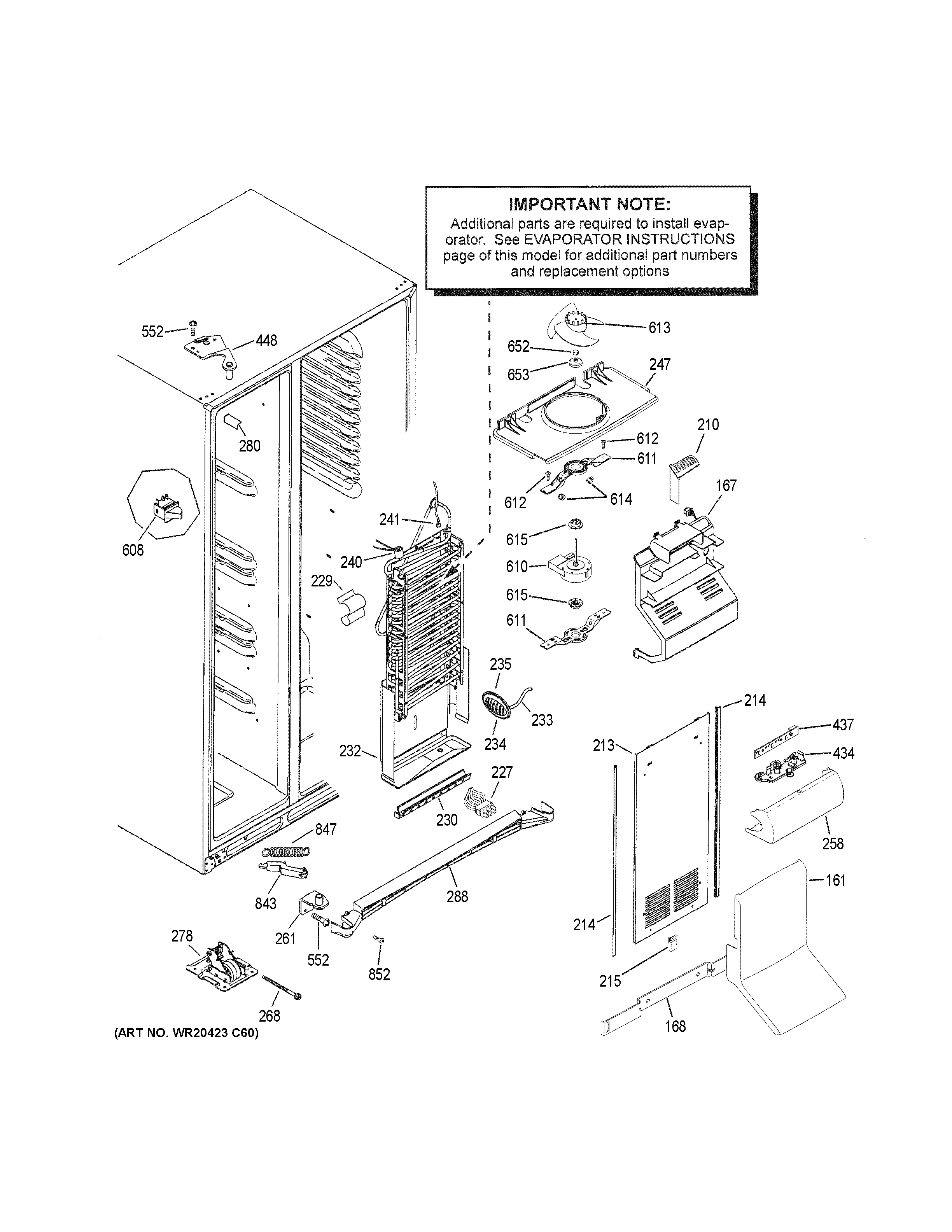

GSE25HGHJHWW FREEZER SECTION

GSE25HGHJHWW FREEZER SECTION

Written by

in

GSE25HGHJHWW FREEZER SECTION

Products

PositionProduct
161WR17X10817 GE Refrigerator Lower Tower Air
167WR17X12358 GE Refrigerator Plenum Fan Evaporator
168WR02X10674 GE Refrigerator Lower Tower Bracket
210WR74X10216 GE Refrigerator Plenum Extension
213WR17X11669 GE Refrigerator Cover Evaporator Front
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
215WR01X10211 GE Refrigerator Upper Tower Bracket
227WR55X28709 GE Refrigerator Harness AC Intermedia
229GEN WR02X10552
230WR51X10055 GE Refrigerator Defrost Heater and Bracket Assembly
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X12642 GE Refrigerator Orifice Fan Assembly
258WR17X11446 GE Refrigerator Light Shield
261WR13X10137 GE Refrigerator Bottom Hinge
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10640 GE Refrigerator White Cap Corner OC
288WR74X10271 GE Refrigerator Base Grille
434WR02X38338 GE Bracket LED Board
437WR55X26671 REFRIGERATOR LED LIGHT BOARD
448WR13X10922 GE Refrigerator Top Hinge and Pin Assembly
552WR01X10918 GE Refrigerator 12-24 Tapping Screw OVT 1.000"
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
