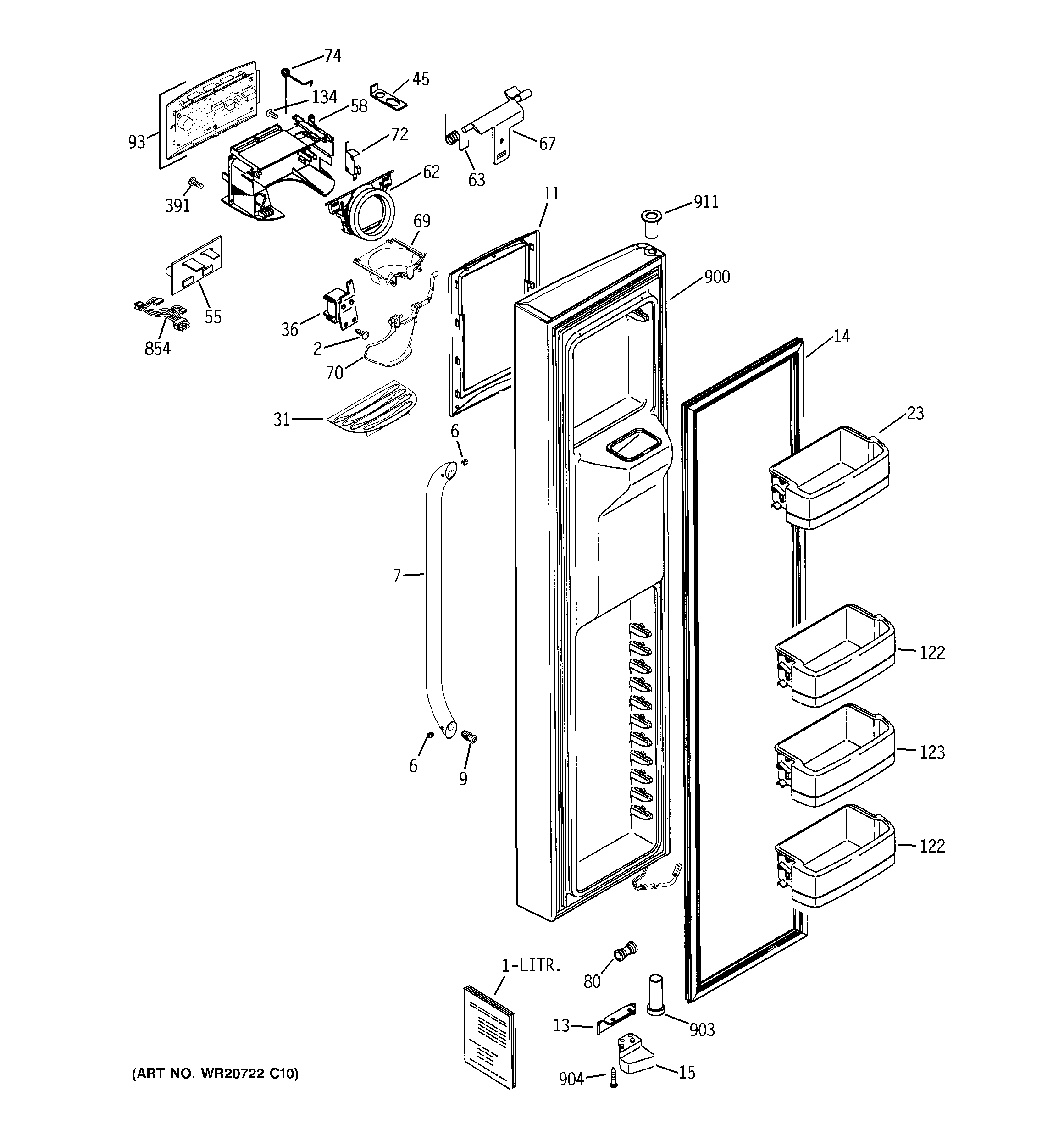

GSE25MGYCCSS FREEZER DOOR

GSE25MGYCCSS FREEZER DOOR

Written by

in

GSE25MGYCCSS FREEZER DOOR

Products

PositionProduct
1GEN 31-46221
1GEN 49-60565-2
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
6WR01X10450 GE Refrigerator Screw Set
7WR12X10855 GE Refrigerator Tubulur Handle Assembly
9WR02X12800 GE Refrigerator Stainless Steel Handle Fastener
11GEN WR38X10415
13WR02X12353 GE Refrigerator Door Stop
14GEN WR24X10234
14GEN WR24X10260
15WR02X10780 GE Refrigerator Cam Closure
23GEN WR71X10355
31GEN WR17X12324
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X12771 GE Refrigerator Housing Shield Dispenser
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X21781 GE Refrigerator Dispenser Ice Funnel
70WR17X12494 GE Refrigerator Paddle Ice Dispenser
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93GEN WR55X11014
122WR71X10291 GE Refrigerator Shelf Module
123WR71X10501 GE Refrigerator Fixed Shelf Module
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
391WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
854GEN WR23X10657
900GEN WR78X12601
903WR01X10234 GE Freezer Bottom Thimble Door (Black)
904WR01X10611 GE Screw
911WR01X10956 GE Door Thimble
