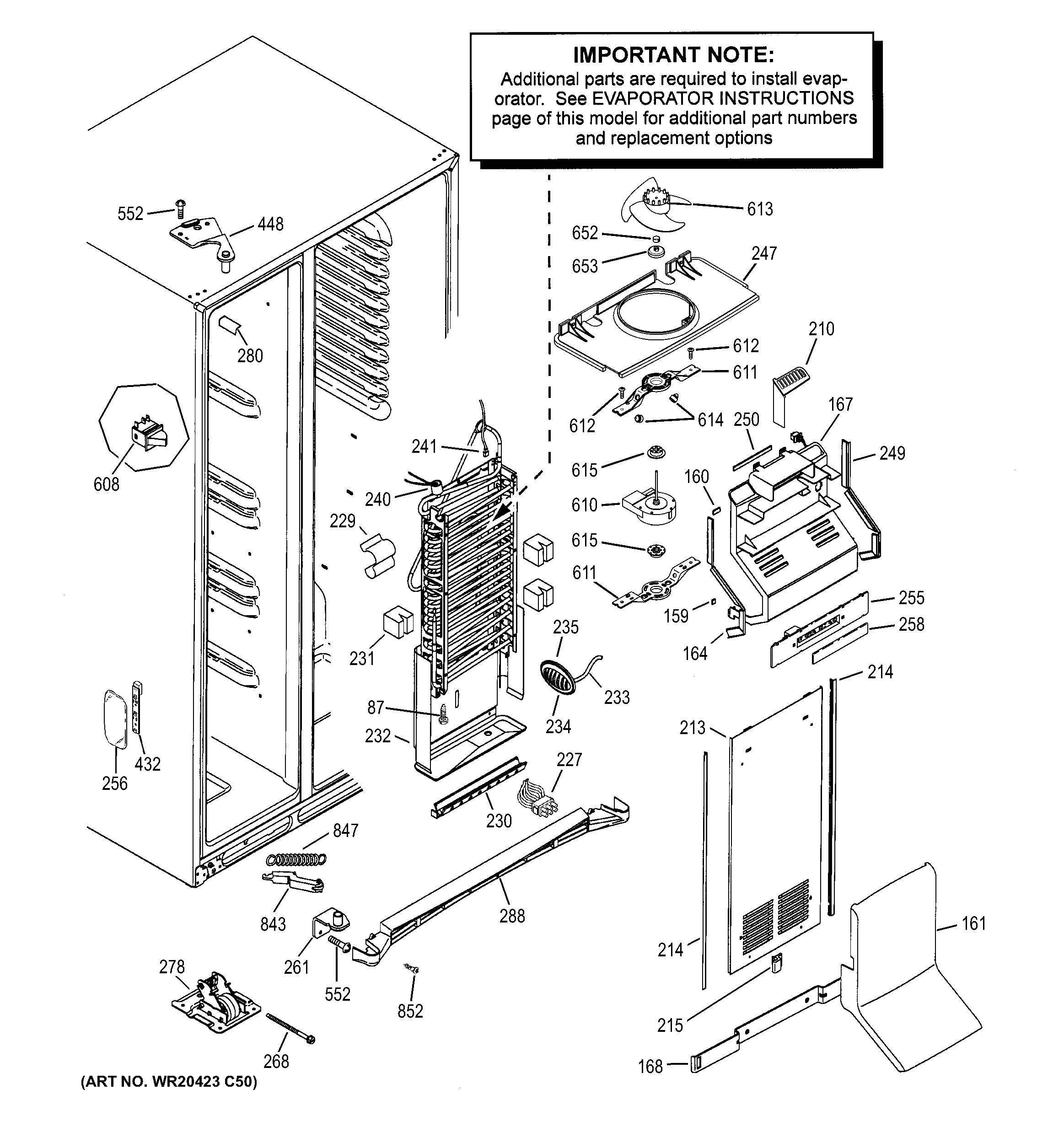

GSE27NGBACWW FREEZER SECTION

GSE27NGBACWW FREEZER SECTION

Written by

in

GSE27NGBACWW FREEZER SECTION

Products

PositionProduct
87WZ4X241D GE Screw Package
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
161WR17X10817 GE Refrigerator Lower Tower Air
164WR14X10164 GE Refrigerator Case Gasket
167GEN WR17X12868
168WR02X10674 GE Refrigerator Lower Tower Bracket
210GEN WR74X10131
213WR17X12866 GE Evaporator Front Cover
214WR14X10072 GE Refrigerator Gasket Evaporator CE01
215WR01X10211 GE Refrigerator Upper Tower Bracket
227GEN WR23X10763
229GEN WR02X10552
230WR51X10042 GE Refrigerator Heater & Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X12642 GE Refrigerator Orifice Fan Assembly
249WR14X10165 GE Refrigerator Gasket Plenum
250WR14X10069 GE Adhesive Foam Strip
255WR02X13404 GE Refrigerator Insert Plenum Assembly
256WR17X12871 GE Refrigerator LED Cover
258WR17X12872 GE Refrigerator Shield Insert Plenum
261WR13X10454 GE Bottom & Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X10640 GE Refrigerator White Cap Corner OC
288WR74X10271 GE Refrigerator Base Grille
432WR55X11032 GE Refrigerator Board LED Light Assembly
448GEN WR13X10451
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843WR11X10008 GE Refrigerator Lever Assembly
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
