GSE28VGBACSS FREEZER SECTION

GSE28VGBACSS FREEZER SECTION

Written by

in

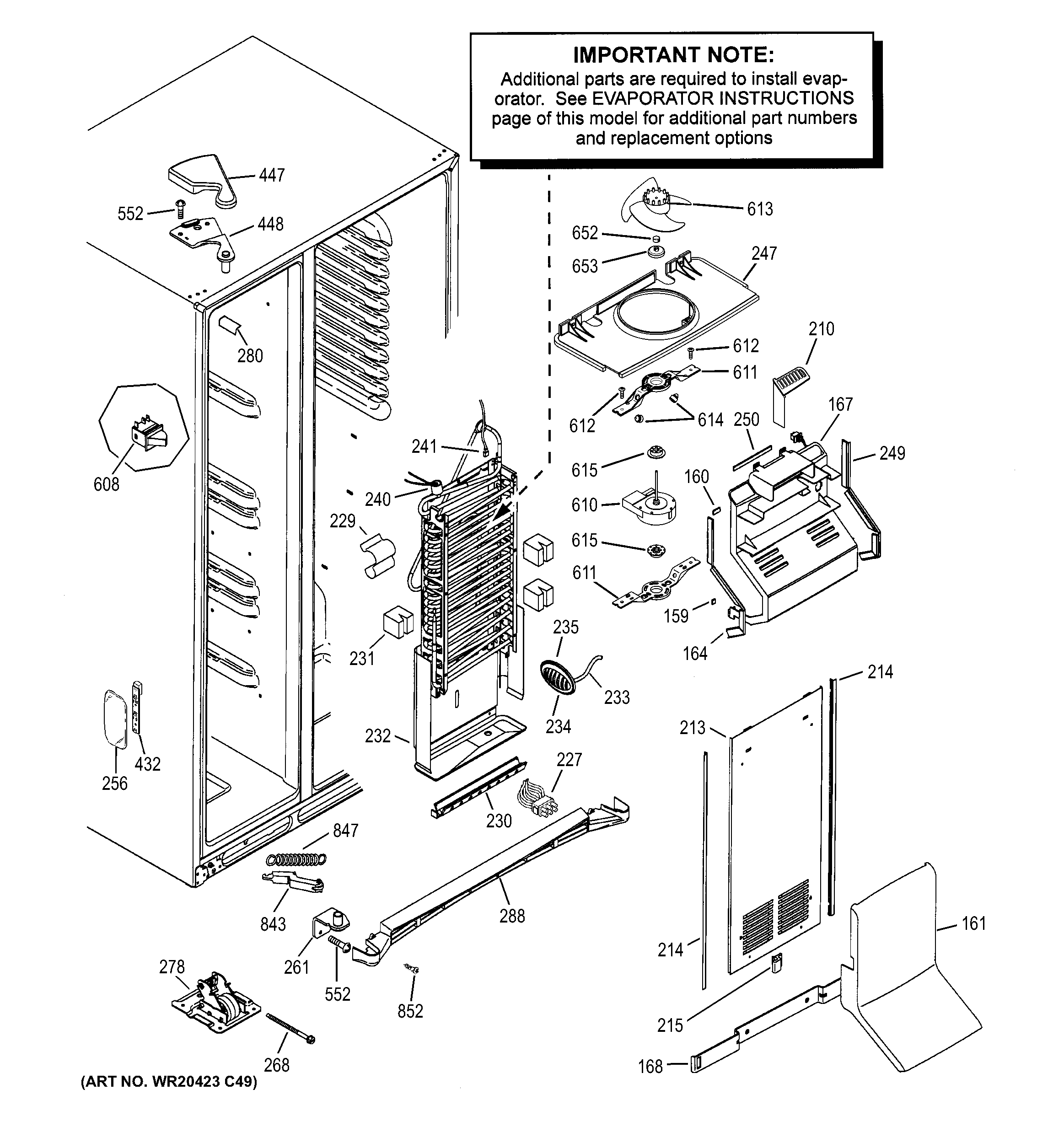

GSE28VGBACSS FREEZER SECTION

Products

PositionProduct
159WR14X10067 GE Refrigerator Adhesive Foam Strip
160WR14X10068 GE Foam Strip Adhesive
161WR17X10899 GE Refrigerator Lower Air Tower
164WR14X10164 GE Refrigerator Case Gasket
167WR17X12876 GE Refrigerator Plenum Fan Evaporator
168WR02X10674 GE Refrigerator Lower Tower Bracket
210GEN WR74X10131
213WR17X13088 GE Front Evaporator Cover
214WR14X10153 GE Refrigerator Gasket Evaporator Cover
215WR01X10211 GE Refrigerator Upper Tower Bracket
227GEN WR23X10763
229GEN WR02X10552
230WR51X10042 GE Refrigerator Heater & Bracket Assembly
231WR02X10669 GE Evaporator Seal
232WR17X10811 GE Refrigerator Shield Assembly Trough
233WR55X10025 GE Refrigerator Temperature Sensor
234WR02X10647 GE Refrigerator Grille Sensor
235WR02X10668 GE Refrigerator Shunt Sensor
240WR50X10065 GE Refrigerator Defrost Thermostat
247WR17X12642 GE Refrigerator Orifice Fan Assembly
249WR14X10165 GE Refrigerator Gasket Plenum
250WR14X10069 GE Adhesive Foam Strip
256WR17X12871 GE Refrigerator LED Cover
261WR13X10160 GE Refrigerator Bottom Hinge and Pin Assembly
268WR01X10210 GE Refrigerator Mobility Screw
278WR02X12274 GE Refrigerator Mobility Front Assembly
280WR02X12346 GE Corner Cap
288WR74X10240 GE Refrigerator Base Grille
432WR55X11032 GE Refrigerator Board LED Light Assembly
447GEN WR02X12781
448WR13X10216 GE Top Hinge and Pin Assembly
552WR01X10792 GE Refrigerator Screw 12-24 TT HX 7/8 S
608FREEZER LIGHT SWITCH
610WR60X10307 GE Refrigerator Evaporator Fan Motor
611WR17X12635 GE Refrigerator Bottom Bracket Evaporator
612WR01X10621 GE Refrigerator Screw 8-18 DG TRT20 5/8 S
613EVAPORATOR FAN BLADE
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
653WR02X10322 GE Refrigerator Dust Cap B02
843LEVER ASM FZ
847WR1X2027 GE Refrigerator Spring Closure
852WR01X10858 GE Refrigerator Screw 8-18 AB PNP 5/8 S
