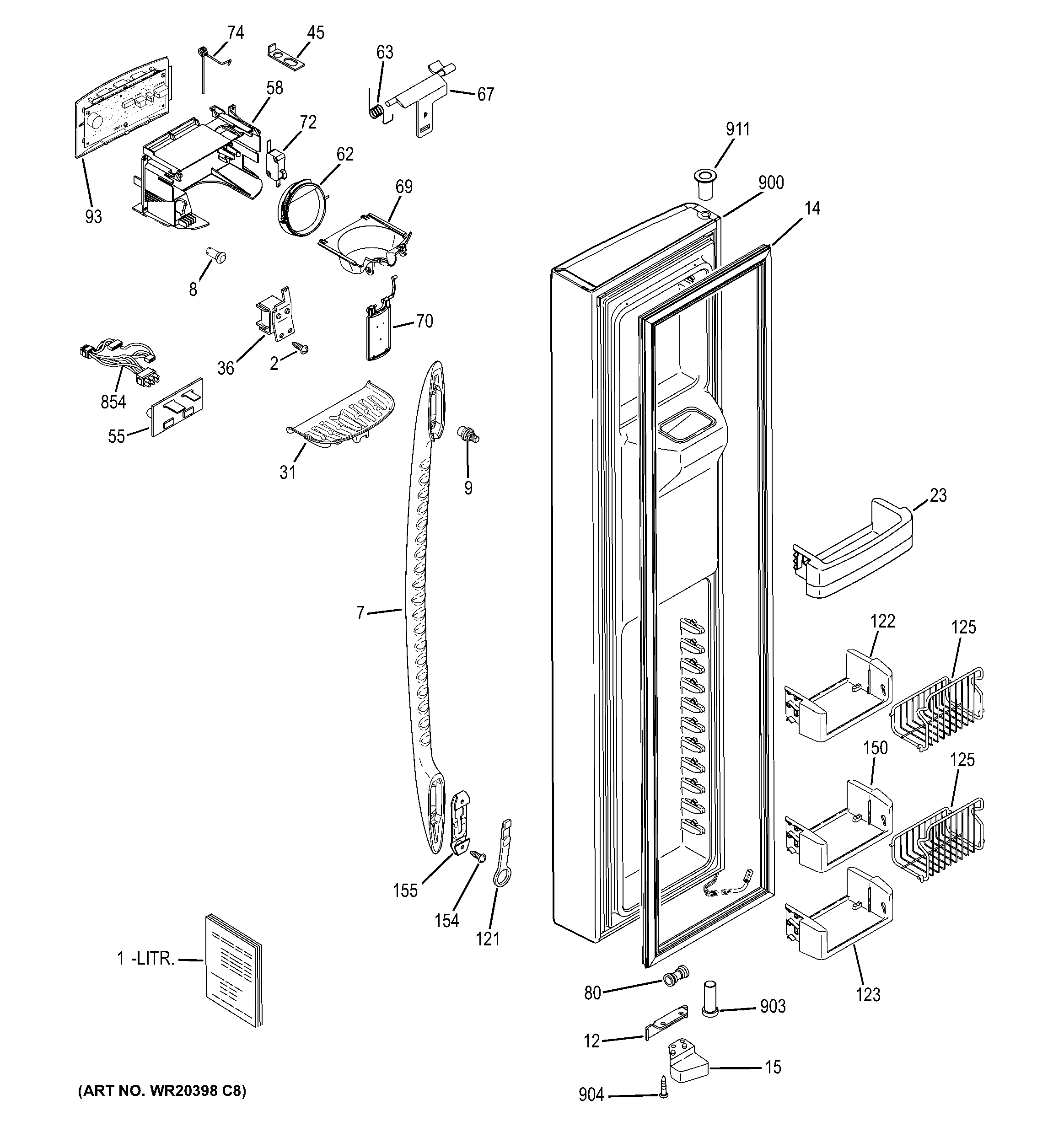

GSE30VHBATBB FREEZER DOOR

GSE30VHBATBB FREEZER DOOR

Written by

in

GSE30VHBATBB FREEZER DOOR

Products

Position	Product
1	GEN 31-46255
1	GEN 49-60667
2	WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7	GEN WR12X10825
7	WR12X10731 GE Refrigerator Handle Assembly SXS White
8	WR02X13502 GE Rivet Clinch
9	WR01X10681 GE Refrigerator Fastener Handle Stainless Steel
12	WR02X13425 GE Refrigerator Door Stop
12	WR02X13424 GE Refrigerator Door Stop
14	WR24X20455 GE Refrigerator Freezer Door Gasket
14	WR24X10156 GE Refrigerator Door Gasket White
15	WR02X10638 GE Refrigerator Cam Closure
15	WR02X10780 GE Refrigerator Cam Closure
23	WR71X10790 GE Freezer Shelf Module
31	WR17X12873 GE Refrigerator Grille Recess
31	WR17X12884 GE Refrigerator Grille Recess
36	WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45	WR2X8818 GE Refrigerator Retainer
55	WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58	GEN WR17X12487
58	WR17X12489 GE Refrigerator Dispenser Housing Shield
62	WR17X11653 GE Refrigerator Ice Door Flap Assembly
63	WR02X10585 SPRING RECES
67	WR17X10706 GE Refrigerator Door Crank Recess
69	WR17X12983 GE Refrigerator Ice Dispenser Funnel
70	PADDLE ASM
70	GEN WR17X13055
72	WR23X10783 GE Refrigerator Dispenser Micro Switch
74	WR02X12256 GE Refrigerator Torsion Spring
80	WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93	GEN WR55X10950
93	WR55X10946 GE Refrigerator Dispenser Control Assembly
121	WR02X12022 GE Refrigerator Locking Handle
122	WR71X10251 GE Freezer Module Support
125	WR21X10121 GE Freezer Wire Tilt-Out Basket
150	MODULE SUPPORT FZ
154	WR01X10632 GE Refrigerator Screw 10-18 PL PH 1/2 S
155	WR02X10643 GE Refrigerator Handle Lock Bracket
854	WR23X10665 GE Dispenser Recess Harness
900	GEN WR78X12431
900	GEN WR78X12449
903	WR01X10208 GE Refrigerator Door Thimble
903	WR01X10234 GE Freezer Bottom Thimble Door (Black)
904	WR01X10611 GE Screw
911	WR01X10956 GE Door Thimble
911	WR01X10955 GE Refrigerator Door Thimble
