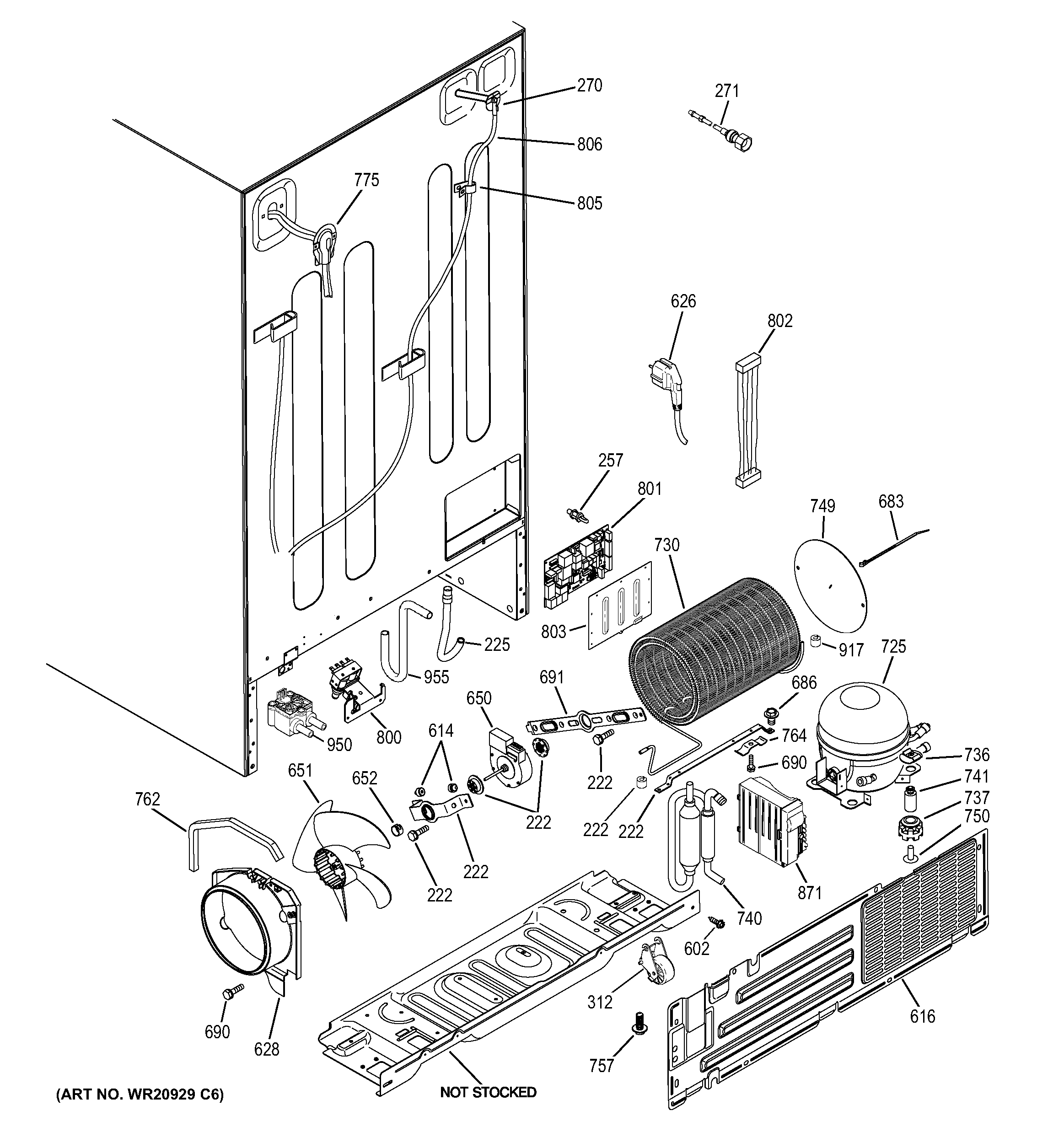

GSE30VHBATBB SEALED SYSTEM & MOTHER BOARD

GSE30VHBATBB SEALED SYSTEM & MOTHER BOARD

Written by

in

GSE30VHBATBB SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
222WR02X10666 GE Refrigerator Chill Pan Knob
225TUBE DRAIN
257WR02X10663 GE Refrigerator Standoff
270WR17X11168 GROMMET AND TUBE ASM
271WR49X10182 GE Refrigerator Service Kit Water Line
312WR02X10695 GE Refrigerator Wheel
602WR01X10617 GE Refrigerator Screw 1/4-14 AB IHW 3/4 S
614BUMPER
616GEN WR82X10100
626WR23X10468 GE Refrigerator Power Cord Assembly
628WR17X12668 GE Refrigerator Condenser Shroud
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
652WR02X12149 GE Refrigerator Ring
683WR02X11027 GE Wire Tie
686WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
725COMPRESSOR VCC3 REPL. KI
730WR84X10022 GE Refrigerator Condenser Replacement Kit
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
757WR01X10622 GE Refrigerator Screw 10-32 B IHXW 1/2
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
775WR17X13124 GE Refrigerator Water Line Cover
800WR57X10089 GE Water Valve
801GEN WR55X11170
802WR23X10504 GE Refrigerator Harness Board INDIV
803WR02X12025 GE Main Board Enclosure
805WR1X5278 GE Refrigerator Cable Clamp
806WR17X11625 GE Refrigerator Plastic Tube
871WR55X20106 GE Control Board
917WR02X13573 GE Refrigerator Sound Damper
950WR57X10069 GE Refrigerator Flow Meter
955WR02X13312 GE Refrigerator Jumper Tube Flow Meter
