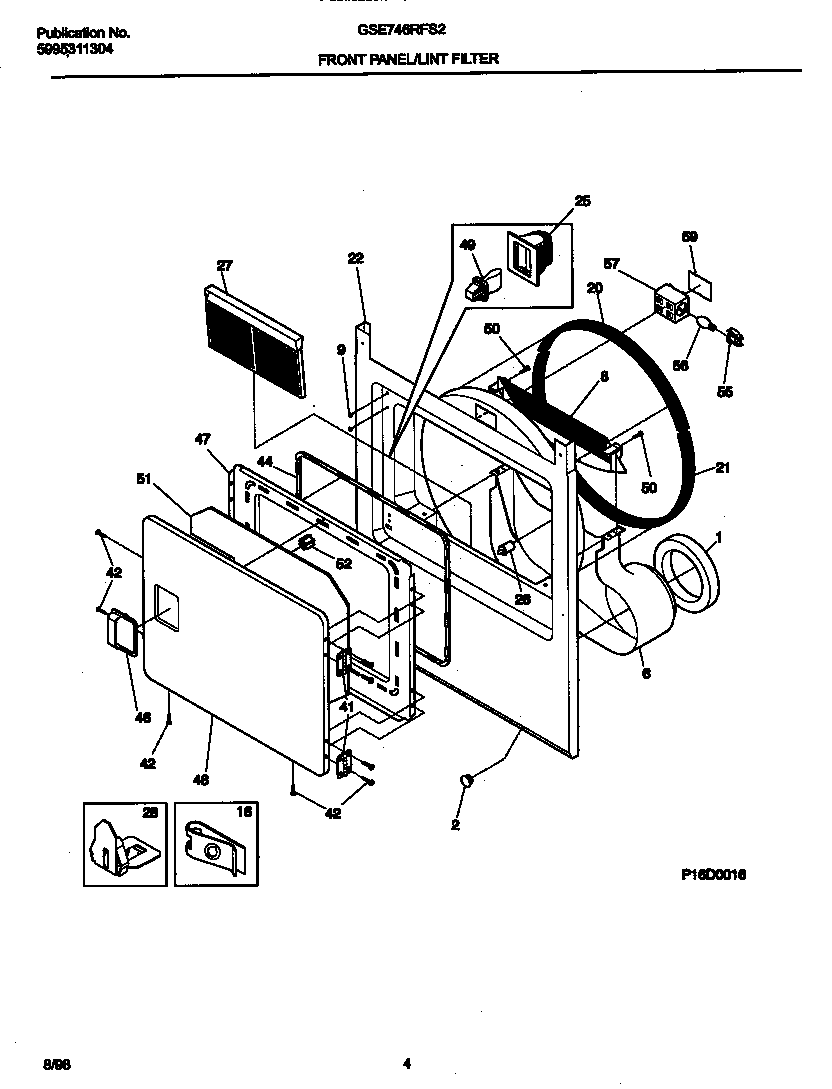

GSE746RFS2 03 – FRONT PANEL,DOOR

GSE746RFS2 03 – FRONT PANEL,DOOR

Written by

in

GSE746RFS2 03 – FRONT PANEL,DOOR

Products

PositionProduct
1134417000 Frigidaire Seal
2131397000 Frigidaire Plug
6WCI 131621900
8131622202 Frigidaire Dryer Lint Screen Housing Cover
9131633200 Frigidaire Plug
16WCI 131063700
205303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
215303283286 Frigidaire Drum Felt Seal Lower Front
22WCI 131635752
25131658800 Frigidaire Dryer Door Catch Repair Kit
26DOOR-SWITCH
27131450300 Frigidaire Dryer Lint Screen Filter
28CLIP GUIDE (4)
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131644700 Frigidaire Dryer Door Handle (White)
47WCI 131574004
48WCI 131574104
495303207102 Frigidaire Door Strike
50131302800 Frigidaire Drum Vane Screw
51WCI 131573500
52WCI 5304400861
55131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
