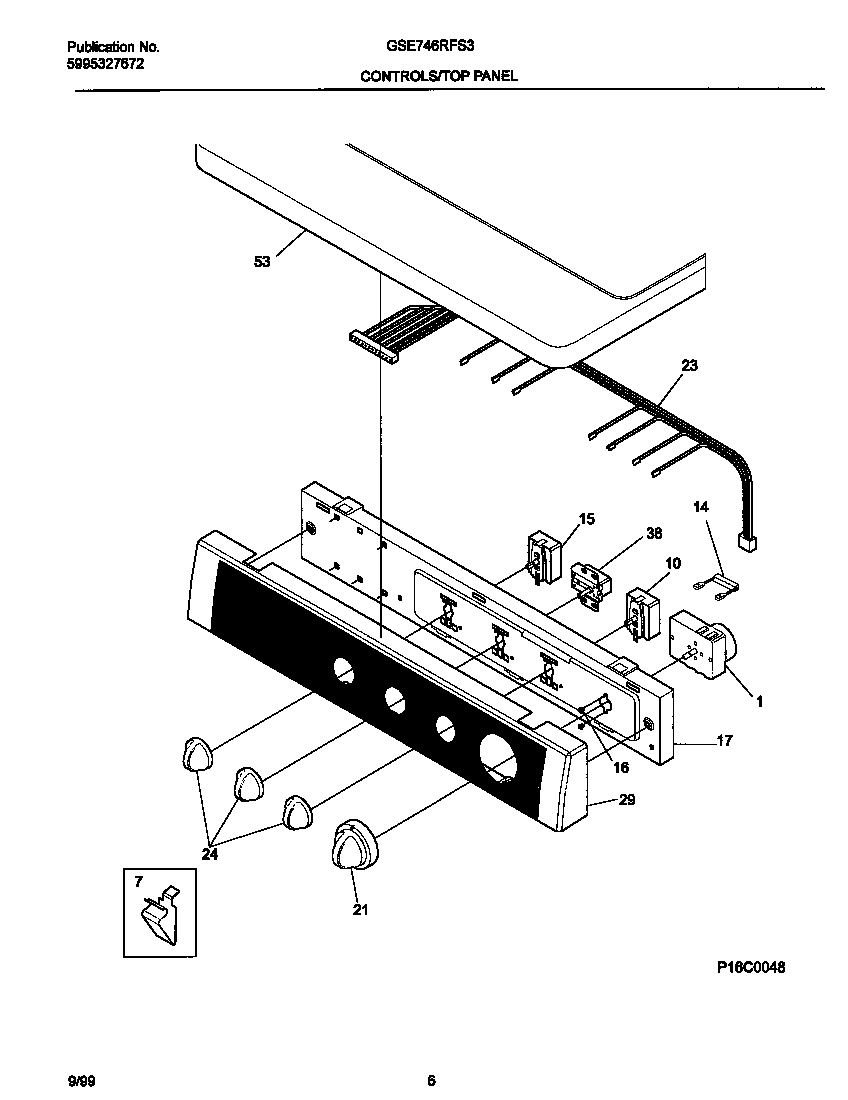

GSE746RFS3 04 – P16C0048 CONTROL PANEL

Products

Position	Product
*59566	HARNESS PRH ELEC CONTROL
1	131719100 Frigidaire Timer Assembly
7	3205821 Frigidaire Clip
10	134398300 Frigidaire Washer Dryer Turn-to-Start Switch
14	RESISTOR-POWER, 4.4K
15	WCI 131048100
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131859700
21	WCI 131264905
23	WCI 131829800
24	131965300 Frigidaire Rotary Dryer White Control Knob
29	WCI 131666905
38	WCI 131048300
53	WCI 131601308
