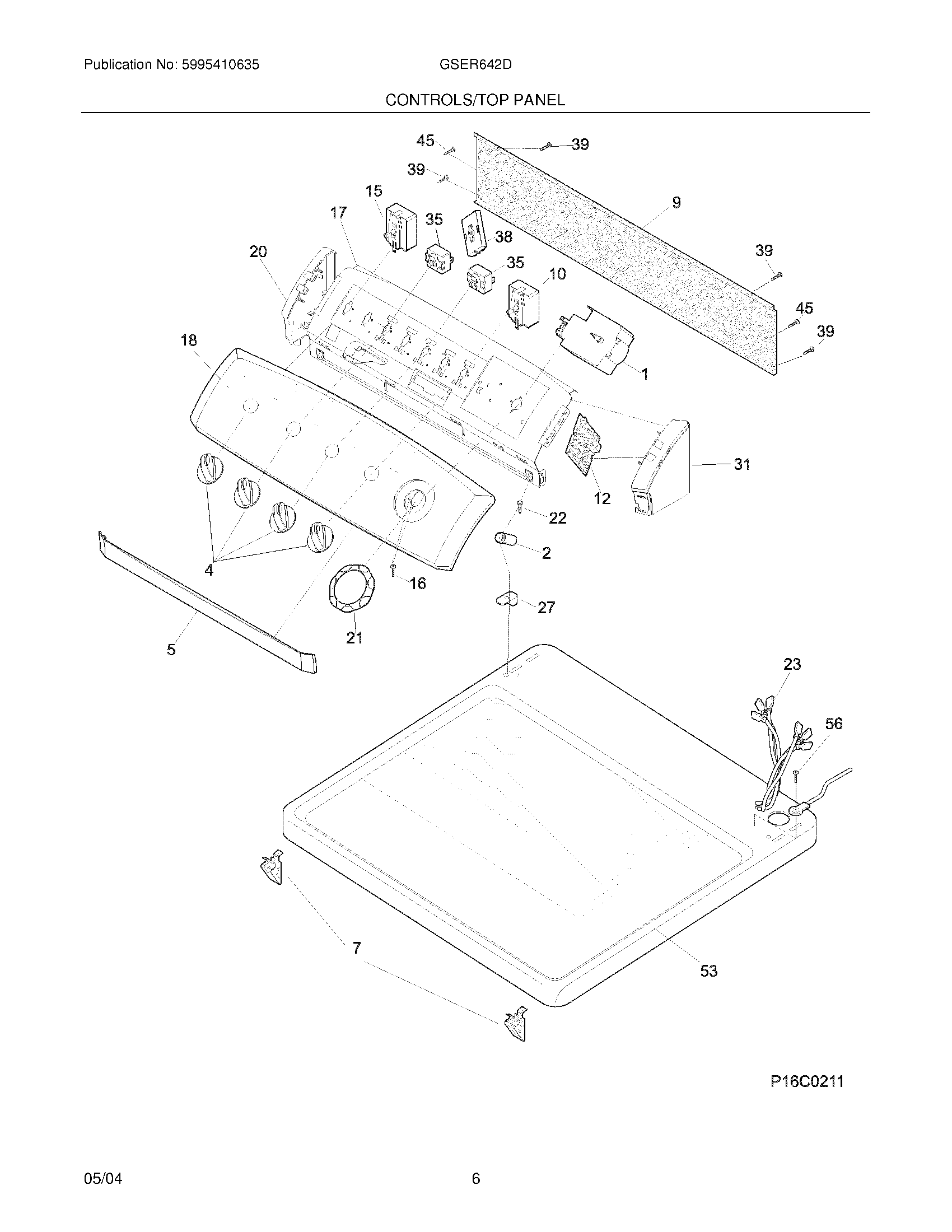

GSER642DC0 07 – CONTROLS/TOP PANEL

GSER642DC0 07 – CONTROLS/TOP PANEL

Written by

in

GSER642DC0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NI134101400 Frigidaire Dryer Kit Terminal Block
1131930600 Frigidaire Dryer Timer P1 "T"
2WCI 134096100
4WCI 134034902
5WCI 134019920
73205821 Frigidaire Clip
9WCI 131992900
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
12WCI 134216300
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17WCI 131993040
18WCI 134401900
20WCI 134019621
21134886700 Frigidaire Dryer Timer Knob
22WCI 131266330
23Harness-FSD TRHZ elec
27CLIP-CONSOLE MTG
31WCI 134019620
35Switch,2 position
38WCI 131959200
39131168200 Frigidaire Dryer Screw
45131205100 Frigidaire Screw
53WCI 134086802
56131243800 Frigidaire Screw
