GSF25JGCCBB FREEZER DOOR

GSF25JGCCBB FREEZER DOOR

Written by

in

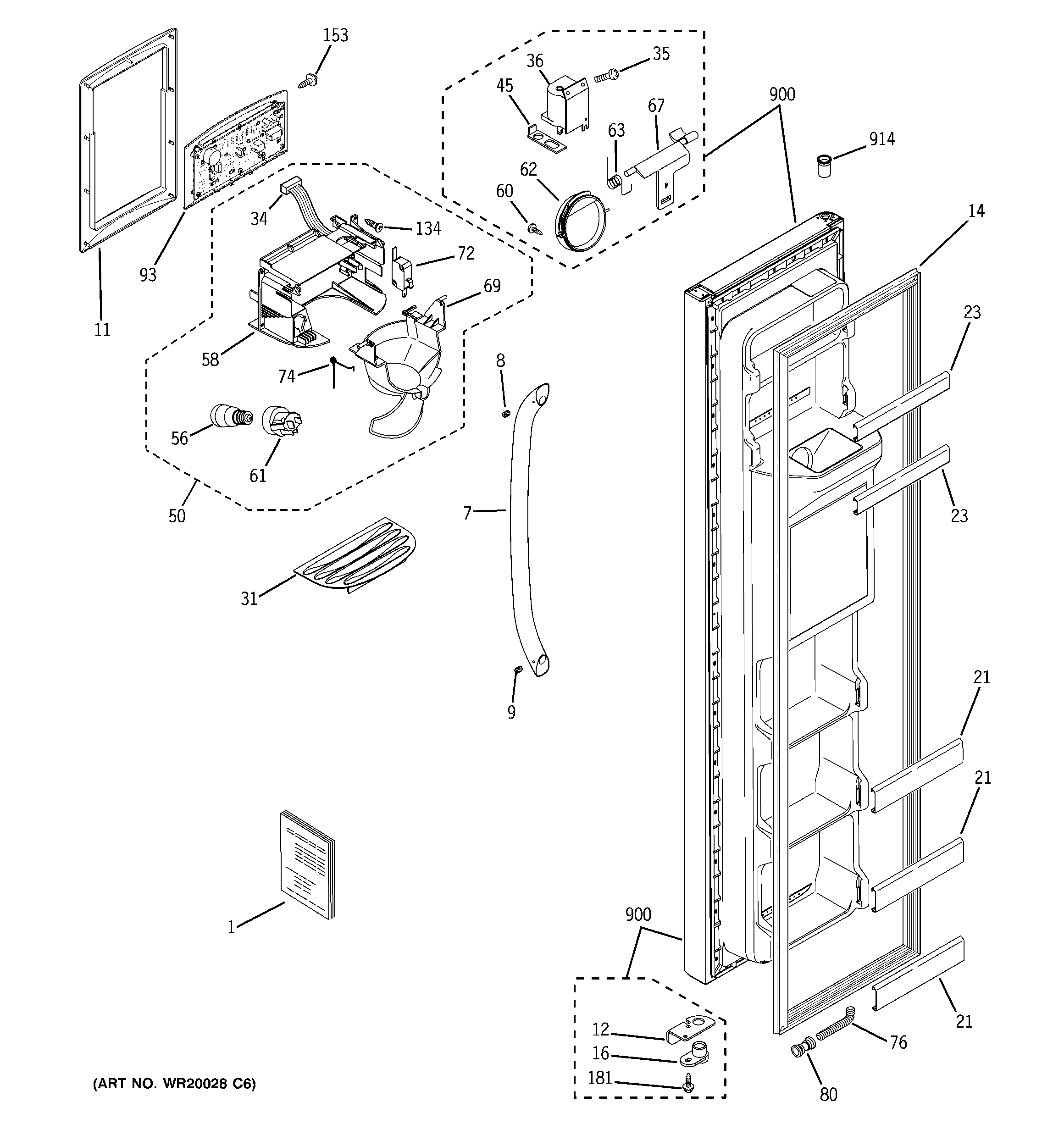

GSF25JGCCBB FREEZER DOOR

Products

PositionProduct
1GEN 49-60514
1GEN 31-51790
7TUBULAR HANDLE ASM, BB
7GEN WR12X10978
8WR02X11754 GE Refrigerator Screw Set
9WR02X12800 GE Refrigerator Stainless Steel Handle Fastener
11WR38X23216 GE Refrigerator Trim Recess
11RECESS TRIM
12GEN WR02X10576
12WR02X11466 GE Refrigerator Door Stop Plate
14WR24X10300 GE Refrigerator Door Gasket
14WR24X23252 GE Refrigerator Door Gasket
16GEN WR02X11478
21FRONT DOOR SHELF FZ
23FRONT DOOR SHELF FZ
31GEN WR17X10712
31GEN WR17X10745
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
50GEN WR49X10133
50GEN WR49X10132
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11264 GE Ice Funnel Assembly White
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X23244 GE Refrigerator Combined HMI Assembly WW 22/25'
93WR55X23236 GE Refrigerator Combined HMI Assembly BB 22/25'
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
153WR1X1505D GE Refrigerator Screw Package of 12
181SCR 10-32 F HXW 3/4 S
181WZ04X10001 GE Screw 10-32 GX HXWS 9/16"
900GEN WR78X12825
900GEN WR78X12845
914GEN WR01X10200
