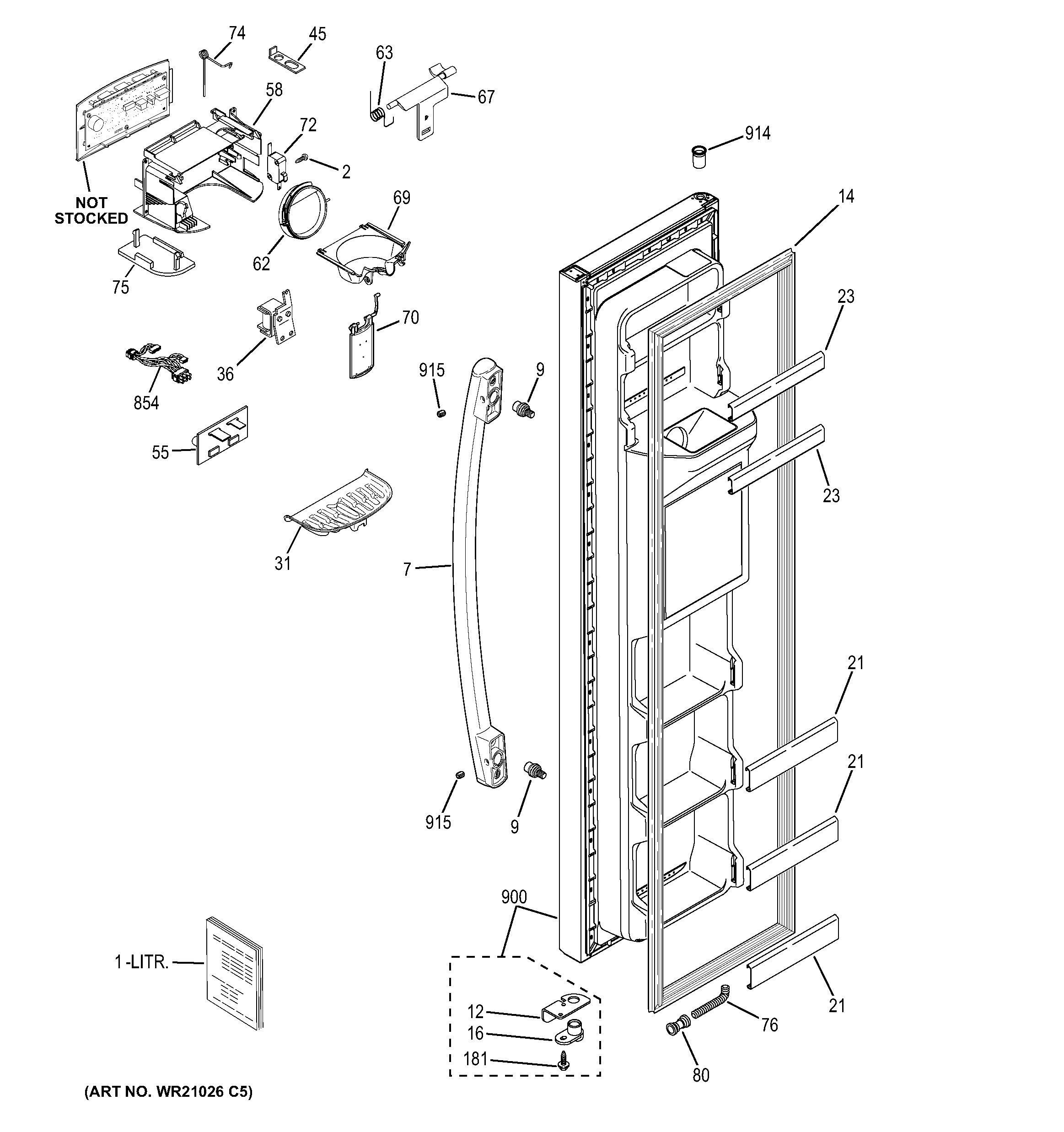

GSF25JGDS WW FREEZER DOOR

GSF25JGDS WW FREEZER DOOR

Written by

in

GSF25JGDS WW FREEZER DOOR

Products

PositionProduct
1GEN 49-60514
1GEN 31-51790
2WR02X12257 GE Refrigerator Stainless Steel Screw 4-10 PL PNP 3/4
7WR12X20439 GE White Handle Arc
9WR01X11007 GE Refrigerator Fastener Door Handle
12GEN WR02X10576
14WR24X10300 GE Refrigerator Door Gasket
16GEN WR02X11478
21FRONT DOOR SHELF FZ
23FRONT DOOR SHELF FZ
31WR17X12884 GE Refrigerator Grille Recess
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
55WR55X10899 GE Refrigerator Dispenser Lighting Board Assembly
58WR17X34287 GE Refrigerator Dispenser Housing Shield White
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X12120 GE Refrigerator Ice Dispenser Funnel
70WR17X12886 GE Refrigerator Paddle Assembly
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74WR02X12256 GE Refrigerator Torsion Spring
75WR02X13405 GE Refrigerator Cover LED Housing Shield
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
181SCR 10-32 F HXW 3/4 S
854WR23X10695 GE Refrigerator Harness Recess Dispenser
900GEN WR78X21316
914GEN WR01X10200
915WR01X20424 GE Refrigerator Screw
