GSF26C4EXW02 04 – FREEZER LINER PARTS

GSF26C4EXW02 04 – FREEZER LINER PARTS

Written by

in

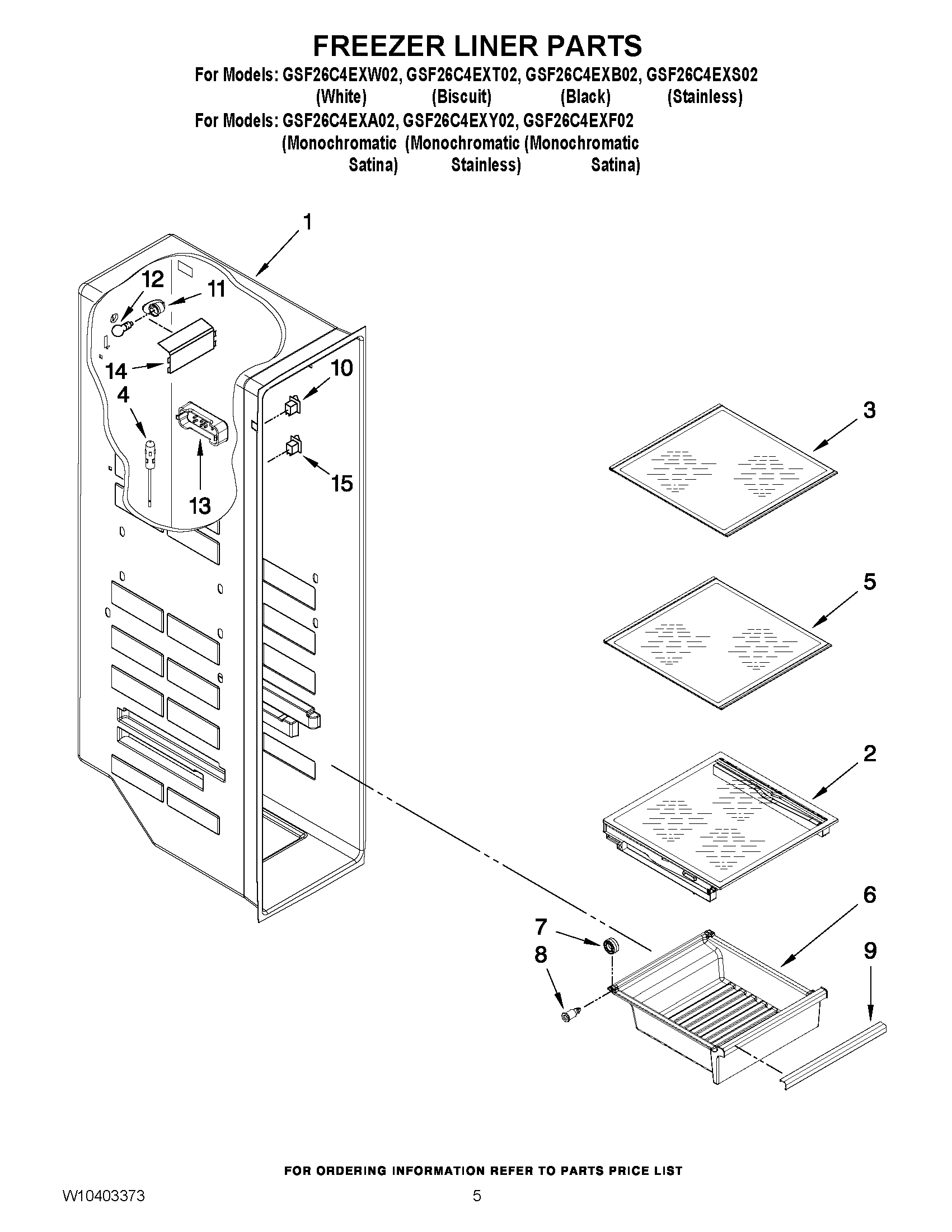

GSF26C4EXW02 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10269181 Whirlpool Refrigerator Cover
3SHELF, GLASS UPPER
4THERMISTOR
5SHELF, GLASS LOWER
6WPW10260985 Whirlpool Refrigerator Freezer Bin
7W11164152 Whirlpool Drawer Roller
8WPW10257246 Whirlpool Refrigerator Axle
9W11236850 Whirlpool Refrigerator Pan Trim
10W11457217 Whirlpool Refrigerator Rocker Switch Combination
114387478 Whirlpool Refrigerator Light Socket
12W11679940 Whirlpool Refrigerator Light Bulb Assembly
13W10425253 Whirlpool Refrigerator Cover
14WPW10269101 Whirlpool Refrigerator Light Lens
15W11123943 Whirlpool Refrigerator Switch
