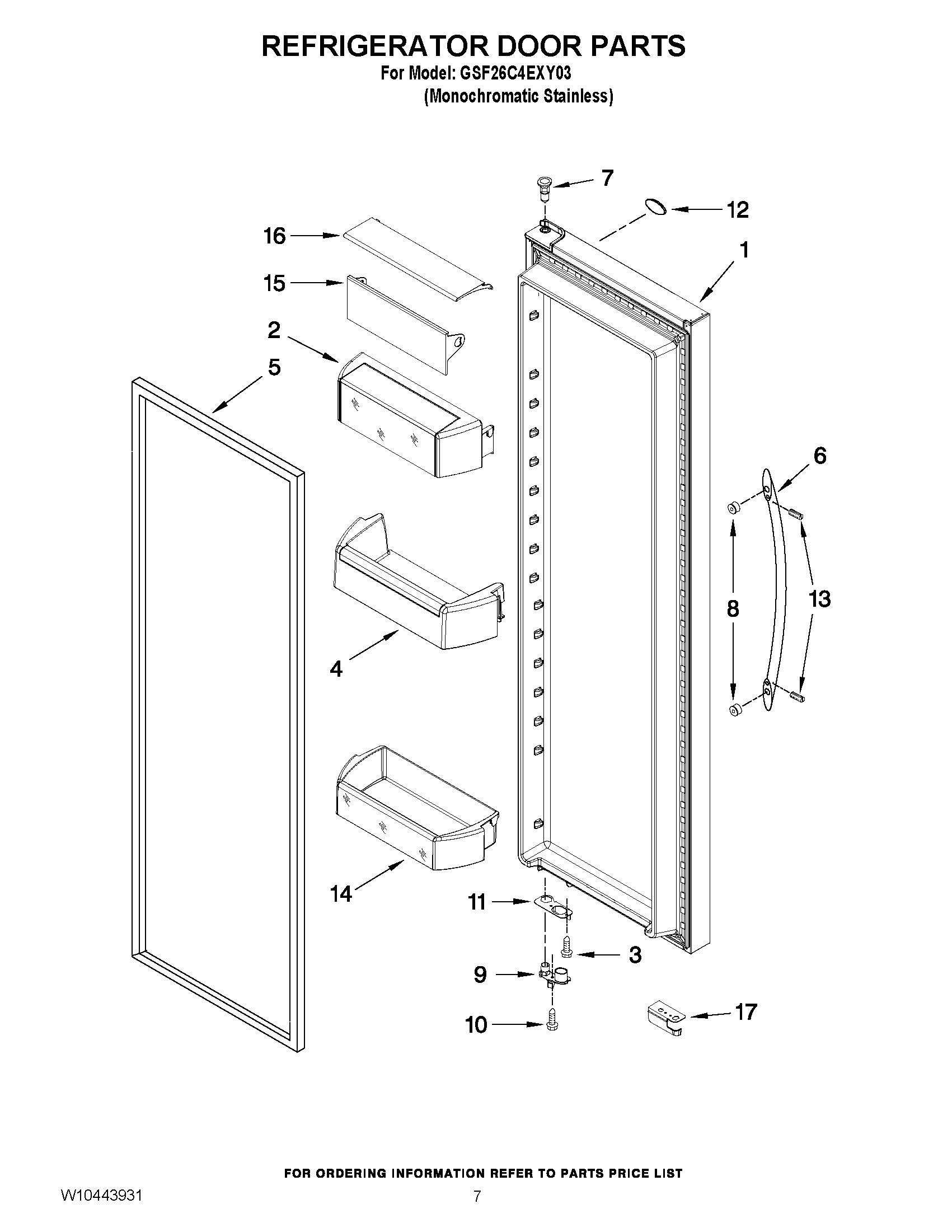

GSF26C4EXY03 06 – REFRIGERATOR DOOR PARTS

GSF26C4EXY03 06 – REFRIGERATOR DOOR PARTS

Written by

in

GSF26C4EXY03 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM 5) (MONO STAINLESS)
2WPW10324760 Whirlpool Refrigerator Door Shelf Bin
3SCREW
4WPW10296855 Whirlpool Refrigerator Door Bin
5W10355582 Whirlpool Refrigerator Door Gasket
6WPW10670421 Whirlpool Refrigerator Handle
7WP2182181 Whirlpool Refrigerator Thimble
8WPW10170540 Whirlpool Screw
9WPW10257203 Whirlpool Refrigerator Lower Door Closing Cam
10WPW10296804 Whirlpool Refrigerator Screw
11W11037957 Whirlpool Refrigerator Bracket
12Nameplate
13SCREW
14WPW10335220 Whirlpool Refrigerator Cantilever Bin
15WPW10316885 Whirlpool Refrigerator Compressor Door
16WPW10316883 Whirlpool Refrigerator Door Compressor
17W11661847 Whirlpool Wire Cover
