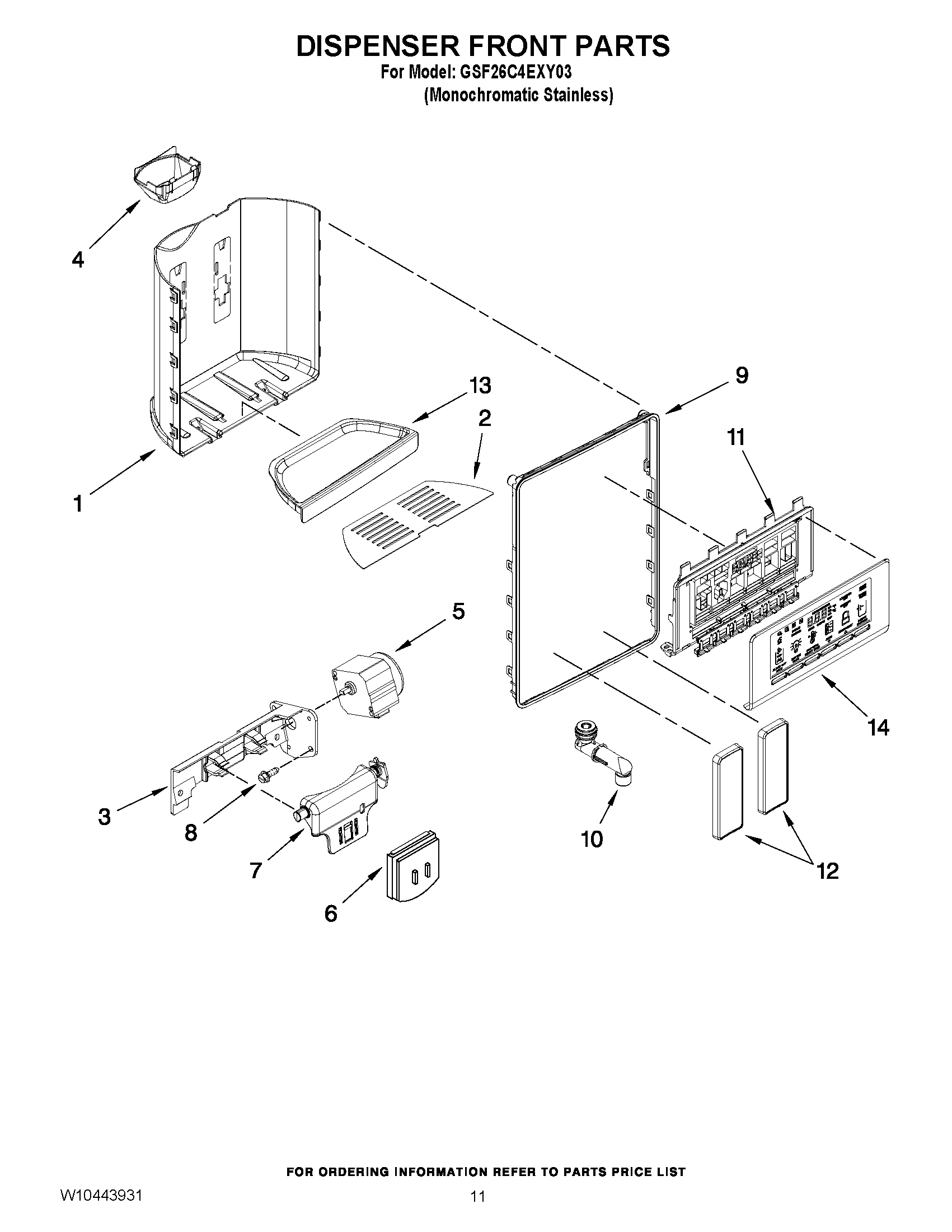

GSF26C4EXY03 08 – DISPENSER FRONT PARTS

GSF26C4EXY03 08 – DISPENSER FRONT PARTS

Written by

in

GSF26C4EXY03 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276197 Whirlpool Refrigerator Grille
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7W10174827 Whirlpool Refrigerator Bracket
8WP4449745 Whirlpool Screw
9TRIM RING
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10372206-includeCORE Whirlpool WPW10372206 Refrigerator Electronic Control Board + Core
12WPW10370594 Whirlpool Refrigerator Pad
13WPW10276196 Whirlpool Grille
14WPW10254285 Whirlpool Refrigerator Escutcheon
