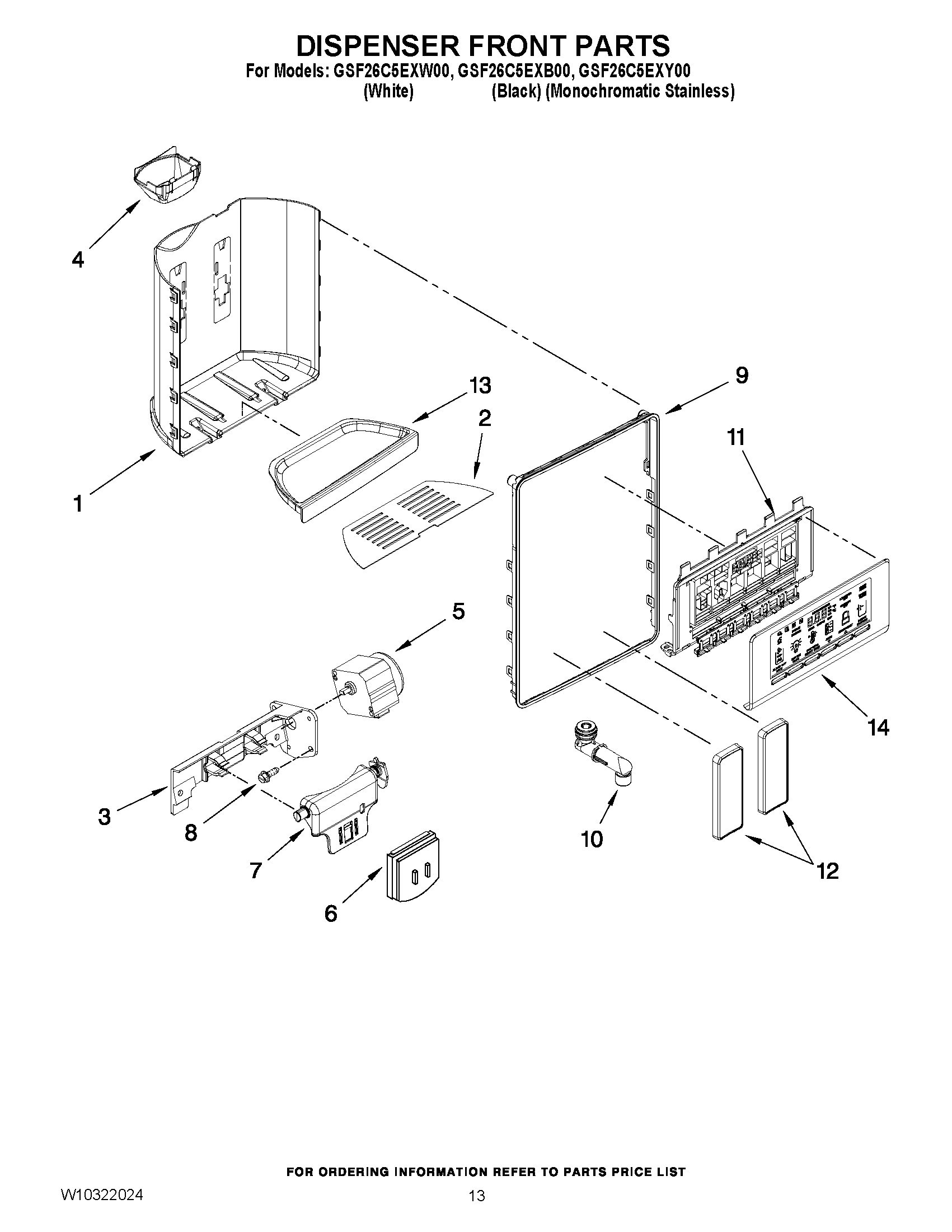

GSF26C5EXB00 08 – DISPENSER FRONT PARTS

GSF26C5EXB00 08 – DISPENSER FRONT PARTS

Written by

in

GSF26C5EXB00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WPW10276197 Whirlpool Refrigerator Grille
3W10174827 Whirlpool Refrigerator Bracket
4WPW10435760 Whirlpool Refrigerator Ice Guide
5WPW10205978 Whirlpool Motor
6WPW10493172 Whirlpool Refrigerator Ice Door
7WPW10346124 Whirlpool Refrigerator Support
8WP4449745 Whirlpool Screw
9TRIM RING
9WPW10276186 Whirlpool Refrigerator Dispenser Trim
10WP2305235 Whirlpool Refrigerator Spigot
11WPW10372206-includeCORE Whirlpool WPW10372206 Refrigerator Electronic Control Board + Core
12WPW10370592 Whirlpool Refrigerator Pad
12WPW10370594 Whirlpool Refrigerator Pad
12WPW10370593 Whirlpool Refrigerator Pad
13W10276194 Whirlpool Refrigerator Drip Tray
13W10276193 Whirlpool Refrigerator Disp Tray
13WPW10276196 Whirlpool Grille
14WPW10254285 Whirlpool Refrigerator Escutcheon
