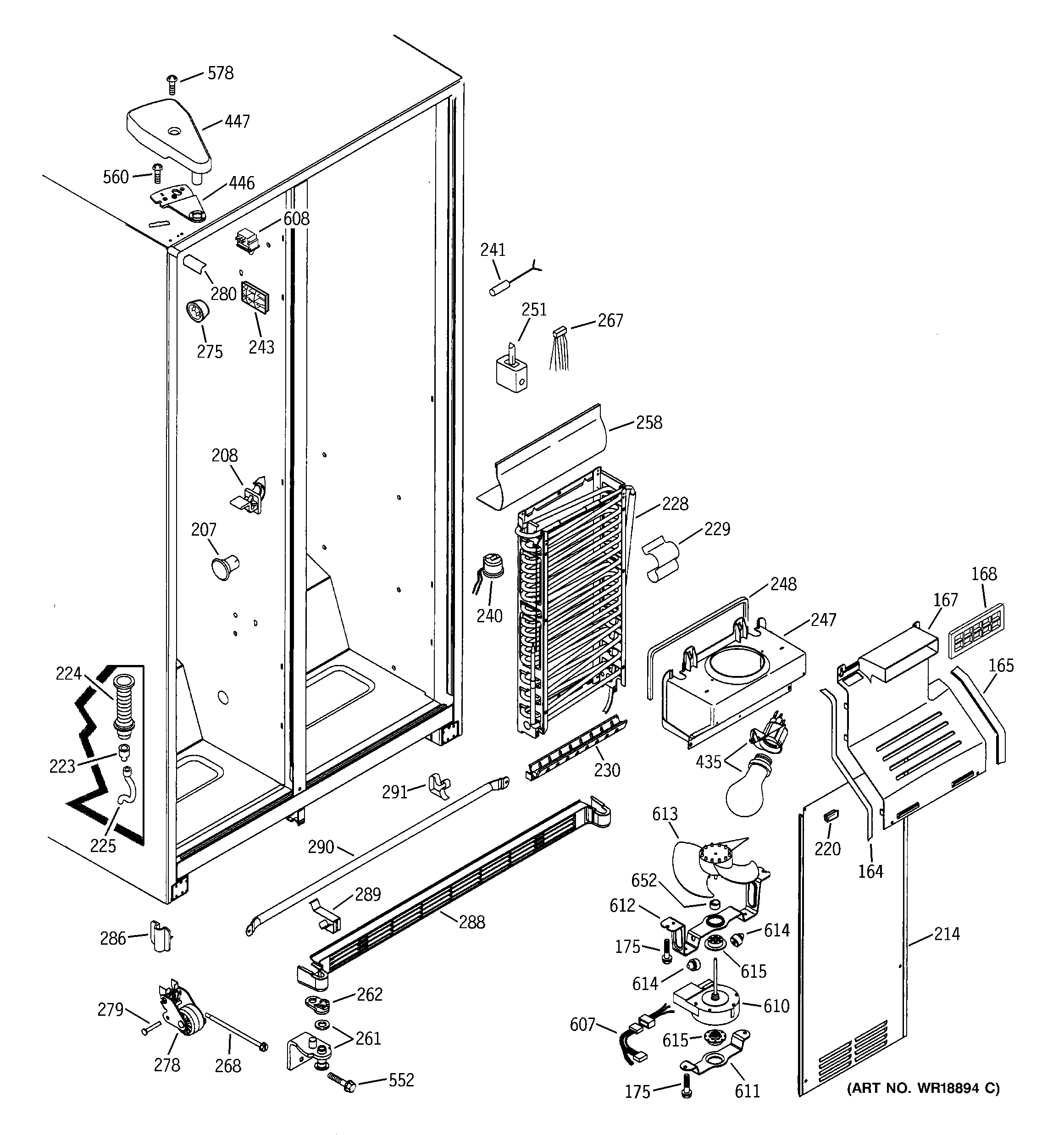

GSG22KBMBFWW FREEZER SECTION

GSG22KBMBFWW FREEZER SECTION

Written by

in

GSG22KBMBFWW FREEZER SECTION

Products

PositionProduct
164GEN WR14X10049
165GEN WR14X10048
167GEN WR17X11003
168GEN WR17X11004
175SCR 8-18 AB IHW 5/8 S
175WR01X10652 GE Refrigerator Screw 8-18 AB IHW 5/8 S
207GEN WR02X4676
208GEN WR02X4674
214GEN WR17X10894
214GEN WR01X10064
214GEN WR02X10694
214GEN WR14X10054
220GEN WR02X9002
223GEN WR02X10698
224GEN WR02X10563
225GEN WR01X5042
225GEN WR02X10699
228WR87X28949 GE Refrigerator Evaporator
229GEN WR02X10552
230GEN WR51X10048
240WR50X10068 GE Refrigerator Defrost Thermostat
241WR55X10025 GE Refrigerator Temperature Sensor
243GEN WR17X10842
247GEN WR17X10755
248GEN WR14X10050
251GEN WR02X10632
258GEN WR17X10765
261GEN WR01X10202
261GEN WR13X10120
262GEN WR02X10568
267GEN WR23X10214
268GEN WR01X10199
275WR02X10693 GE Refrigerator Plug Cover and Gasket Assembly
278WR02X12454 GE Refrigerator Mobility Front Assembly
279GEN WR02X10574
280GEN WR02X10549
286GEN WR17X10728
288GEN WR74X10058
289GEN WR02X10560
290GEN WR17X10762
291GEN WR02X10589
435WR02X12207 GE Refrigerator Net Bulb Light
435WR2X9014 GE Refrigerator Socket & Terminal C02
446GEN WR13X10157
447GEN WR02X10555
552WR01X10600 GE Refrigerator Screw 12-24 Tapping Hex .811 S Z
560GEN WR01X10195
578WZ2X464D GE Screw
607GEN WR23X10215
608FREEZER LIGHT SWITCH
610WR60X10185 GE Refrigerator Evaporator Fan Motor
611WR02X10764 GE Refrigerator Evaporator Bracket
612GEN WR02X10547
613BLADE EVAP FAN ASM
614BUMPER
615WR02X12008 GE Refrigerator Evaporator Fan Grommet
652WR02X12149 GE Refrigerator Ring
