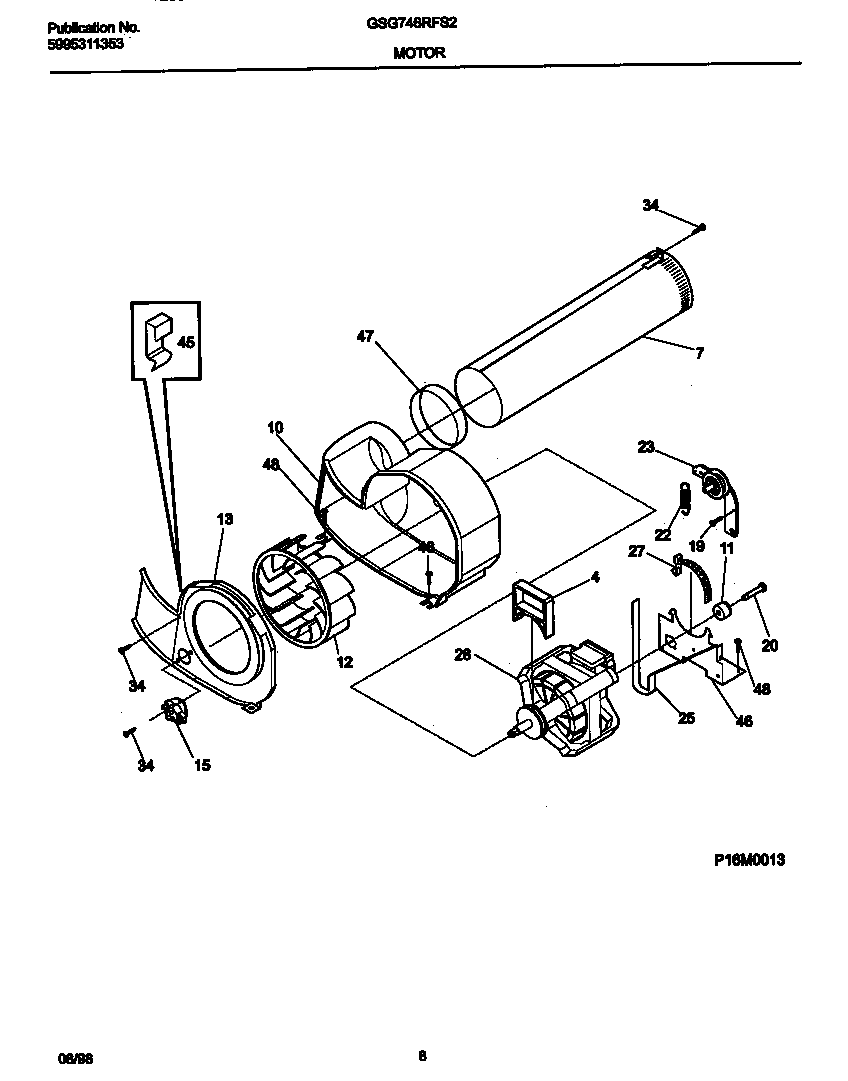

GSG746RFS2 05 – MOTOR,BLOWER

GSG746RFS2 05 – MOTOR,BLOWER

Written by

in

GSG746RFS2 05 – MOTOR,BLOWER

Products

PositionProduct
*00642Tube,exhaust ,side/bottom ,Optional Kit
4131435200 Frigidaire Fan Housing Lock
7Tube,exhaust ,rear ,w/mtg bracket
11WCI 131553600
13131967600 Frigidaire Blower Kit
15WCI 131298400
19131205300 Frigidaire Screw
20131017900 Frigidaire Screw
22131601000 Frigidaire Idler Spring Assembly
23131863007 Frigidaire Washer Idler Pulley Assembly
25134503600 Frigidaire Dryer Belt
27WCI 131419800
28131560100 Frigidaire Dryer Drive Motor with Pulley
34131243700 Frigidaire Screw
45WCI 131618200
46WCI 131601100
47WCI 131633300
48131168200 Frigidaire Dryer Screw
