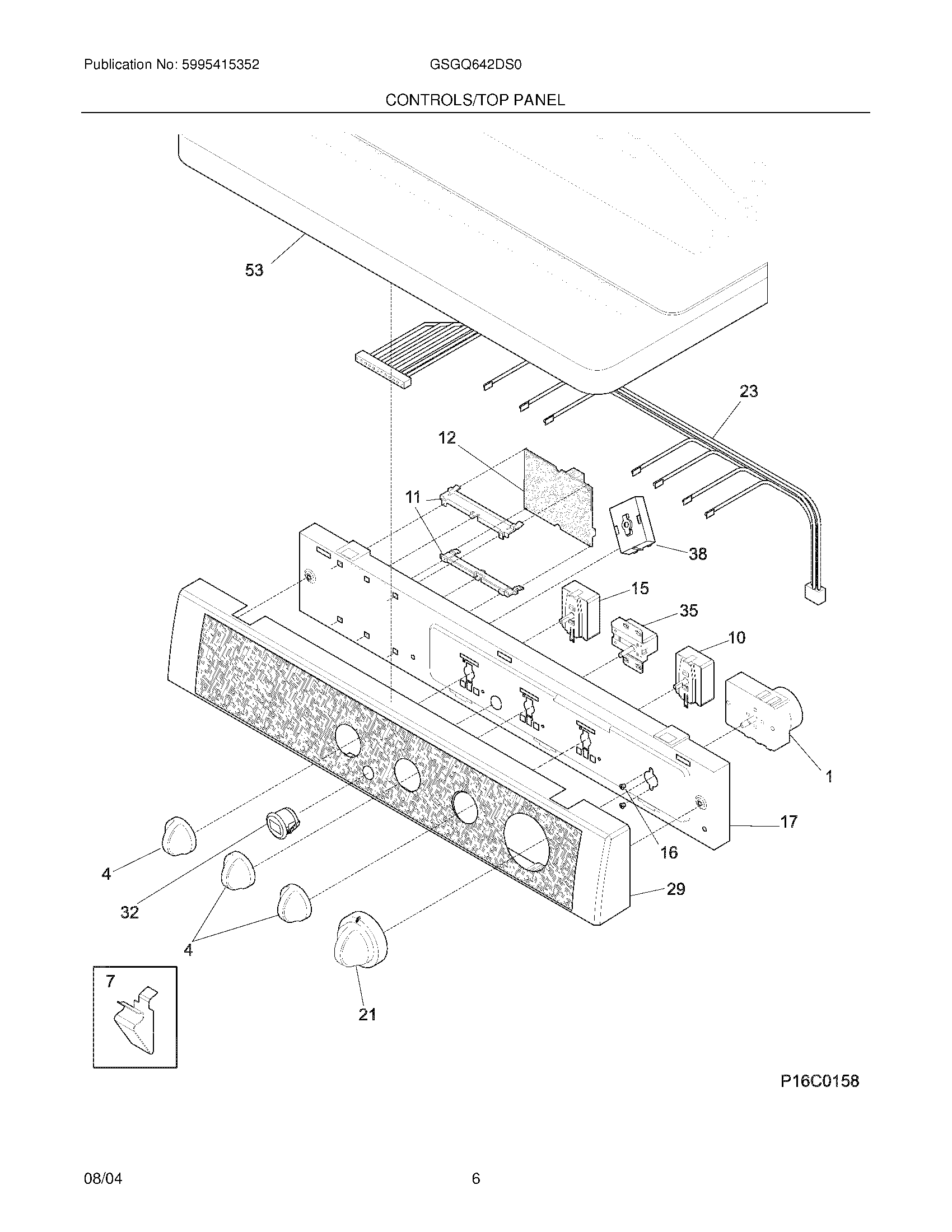

GSGQ642DS0 07 – CONTROLS/TOP PANEL

GSGQ642DS0 07 – CONTROLS/TOP PANEL

Written by

in

GSGQ642DS0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIHARNESS-MAIN
NI134101400 Frigidaire Dryer Kit Terminal Block
1131930600 Frigidaire Dryer Timer P1 "T"
2131168200 Frigidaire Dryer Screw
4134042800 Frigidaire Washer Rotary Knob
73205821 Frigidaire Clip
10134398300 Frigidaire Washer Dryer Turn-to-Start Switch
11BRACKET-CONTROL BOARD
12WCI 134216300
15WCI 131641900
16218359202 Frigidaire Refrigerator Screw
17BRKT-CONT MTG-STACK DRYER
21DRYER TIMER KNOB WHITE
23Wiring Harness,controls
255303015671 Frigidaire Bracket Termination Screw
26131205100 Frigidaire Screw
29WCI 131666943
32134040800 Frigidaire Switch
34131243700 Frigidaire Screw
35Switch,2 position
38WCI 131959200
53PANEL-TOP WHITE
