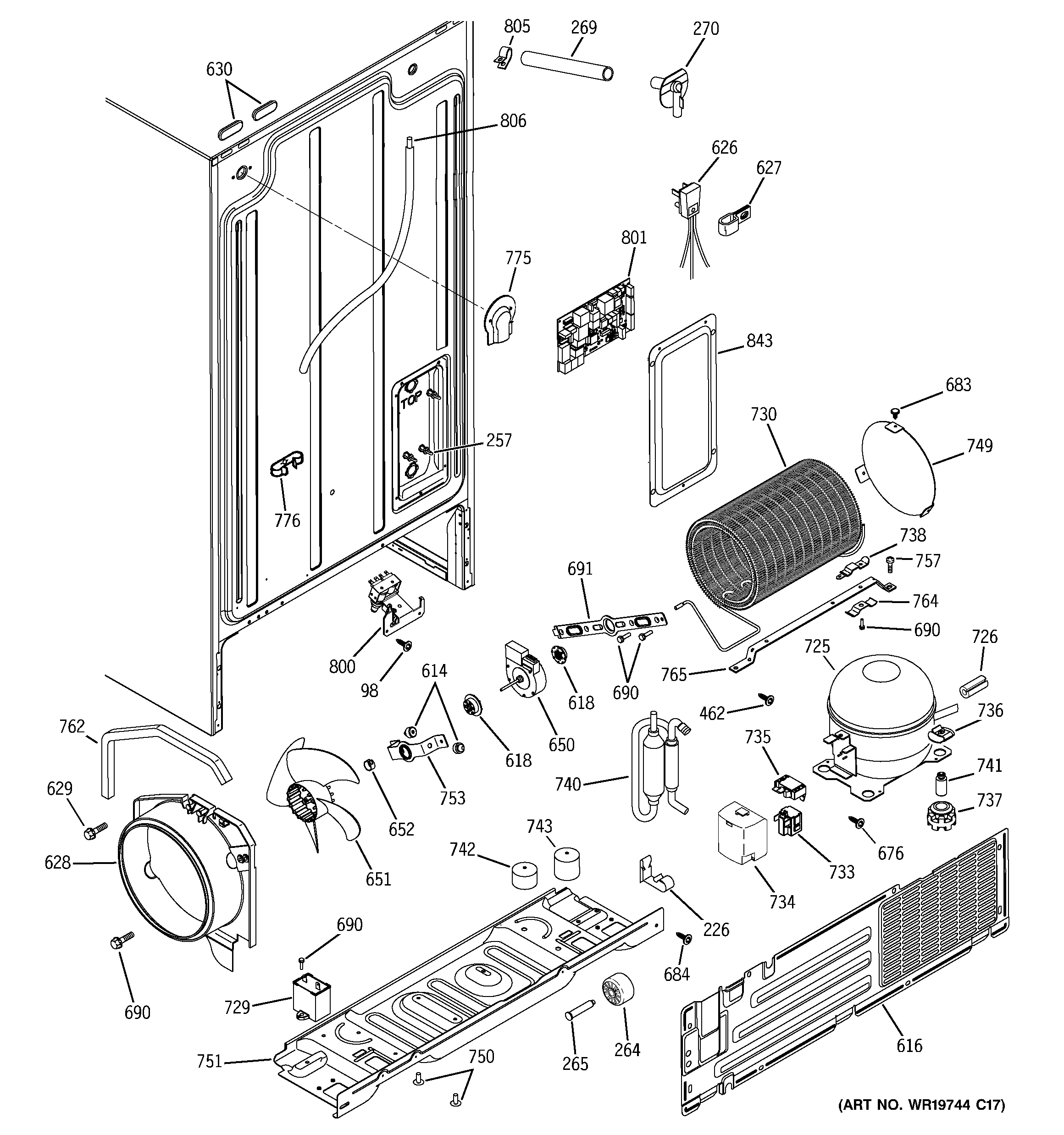

GSH22JFRJWW SEALED SYSTEM & MOTHER BOARD

GSH22JFRJWW SEALED SYSTEM & MOTHER BOARD

Written by

in

GSH22JFRJWW SEALED SYSTEM & MOTHER BOARD

Products

PositionProduct
98WR1K1 GE Screw 8-36 T
226WR02X10558 GE Refrigerator Drain Tube Clip
257FASTENER BOARD
264WR02X10695 GE Refrigerator Wheel
265GEN WR01X10039
270WR17X11168 GROMMET AND TUBE ASM
462GEN WZ06X0136
614BUMPER
616WR82X10108 GE Refrigerator Access Cover
618GROMMET EVAP
626WR23X10300 GE Refrigerator Power Cord Assembly
627WR1X5278 GE Refrigerator Cable Clamp
628WR17X35527 GE Refrigerator Condenser Fan Shroud
628GEN WR17X11650
629WH02X10126 GE Screw 8-18 B 1HW 1/2 SN
630WR2X4097 GE Button Plug
650WR60X10220 GE Refrigerator Condenser Fan Motor
650WR60X10209 GE Refrigerator DC Condenser Fan Motor
651WR60X24484 GE Refrigerator Condenser Fan Blade
651WR60X10207 GE Refrigerator Fan Blade
652WR02X12149 GE Refrigerator Ring
676WD2X5166 GE Dishwasher Screw
683WR02X10562 GE Push Fastener
684GEN WB01T10047
690WZ5X158D GE Screw Package of 12
691WR02X10593 GE Refrigerator Bracket Condenser Fan (Rear)
691WR02X11742 GE Refrigerator Bracket Condenser Fan
725WR87X20798 GE Refrigerator High Side Assembly
726GEN WR82X10086
729WR55X24064 GE Refrigerator Run Capacitor
730WR84X10022 GE Refrigerator Condenser Replacement Kit
733GEN WR07X10024
734GEN WR02X10556
735WR09X10107 GE Refrigerator PTC Overload 5SP
735GEN WR08X10056
736GEN WR02X8203
737WR02X22869 GE Refrigerator Grommet
738WR2X7064 GE Refrigerator Condenser Clip
740WR86X25269 GE Refrigerator R134 Dryer
741WR1X1779 GE Refrigerator Stud Mounting Compressor
742GEN WR02X10587
743GEN WR02X10588
749WR17X13159 GE Refrigerator Baffle Condenser Air
750WR1X1786 GE Refrigerator Screw
751GEN WR17X10753
753GEN WR02X11621
753WR02X11863 GE Refrigerator Condenser Fan Bracket (Mounting)
753BRACKET EVAP FAN
757WR01X10654 GE Refrigerator Screw 10-32 TT HXW 5/16 S
762WR14X10053 GE Refrigerator Foam Strip Adhesive
764WR2X9000 GE Refrigerator Condenser Clip
765WR17X10763 GE Condenser Bracket Bar
775WR17X13124 GE Refrigerator Water Line Cover
776WR02X10522 GE Refrigerator Clamp Tube
800WR57X33326 GE Refrigerator Water Inlet Valve
801WR55X10942C-includeCORE GE WR55X10942C Refrigerator Main Control + Core
806WR17X11625 GE Refrigerator Plastic Tube
843GEN WR17X12077
