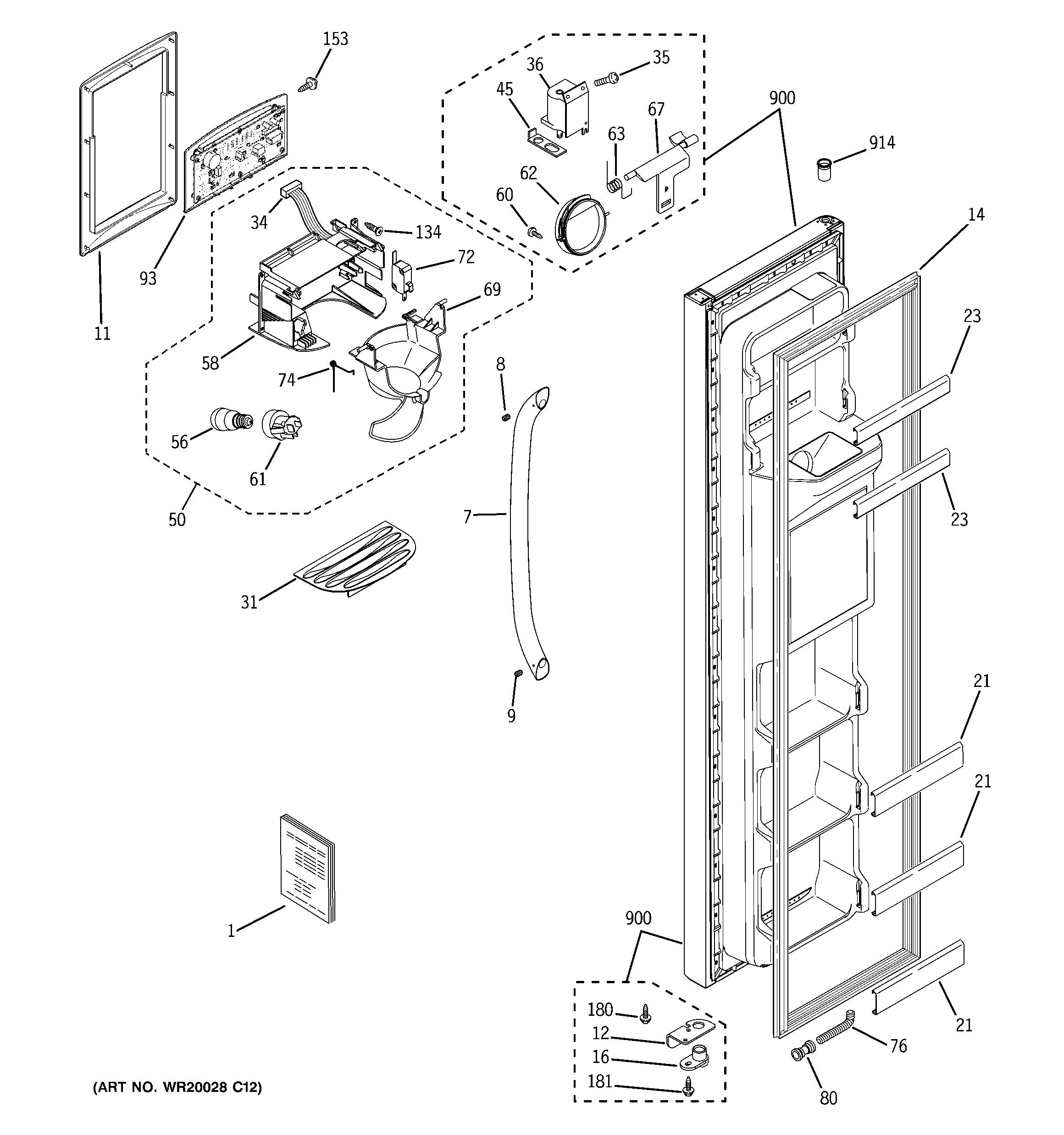

GSH22JGCECC FREEZER DOOR

GSH22JGCECC FREEZER DOOR

Written by

in

GSH22JGCECC FREEZER DOOR

Products

PositionProduct
1GEN 31-51790
1GEN 49-60514
7GEN WR12X10989
7GEN WR12X10991
7GEN WR12X10992
8WR02X11754 GE Refrigerator Screw Set
9GEN WR01X10838
11WR38X23216 GE Refrigerator Trim Recess
11RECESS TRIM
11RECSS TRM BQ
12GEN WR02X10576
12WR02X11466 GE Refrigerator Door Stop Plate
12PLATE DOOR STOP FF
14WR24X10302 GE Refrigerator Door Gasket
14WR24X23195 GE Refrigerator Door Gasket 20/22'
16GEN WR02X11478
21WR17X12069 GE Refrigerator Front Door Shelf
23FRONT DOOR SHELF FZ
31GEN WR17X10745
31GEN WR17X10712
31GRILL RECESS BISQUE
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
50GEN WR49X10133
50GEN WR49X10134
50GEN WR49X10132
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
61WR2X9561 GE Refrigerator Lamp Socket
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11269 GE Refrigerator FunnelL Ice Bisque Display BIS
69WR17X11267 GE Refrigerator Ice Dispenser Funnel
69WR17X11264 GE Ice Funnel Assembly White
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X23236 GE Refrigerator Combined HMI Assembly BB 22/25'
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
153WR1X1505D GE Refrigerator Screw Package of 12
180GEN WR01X10759
181WZ04X10001 GE Screw 10-32 GX HXWS 9/16"
900DOOR ASM FOAM FZ BK
900DOOR ASM FOAM FZ BQ
900DR ASM FOAM FZ 22 WH
914GEN WR01X10200
