GSH22JGDD CC FREEZER DOOR

GSH22JGDD CC FREEZER DOOR

Written by

in

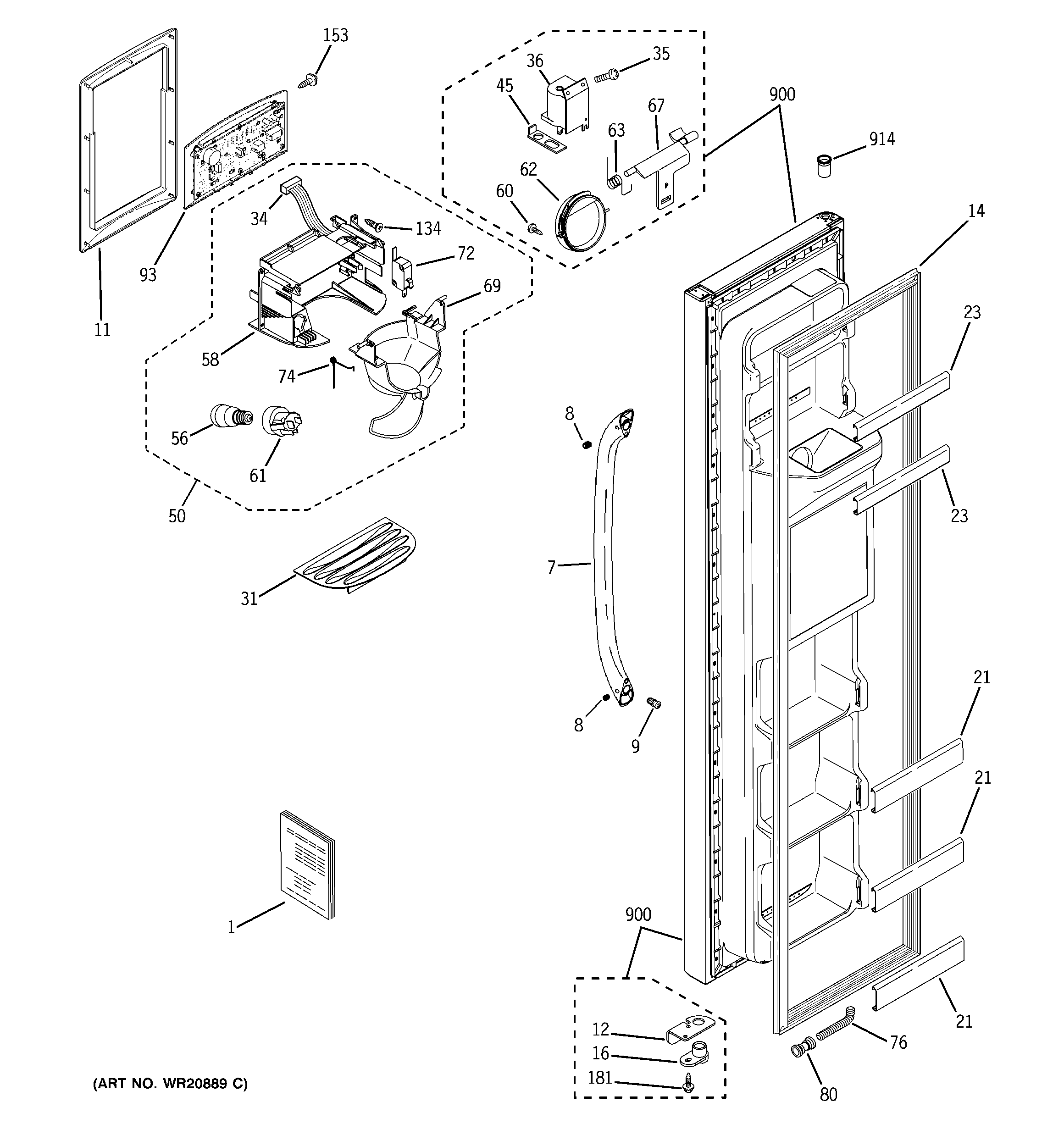

GSH22JGDD CC FREEZER DOOR

Products

PositionProduct
1PM GUIDE OWNERS
1PM MINI MANUAL WIRING
7TUBULAR HANDLE ASM
8GEN WR01X11056
9FASTENER HANDLE
11RECSS TRM BQ
12PLATE DOOR STOP FF
14WR24X10302 GE Refrigerator Door Gasket
16GEN WR02X11478
21WR17X12069 GE Refrigerator Front Door Shelf
23FRONT DOOR SHELF FZ
31GRILL RECESS BISQUE
34HARNESS RECESS DISP
35WR01X10649 GE Refrigerator Screw 8-10 PL PNP 1/2 S
36WR62X10055 GE Refrigerator Dispenser Door Solenoid Assembly
45WR2X8818 GE Refrigerator Retainer
56WR01X37886 GE Refrigerator Dispenser Light
58WR17X11170 GE Refrigerator Housing Shield Dispenser
60WR01X10656 GE Refrigerator Screw 4-10 PL PNP 5/16 S5H
62WR17X11653 GE Refrigerator Ice Door Flap Assembly
63WR02X10585 SPRING RECES
67WR17X10706 GE Refrigerator Door Crank Recess
69WR17X11269 GE Refrigerator FunnelL Ice Bisque Display BIS
72WR23X10783 GE Refrigerator Dispenser Micro Switch
74GEN WR02X10584
76GEN WR02X8933
80WR02X11330 GE Refrigerator 5/16 Union Water Line Connector
93WR55X23240 GE Refrigerator Combined HMI Assembly CC 22/25'
134WR01X10616 GE Refrigerator Screw 6-10 PL FLP 1/2 S
153WR1X1505D GE Refrigerator Screw Package of 12
181SCR 10-32 F HXW 3/4 S
181WZ04X10001 GE Screw 10-32 GX HXWS 9/16"
900DOOR ASM FOAM FZ
914GEN WR01X10200
